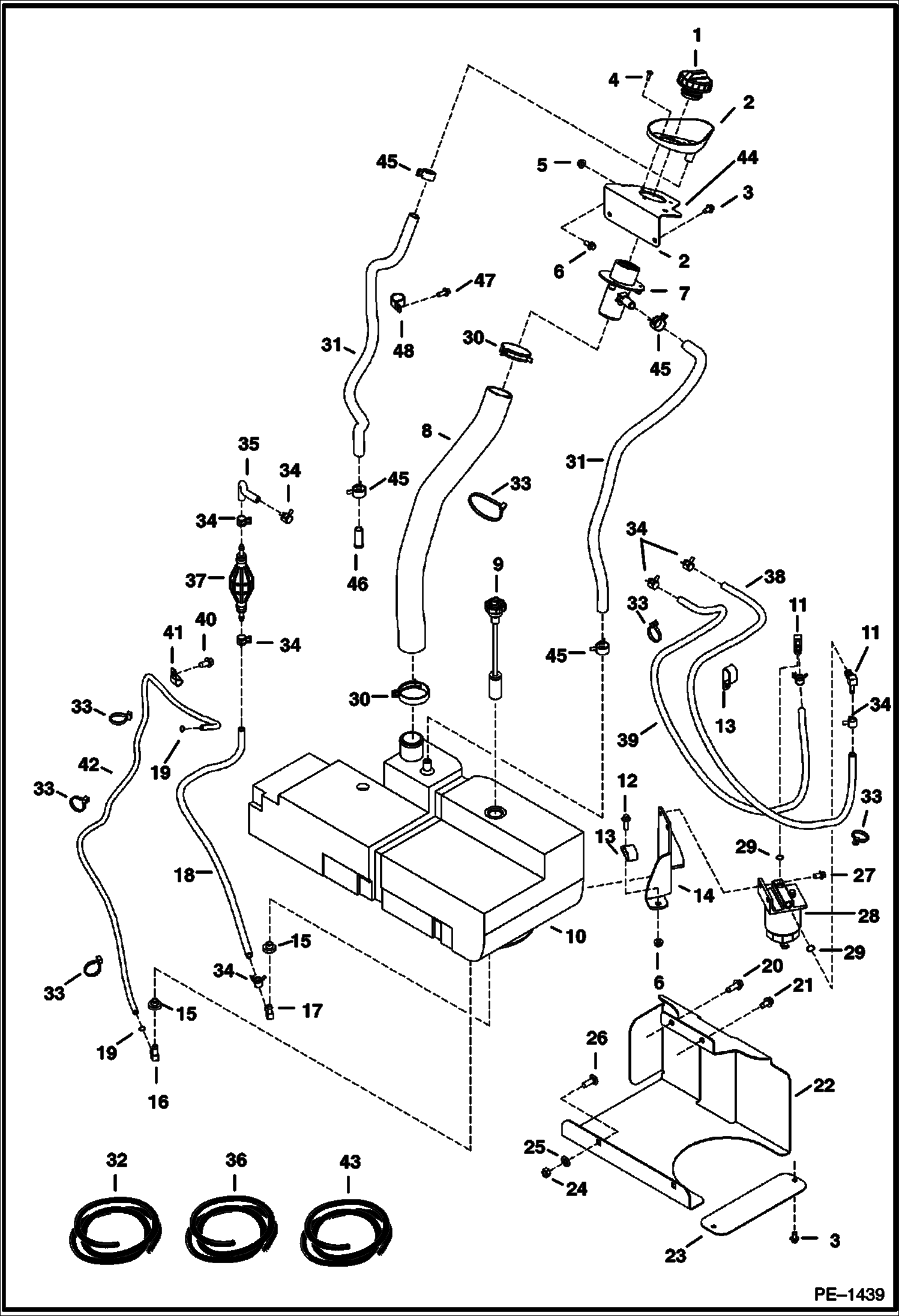

Запчасти Bobcat 320 FUEL SYSTEM (S/N 223811796 & Above, 223513018 & Above, 223911001 & Above, 224011001 & Above) POWER UNIT

1

6661114

CAP. DIESEL Was 6665423 - A

2

6809964

GUARD Was 6807251 - A

3

26GM8016

SCREW

4

7106279

BOLT Self tapping - Was 6706517 - A

5

29CM816

SCREW Was 29GM-816 - D

6

51DM8

NUT

7

6701449

FILLER TUBE

8

6810209

HOSE Was 6807252 - A

9

7179838

SENSOR FUEL Was 6680437 - A

9

6717579

GASKET

10

6806578

TANK

11

6715183

ELBOW W/Ref. 29- check boss face for correct replacement ring

12

29CM825

BOLT

13

31H38

CLAMP Was 30HJ00608B - B

14

6807425

SUPPORT

15

6553411

BUSHING 0.38'' ID

16

6630041

ELBOW

17

6553412

ELBOW Was 6633412 - D

18

HOSE NLA - use 35'' (889mm)of Ref. 36

19

42HS04

CLAMP, HOSE Was 6515575 - B

20

26GM10030

BOLT

21

26GM10020

BOLT

22

6807175

SUPPORT

23

6807889

COVER

24

4DM10

NUT Was 51DM00010B - B

25

6674264

RETAINER NUT

26

28CM1030

BOLT

27

29CM820

SCREW

28

6667353

FILTER ASSY Assy.

28

6667352

FILTER, FUEL W/SEPARATOR 12

28

6658180

PLUG, BLEED

29

99K5

O-RING tapered boss face

29

79K5

O RING 10 flat boss face

30

5HM58

CLAMP

31

HOSE NLA - use 31'' (788mm) of Ref. 32

32

6578172

HOSE bulk - sold per foot

33

6624289

STRAP, TIE

34

5HM14

CLAMP

35

HOSE NLA - use 5'' (127mm) of Ref. 36

36

6577822

HOSE bulk - sold per foot

37

6667170

PUMP 193 mm (7.6'') long

38

HOSE NLA - use 44'' (1118mm) of Ref. 36

39

HOSE NLA - use 48'' (1220mm) of Ref. 36

40

26GM10020

BOLT

41

30H31

CLAMP 10

42

HOSE NLA - use 63'' (1601mm) of Ref. 43

43

6578169

HOSE bulk - sold per foot - 0.19'' ID

44

6810161

PLATE

45

5HM23

CLAMP

46

6810542

HOSE

47

26GM8020

SCREW

48

30H29

CLAMP
