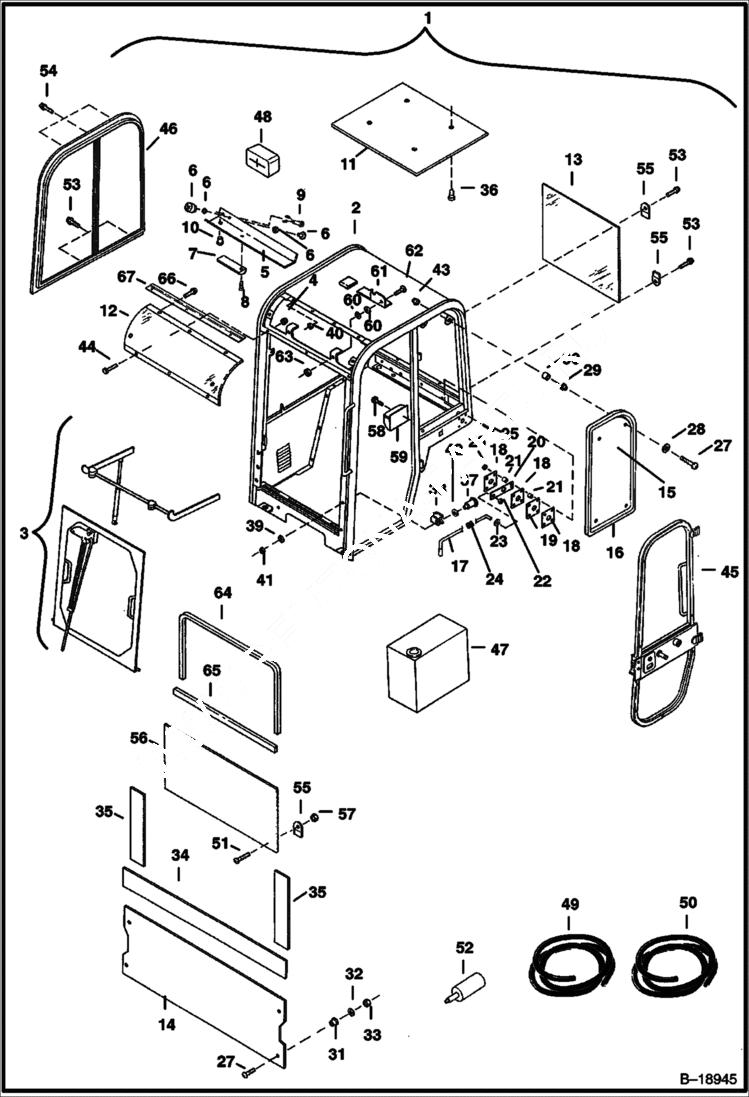

Запчасти Bobcat 320 OPERATOR CAB MAIN FRAME

1

CAB ASSY See Illustration OPERATOR CAB/ D2320 See Illustration OPERATOR CAB/ D2314 See Illustration HEATER/ C3340 See Illustration OPERATOR CAB/ E2379 SALES - W/Refs. 2-48

2

CAB NLA - Weldment - Order complete Cab Assy. from Gwinner Sales - Was 628839 - A

3

WINDOW See Illustration OPERATOR CAB/ D2251 front

4

6664103

NUT Acorn #10

5

6628898

PLATE Was 6664564 - A

6

6669315

SWITCH Wiper/Washer - Was 6665398 - A

7

6664084

LIGHT

7

6665367

BULB Was 6655055 - A

8

6664049

SCREW Dome Light Mounting

9

6513469

HOLDER Was 6654166 - A

9

6656270

FUSE 5 amp.

10

6648358

GROMMET

11

6628899

INSULATION Headliner - Was 6664161 - A

12

6806131

WINDOW Curved - Was 6664176 - A

13

6664172

WINDOW Rear - Seal - Use W/Ref. 52

14

6664175

GLASS Lower Front - W/Mounting Holes & Notch

15

6664171

GLASS Left

16

SEAL NLA - Order Ref. 49 - 105'' (2680mm) long

17

6628900

ROD Door Release - Was 6664137 - A

18

6628902

PLATE Was 6664134 - A

19

6664146

SEAL

20

6628901

LATCH Door Hold Open - Was 6664135 - A

21

6664085

BUSHING

22

6660979

NUT Push On

23

6660980

RETAINER Push On

24

6654147

SPRING

25

6664068

BOLT 1 1/4'' long

26

7031515

NUT Acorn 1/4'' - Was 6664056 - A

27

6648410

BOLT 3/4''

28

6664090

WASHER

29

6800788

GROMMET Was 6664087 - A

30

6664086

SPACER

31

6664089

GROMMET

32

6664065

WASHER

33

7031515

NUT Acorn 1/4'' - Was 6664056 - A

34

SEAL NLA - Order Ref. 50 - 36'' (914mm) long

35

SEAL NLA - Order Ref.50 - 12'' (305mm) long

36

6664559

FASTENER Insulation

37

6664080

PIN Door Striker - W/Internal Threads

37

6649483

STRIKER BOLT Door Striker - W/External Threads - Was Was 6654170 - A

38

6664083

COVER

39

25E17

WASHER 5

40

6664562

GROMMET

41

61D7

NUT Use W/Ref. 37 - W/External Threads - Was 61D000006B - D

41

6664046

BOLT Use W/Ref. 37 - W/Internal Threads

42

6660975

GROMMET

43

6670760

GRIP

44

6657095

BOLT #10 x 1/2''

45

DOOR ASSY. See Illustration OPERATOR CAB/ E2379

46

WINDOW ASSY. See Illustration OPERATOR CAB/ C3343 right side

47

HEATER ASSY. See Illustration HEATER/ B18946

48

LIGHT NLA - Order 6668722 - Was 6664106 - A

48

6665700

SEALED BEAM For Light 6664106

48

6664106

LAMP Was 6668722 - A

48

6668721

BULB Replacement Bulb for 6668722

49

6664088

SEAL Bulk - Order Per Foot

50

6648416

SEAL BULK /FT Bulk - Order Per Foot

51

6657095

BOLT #10 x 1/2'' - Early Style Cabs

51

6801188

SCREW #10 x 1'' - Later Style Cabs

52

6654148

SEALANT Window, Rear - 10 oz. tube

53

6654152

BOLT #10 x 3/4'' long

54

6665386

SCREW #10 x 1-3/4'' long

55

6665366

RETAINER Glass

56

6668111

WINDOW Lower Front - No Holes - No Notch

57

12D10

NUT #10

58

58G806

SCREW

59

6664075

ASH TRAY

60

6630038

WASHER Spring

61

6801032

HANDLE L.H. Shown

61

6801033

LATCH R.H.

62

6800857

BOLT

63

87D5

NUT

64

SEAL NLA - Order Ref. 49 - 56'' (1422 mm)

65

SEAL NLA - Order Ref. 49 - 33'' (838 mm)

67

6805291

BRACKET
