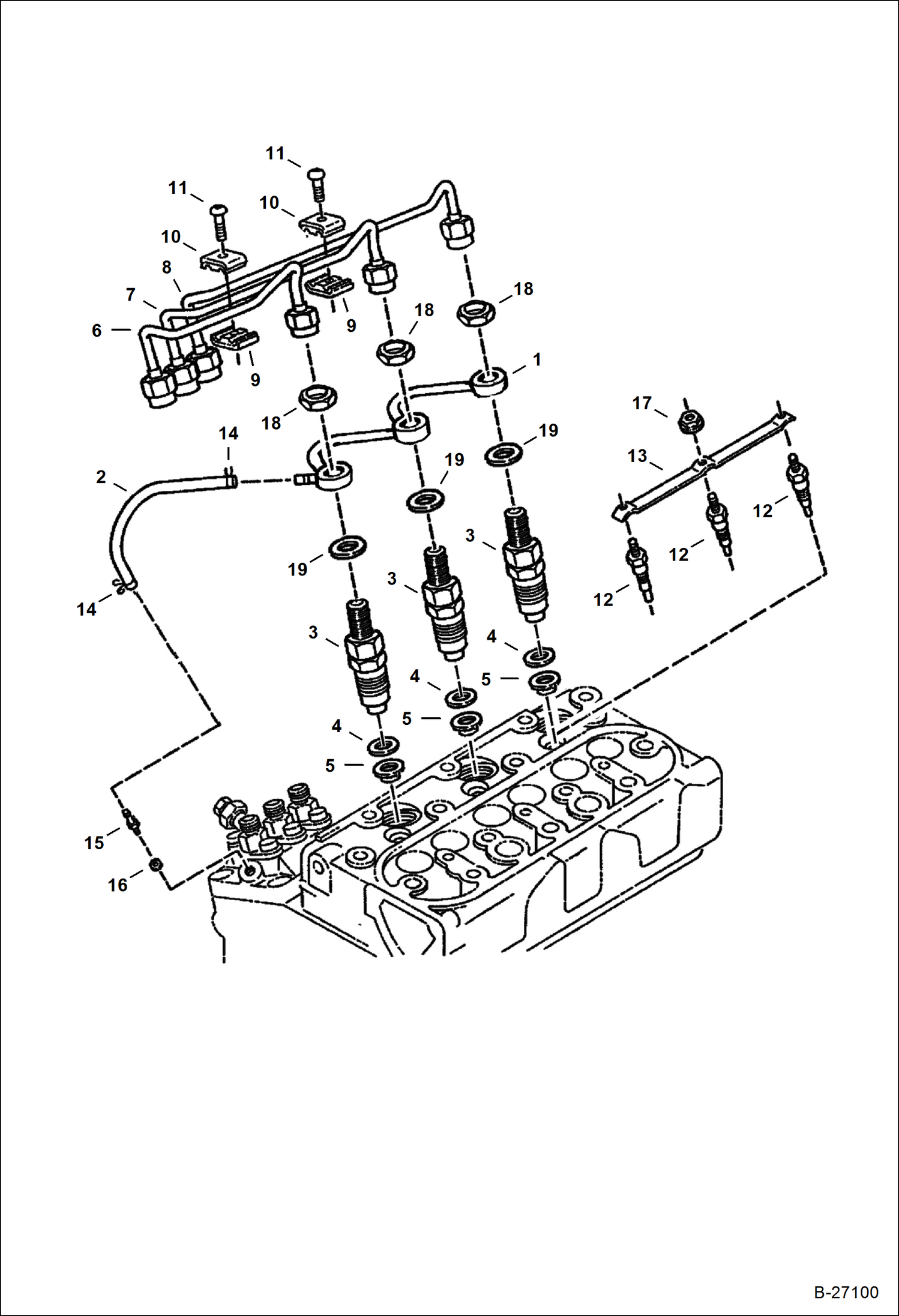

Запчасти Bobcat 320 INJECTOR NOZZLES (Kubota D722-EB-MELROE-1) POWER UNIT

1

6670463

PIPE injector return

2

6670464

HOSE overflow - W/Ref. 13

3

NOZZLE HOLDER See Illustration NOZZLE HOLDER/ B14862 - Was 6670465 - B

5

6655872

HEAT SEAL See Illustration UPPER GASKET KIT/ B16471 - heat - included w/lower gasket kit

6

6670467

PIPE

7

6670468

PIPE

8

6670469

PIPE

9

6652688

CLAMP

10

6652689

CLAMP

11

3974260

SCREW

12

6670470

GLOW PLUG

13

6670471

WIRE

14

6654718

CLAMP pipe - Was 6680795 - A

15

6657446

SCREW

16

3974972

GASKET

17

6670472

NUT

18

6657460

NUT

19

6657463

WASHER
