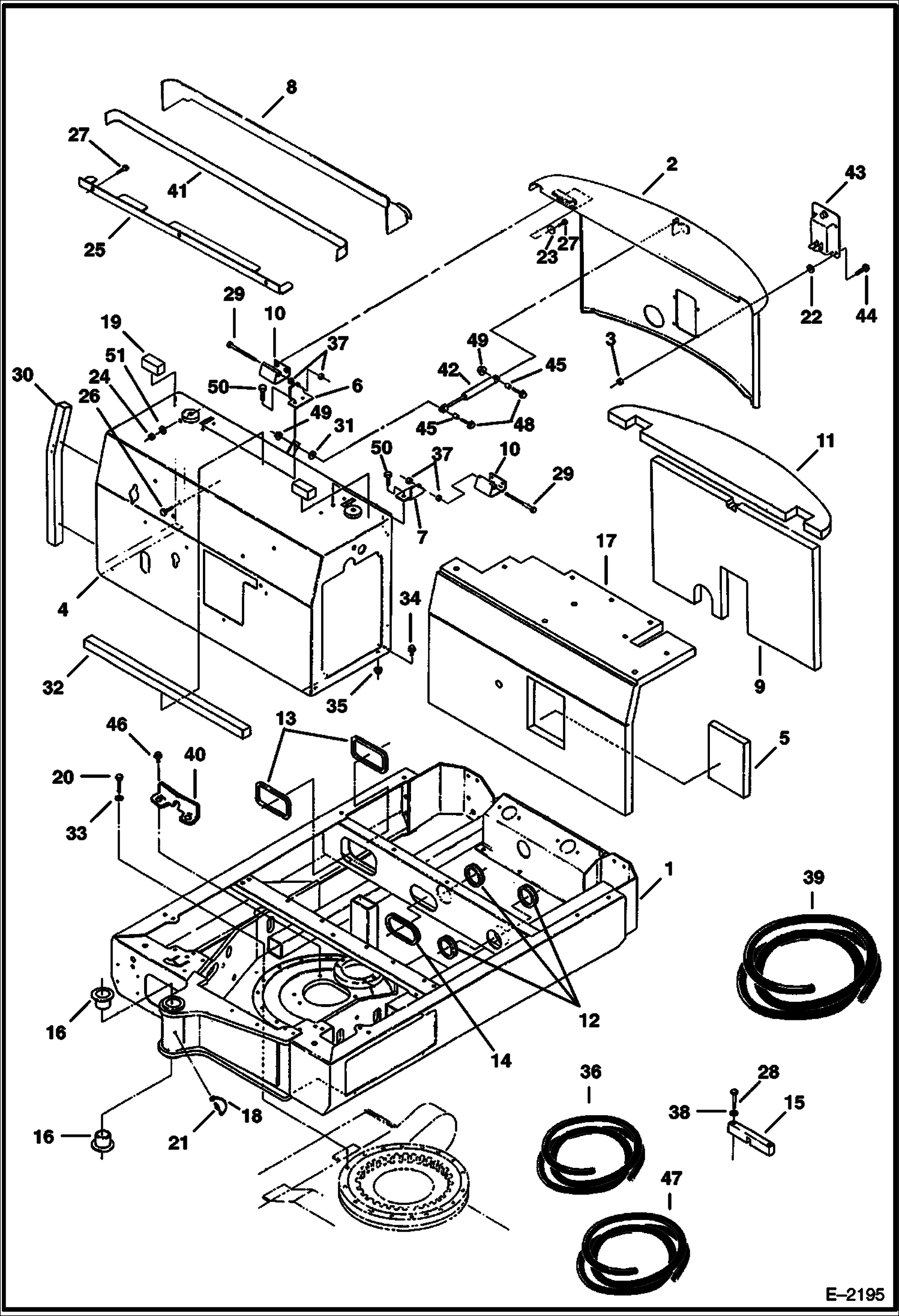

Запчасти Bobcat 320 UPPERSTRUCTURE & ENGINE COVERS MAIN FRAME

1

6587936

FRAME Upperstructure

1

6589989

FRAME Upperstructure

2

6587891

COVER Engine rear

3

49DM10

NUT

4

6589936

COVER Engine Front - Was 6589029 - A

5

6588339

INSULATION

6

6589033

ANGLE R.H.

7

6589032

ANGLE L.H.

8

6588070

COVER

9

6588340

INSULATION

10

6588133

HINGE

11

6588341

INSULATION

12

6512067

GROMMET Was 6533975 - A

13

MOULDING NLA - Order Ref. 36 - 18'' (457mm) long

14

MOULDING NLA - Order Ref. 36 - 12'' (305mm) long

15

6538801

STOP Swivel Joint - Use W/Swivel

16

6539897

BUSHING

17

6588342

INSULATION

18

6652943

COVER grease fitting

19

SEAL NLA - Order Ref. 39 - 3'' (76 mm) long

20

10CM1045

BOLT

21

10H25

FITTING, GREASE 5

22

15EM60

WASHER

23

17EM80

WASHER

24

39DM12

NUT

25

6588648

SUPPORT

26

1CM1630

BOLT

27

26GM8016

SCREW Was 1CM00820B - B

28

1CM845

BOLT

29

1CM890

BOLT

30

SEAL NLA - Order Ref. 39 - 20'' (508 mm) long

31

1EM80

WASHER Not used on later models

32

SEAL NLA - Order Ref. 39 - 28'' (711 mm) long

33

27E6

WASHER 5

34

29CM1020

BOLT

35

42DM10

NUT

36

MOULDING NLA - bulk - sold per foot - Was 6620417 - A

37

1DM8

NUT

38

6EM80

WASHER, SPRING

39

6554274

INSULATION Bulk - Sold Per Foot

40

6588243

BRACKET Swivel Joint - Use W/Swivel Joint 6664409

41

TAPE NLA - Order Ref. 47 - Double Backed - for attaching Ref. 8 to the cab/canopy - 48'' (1220 mm) long

42

6662989

CYLINDER Gas Spring

43

6663972

LATCH

43

6587458

KEY Incl. W/Ref. 43

44

6587499

SCREW Use on Early Models

44

6589675

SCREW Use on Later Models

45

6588293

BUSHING

46

29CM820

SCREW

47

6900669

TAPE Bulk - Sold Per Foot - Was 6665212 - A

48

29CM830

CAPSCREW

49

42DM8

NUT

50

26GM10020

BOLT

51

1EM120

WASHER
