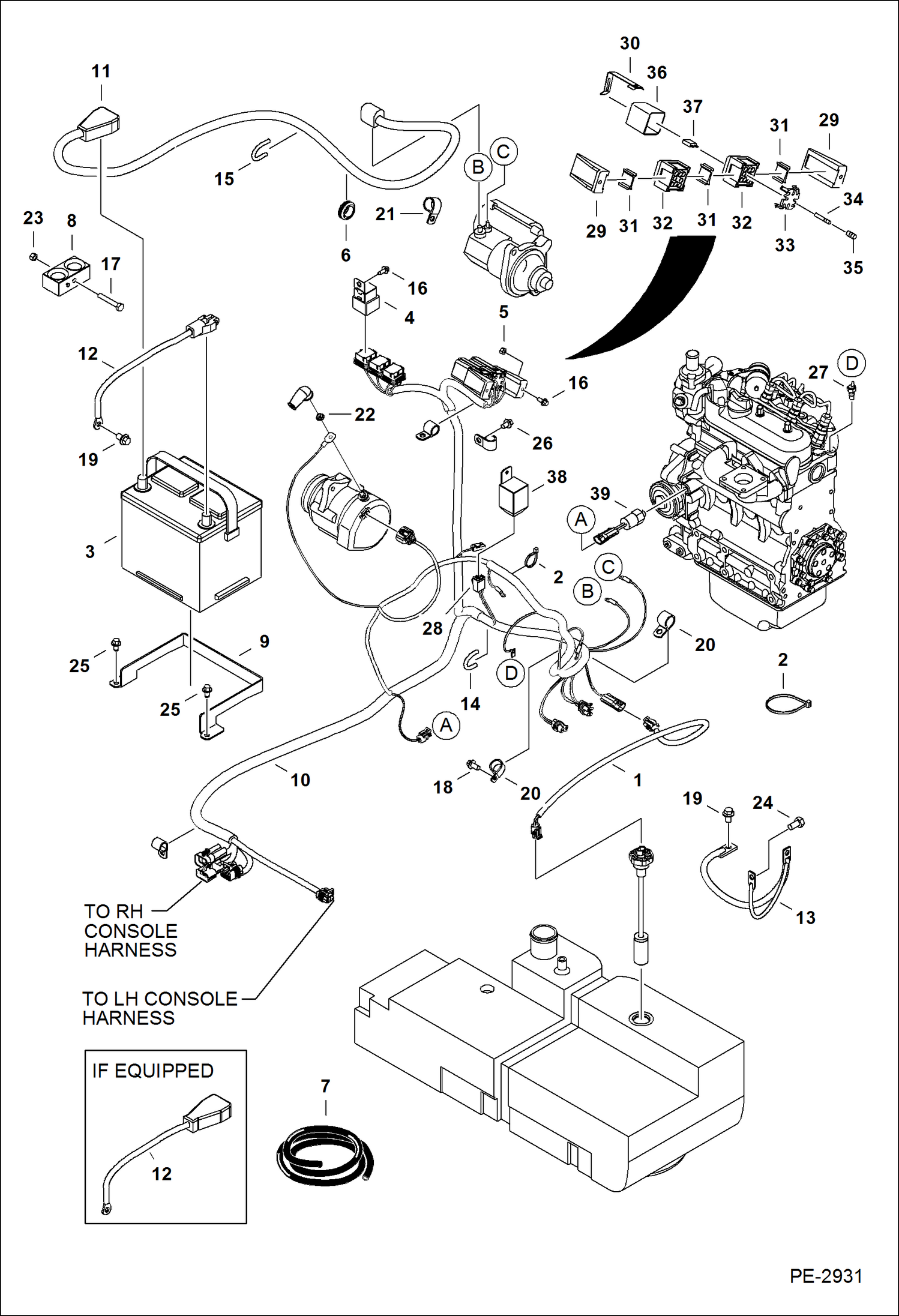

Запчасти Bobcat 320 ELECTRICAL ELECTRICAL SYSTEM

1

6587177

HARNESS fuel sender

2

6610510

TIE

3

6669600

BATTERY

4

6670312

SWITCH, MAGNETIC relay

5

6676238

LIGHT

6

6676508

GROMMET

7

6578657

TUBE bulk - sold per foot

8

6715197

CLAMP

9

6806991

BRACKET

10

6807426

HARNESS

11

6807430

CABLE positive

12

6807431

CABLE negative

13

6807489

CABLE (BATTERY) negative

14

TUBE NLA - 4.5''(115mm) long - Order Ref 29

15

TUBE NLA - 3.5''(89mm) long - Order Ref 29

16

6810157

BOLT

17

1CM850

BOLT

18

29CM816

SCREW

19

29CM1016

BOLT

20

30H46

CLIP

21

30H55

CLIP

22

43DM6

NUT

23

53DM8

NUT

24

5CM1020

SCREW

25

26GM8016

SCREW

26

29CM812

BOLT

27

6671584

SENDER eng. temp. - spade connector

28

6567537

DIODE

28

3675725

DIODE

29

6665369

MOUNT fuse

30

6708437

CLIP spring

31

6665411

WEDGE red

32

6665356

BLOCK W/green square seal

32

6665356

BLOCK W/green square seal

33

6665357

LOCK yellow

34

6650107

SEAL

35

PIN NLA - Female-Order 6668719 Pin for 16ga wire & 6668720 Pin for 14ga

36

6665358

COVER , FUSE

37

6707620

FUSE, 10A MINI 5

37

6707621

FUSE, 15A MINI 5

37

6707622

FUSE, 20A MINI 5

38

6670872

TIMER fuel shutoff

39

6676053

SWITCH pressure
