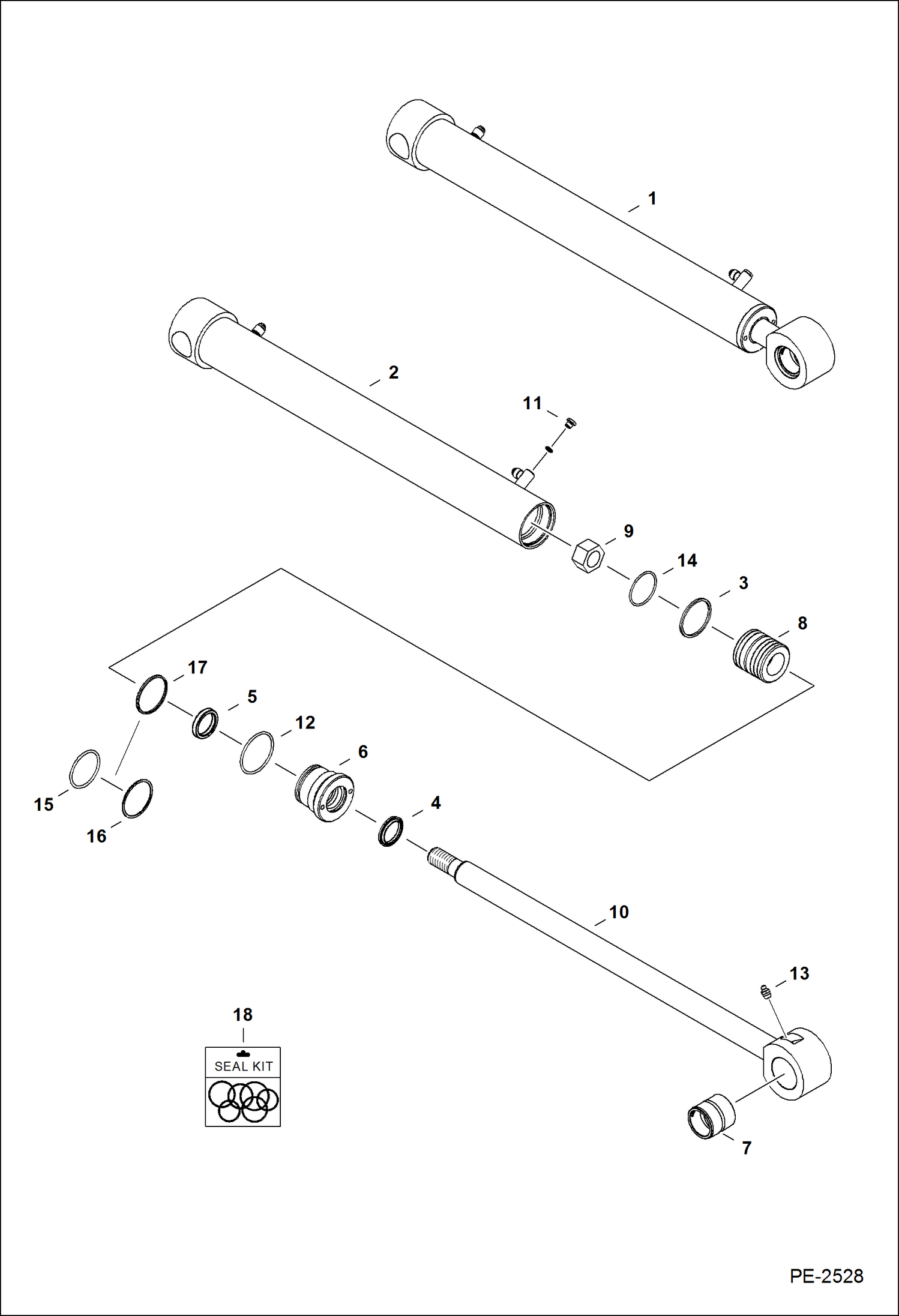

Запчасти Bobcat 320 SWING CYLINDER HYDRAULIC SYSTEM

1

PUMP See BTIE-064 - NLA - W/Ref. 2-24 - Was 6669649 - A

1

CYLINDER NLA - Ref. 2 - 15 - Also order Ref. 16 - order 6810486 - w/3/4'' rod nut - Was 6807167 - A

1

6810486

CYLINDER Ref. 2 - 15 - Also order Ref. 16 - W/7/8'' rod nut

2

6807178

HOUSING

3

6513466

PISTON RG

4

6665208

SEAL Wiper

5

6667324

SEAL

6

6801147

HEAD

7

6804060

BUSHING

8

6807249

PISTON

9

92D12

NUT for 6807167

9

92D14

NUT for 6810486

10

ROD NLA - for 6807167 - order Ref. 1 - Was 6807170 - A

10

6810487

ROD for 6810486

11

90KV2

PLUG W/Ref. 15 (99K-3 o-ring) allen socket head - tapered boss face

11

6812170

PLUG W/Ref. 15 (75K-3 o-ring) hex head - flat boss face

11

75K3

O-RING flat boss face

11

95K3

O'RING tapered boss face - Was 99K000003B - A

12

82K236

O-RING Was 58K000236B - B

13

10H25

FITTING, GREASE 5

14

25K30226

O RING 10 Was 54K30226 - B

15

58K234

O RING 10 Was 54K40300 - B

16

73K234

BACK-UP RING Was 80K234 - A

17

7008354

SEAL, QUAD

18

6801183

SEAL KIT Ref. 3-5, 9, 12, 14, & 17 - for 6807167

18

7193330

KIT, SEAL Ref. 5, 7-13 - Was 7137968 - A
