Запчасти Bobcat 320 BOOM CYLINDER HYDRAULIC SYSTEM

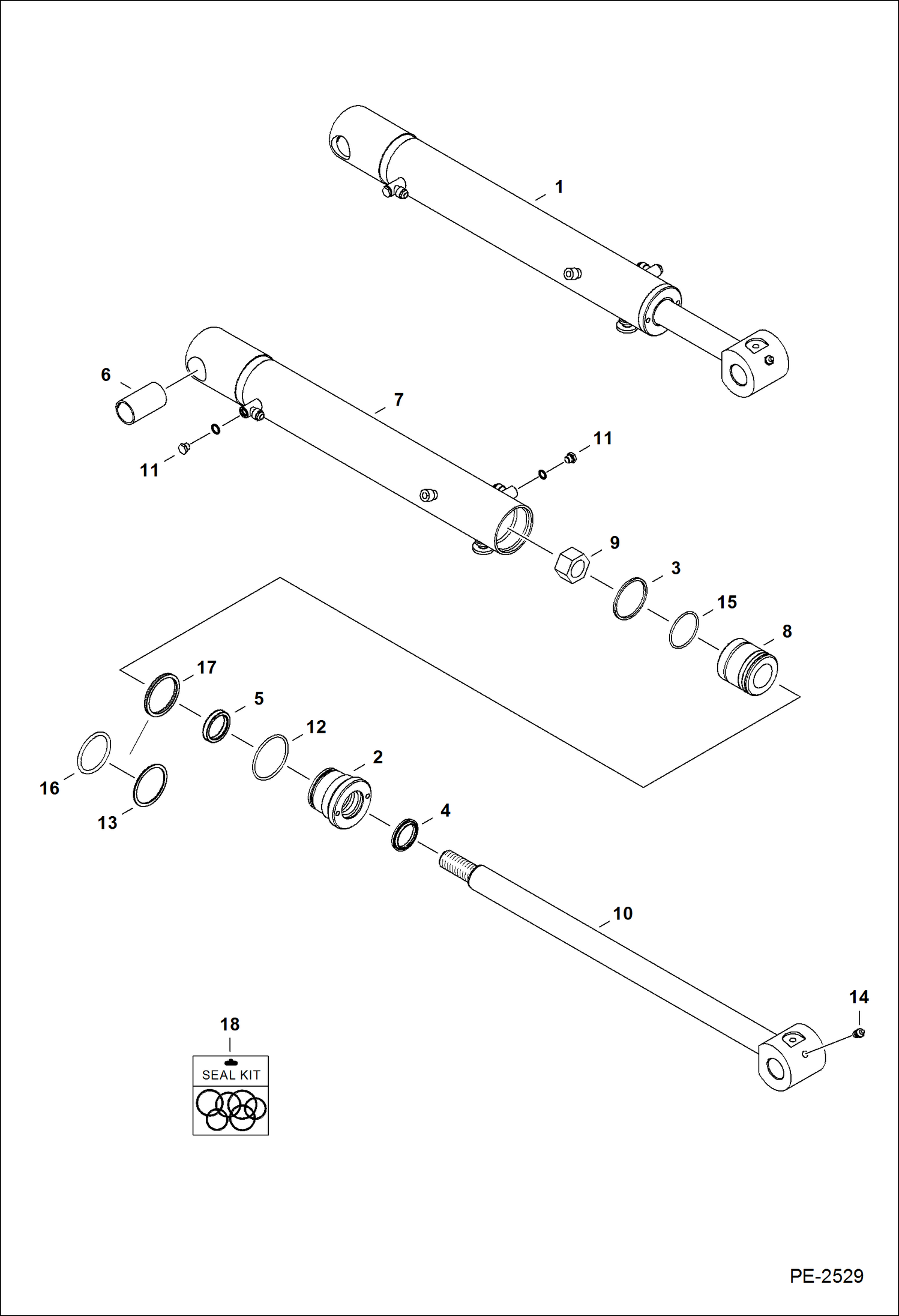

Схема запчастей Bobcat 320 - BOOM CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6812505

CYLINDER, BOOM W/Ref. 2-5, & 7-16 - Also order Ref. 6 & 14 - Was 6810443 - A

2

6586721

HEAD

3

6536642

RING

4

6666543

WIPER, ROD CYL

5

6667325

SEAL

6

6802911

BUSHING

7

6812506

HOUSING W/Ref. 12 - Was 6807161 - A

8

6807146

PISTON

9

92D16

NUT

10

6810389

ROD also order Ref. 14 - Was 6807148 - A

11

6812170

PLUG Was 90KV00002B - A

11

75K3

O-RING Was 95K3 - B,D

12

82K229

ORING Was 58K229

13

73K227

RING Back-up

14

10H25

FITTING, GREASE 5

15

25K30130

O RING 10 Was 54K30130 - B

16

25K40204

O-RING Was 54K40204 - B

17

7207224

SEAL, QUAD

18

7138015

KIT, SEAL Ref. 3-5, 9, 12, 15, 17 - Was 6809571 - A

Выбрано товаров: 19
