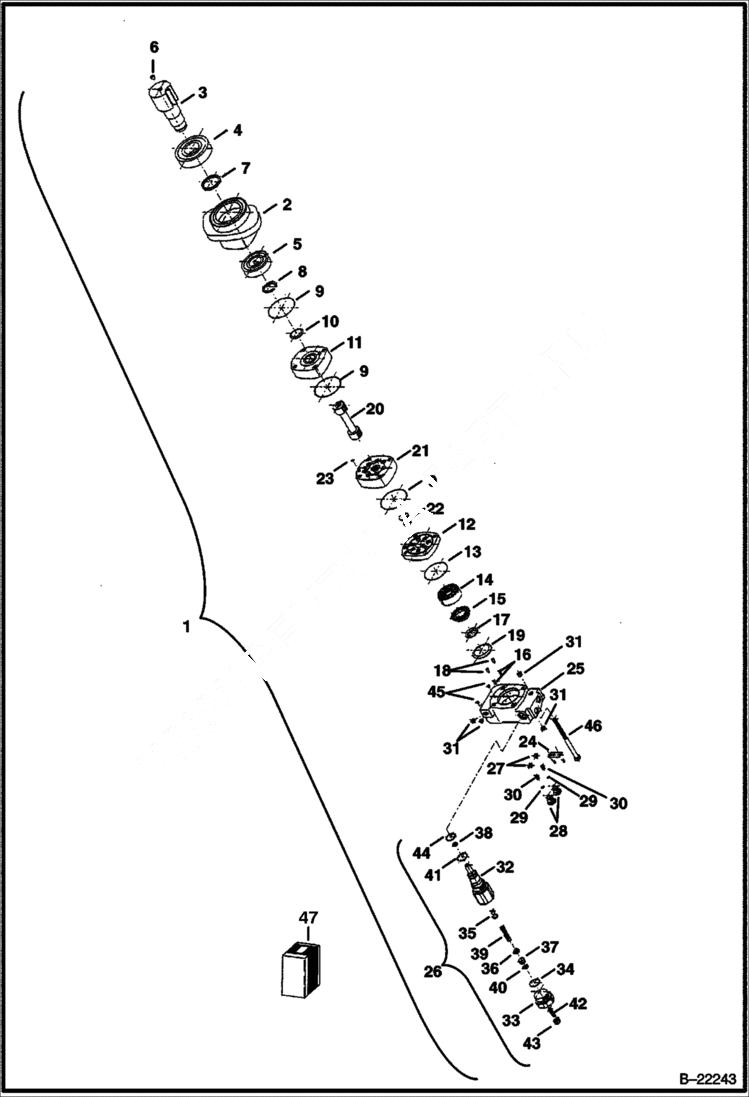

Запчасти Bobcat 320 SWING MOTOR (S/N 223813008 & Above, 223516214 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

1

6686898

MOTOR, DRIVE HYD SWING assy - Was 6682175 - A

2

HOUSING NSS - Was 6685139 - A

3

GEAR NSS - Was 6684140 - A

4

BEARING NSS - Was 6658752 - A

5

6653283

BEARING

6

PLUG NSS - Was 6653303 - A

7

X-RING NSS - Order Ref. 47 - Was 6684141 - A

8

6653295

RING retaining

9

O-RING NSS - Was 6653296 - A

10

SEAL NSS - Was 1992098B - A

11

PLATE NSS - Was 6684142 - A

12

PLATE NSS - Was 6684143 - A

13

O-RING NSS - Was 6653297 - A

14

VALVE NSS - Was 6684144 - A

15

RING NSS - Was 6684145 - A

16

SPRING NSS - Was 1992088B - A

17

SEAL NSS - Was 6653299 - A

18

PIN NSS - inner - Was 1992102B - A

19

SEAL NSS - outer - Was 6653300 - A

20

DRIVE NSS - Was 6684146 - A

21

GEROLER NSS - Was 6684147 - A

22

VALVE DRIVE NSS - Was 1992084B - A

23

O-RING NSS - Order Ref. 47 - Was 6653289 - A

24

NAME PLATE NSS

25

VALVE NSS - housing

26

CARTRIDGE NSS - Was 6684149 - A

27

BALL NSS - steel

28

PLUG NSS

29

O-RING NSS - Order Ref. 47 - Was 6653305 - A

30

SPRING NSS

31

PLUG NSS

32

CARTRIDGE NSS

33

SCREW NSS

34

O-RING NSS - Order Ref. 47 - Was 6684150 - A

35

VALVE NSS - needle

36

SPRING NSS

37

PLUG NSS

38

PLUG NSS - orifice

39

SPRING NSS

40

O-RING NSS - Order Ref. 47 - Was 6684151 - A

41

O-RING NSS - Order Ref. 47 - Was 6653307 - A

42

SCREW NSS - set - hexagon socket

43

NUT NSS - hexagon

44

O-RING NSS - Order Ref. 47 - Was 6684152 - A

45

PLUG NSS - Was 6684153 - A

46

BOLT NSS - Was 6684154 - A

47

6684155

SEAL KIT complete
