Запчасти Bobcat 320 VALVE SECTION (Auxiliary) (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

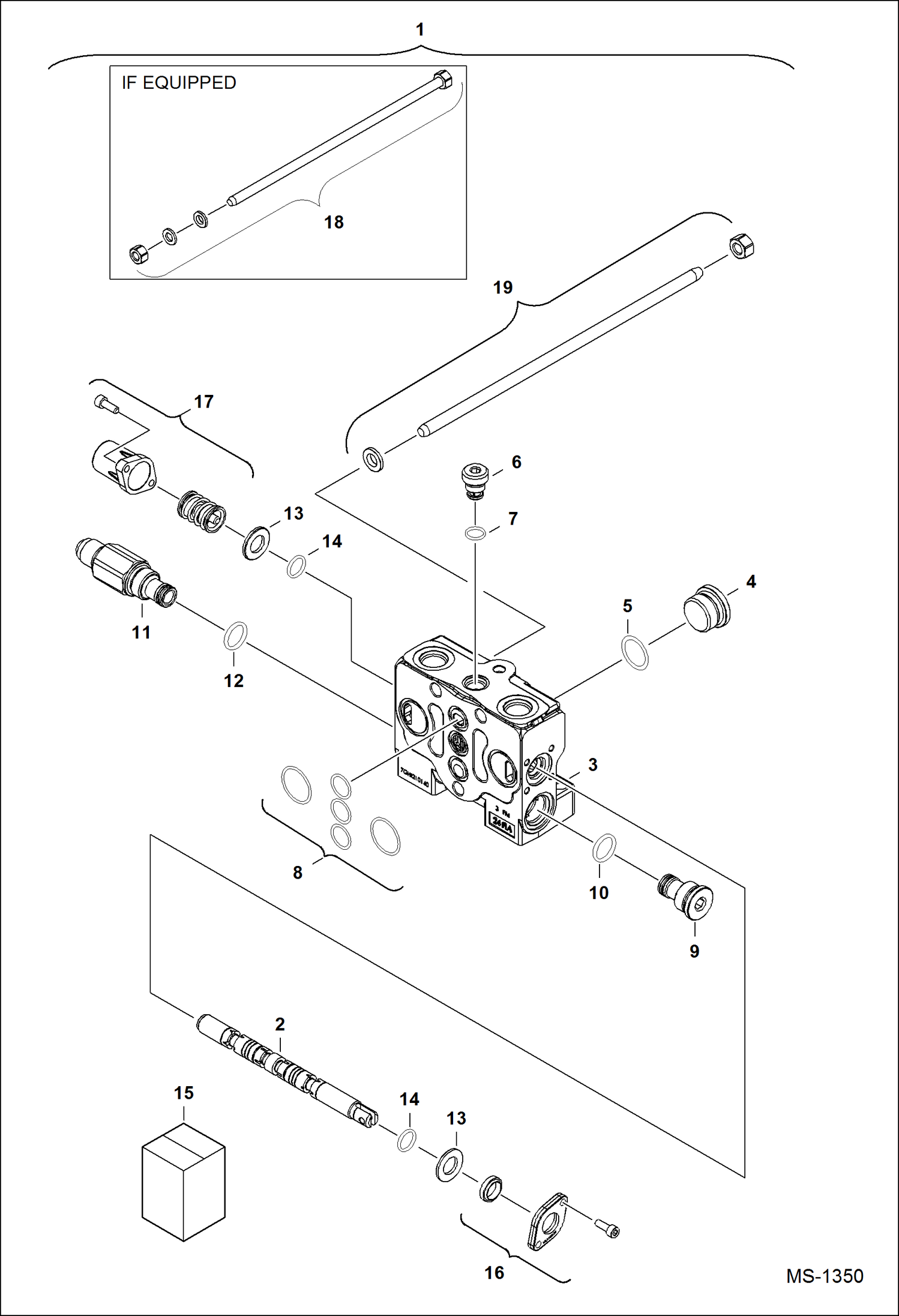

Схема запчастей Bobcat 320 - VALVE SECTION (Auxiliary) (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6680086

VALVE assy - W/Ref. 2 - 17

2

SPOOL NSS - order Ref. 1

3

BLOCK NSS - order Ref. 1

4

6680058

PLUG assy - W/Ref. 5

5

O-RING

6

6680092

VALVE, LOCK LOAD

7

O-RING

8

6680066

KIT

9

6680057

PLUG assy - W/Ref. 10

10

O-RING

11

6680059

VALVE assy - W/Ref. 12

12

O-RING

13

SEAL NSS

14

O-RING NSS

15

6680131

SEAL KIT section

16

6680097

KIT

17

6680068

KIT

18

6680087

KIT w/washers, nuts & bolts

Выбрано товаров: 18
