Запчасти Bobcat 320 VALVE SECTION (R.H. Travel) (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

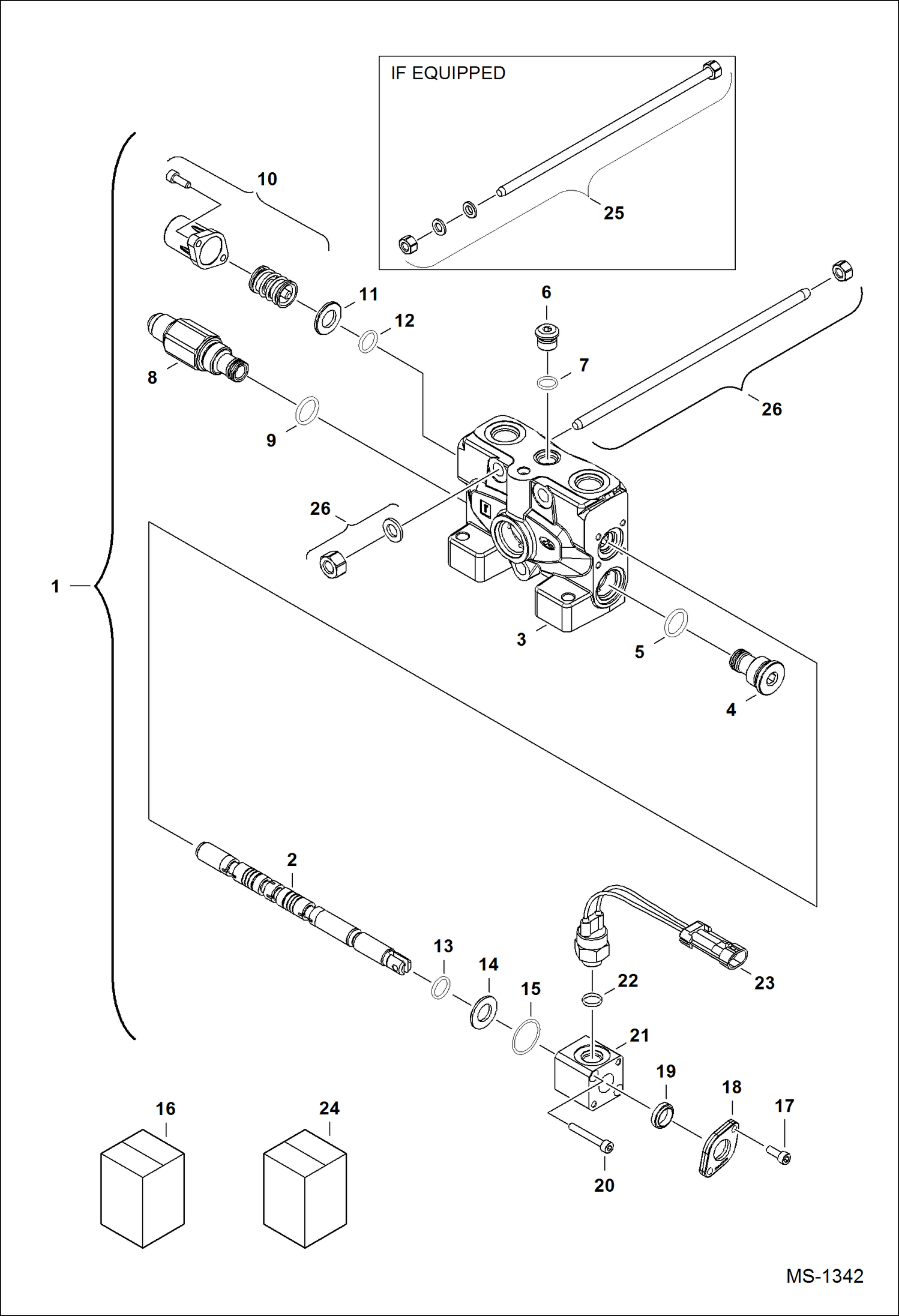

Схема запчастей Bobcat 320 - VALVE SECTION (R.H. Travel) (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6683914

VALVE section assy - Ref. 2 - 23 - Was 6680037 - D

2

SPOOL NSS - order Ref. 1

3

BLOCK NSS - order Ref. 1

4

6680057

PLUG assy - W/Ref. 5

5

O-RING

6

6680093

PLUG assy - W/Ref. 7

7

O-RING

8

6680059

VALVE assy - W/Ref. 9

9

O-RING

10

6680068

KIT

11

SEAL NSS - order Ref. 12

12

O-RING NSS

13

O-RING NSS

14

WASHER NSS

15

O-RING NSS

16

6680123

SEAL KIT section

17

SCREW NSS - order Ref. 24

18

COVER NSS - order Ref. 24

19

SEAL NSS - order Ref. 24

20

SCREW NSS - order Ref. 24

21

BLOCK NSS - order Ref. 24

22

6679605

O-RING

23

6679913

SWITCH

24

6679889

SWITCH Refs. 17 - 23 - Was 6680072 - D

25

6680087

KIT includes bolts, washers & nuts

Выбрано товаров: 25
