Запчасти Bobcat 320 VALVE SECTION (L.H. Travel) (S/N 223812346 & Below, 223514376 & Below) HYDRAULIC SYSTEM

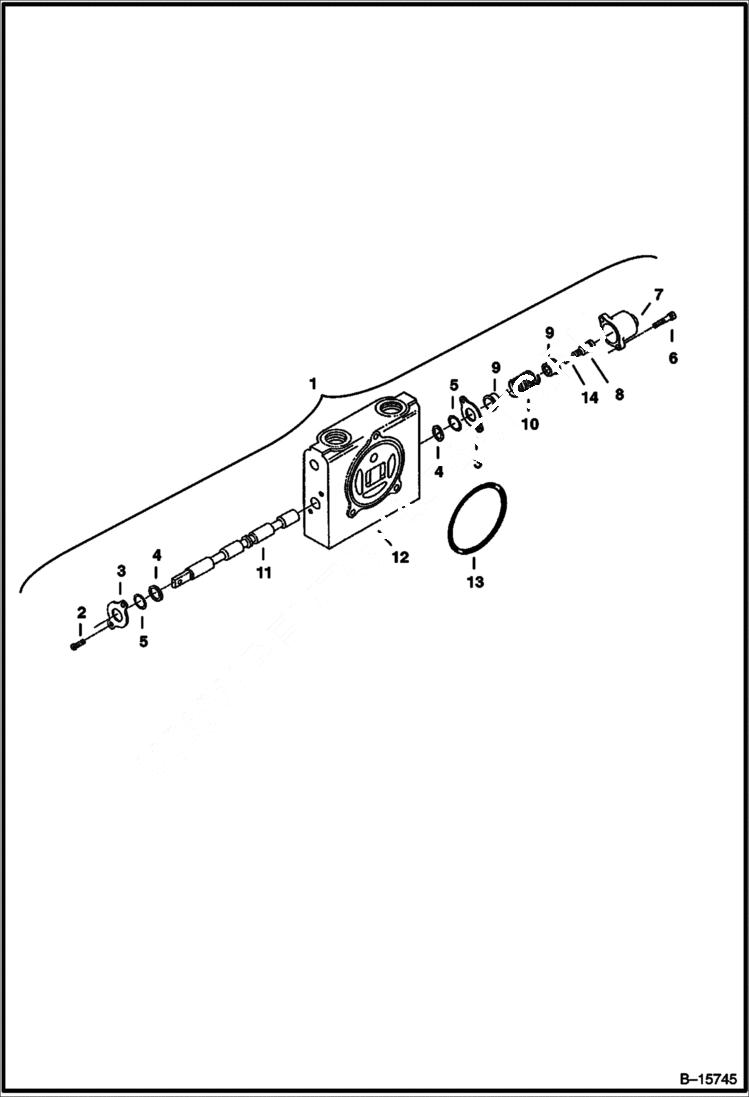

Схема запчастей Bobcat 320 - VALVE SECTION (L.H. Travel) (S/N 223812346 & Below, 223514376 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6676356

VALVE Section - LH Travel - W/Refs. 2-20

2

6671684

SCREW

3

948016

PLATE

4

6668972

O-RING

5

948021

SEAL wiper

6

73G412

SCREW Was 11G-412 - B

7

948192

CAP

8

BOLT NLA - order 6679106 bolt, 6668963 spring seat & 6678108 seat - Was 948019 - A

8

6679106

BOLT

9

SEAT NLA - Spring - order 6679106 bolt, 6668963 seat & 6669108 seat

9

6668963

SEAT Spring - yellow

9

6679108

SEAT Spring - blue

10

948018

SPRING

11

SPOOL NSS - Order Ref. 1

12

HOUSING NSS - Order Ref. 1

13

58K228

O RING 10 Was 6646691 - B

14

6676357

SPACER

Выбрано товаров: 17
