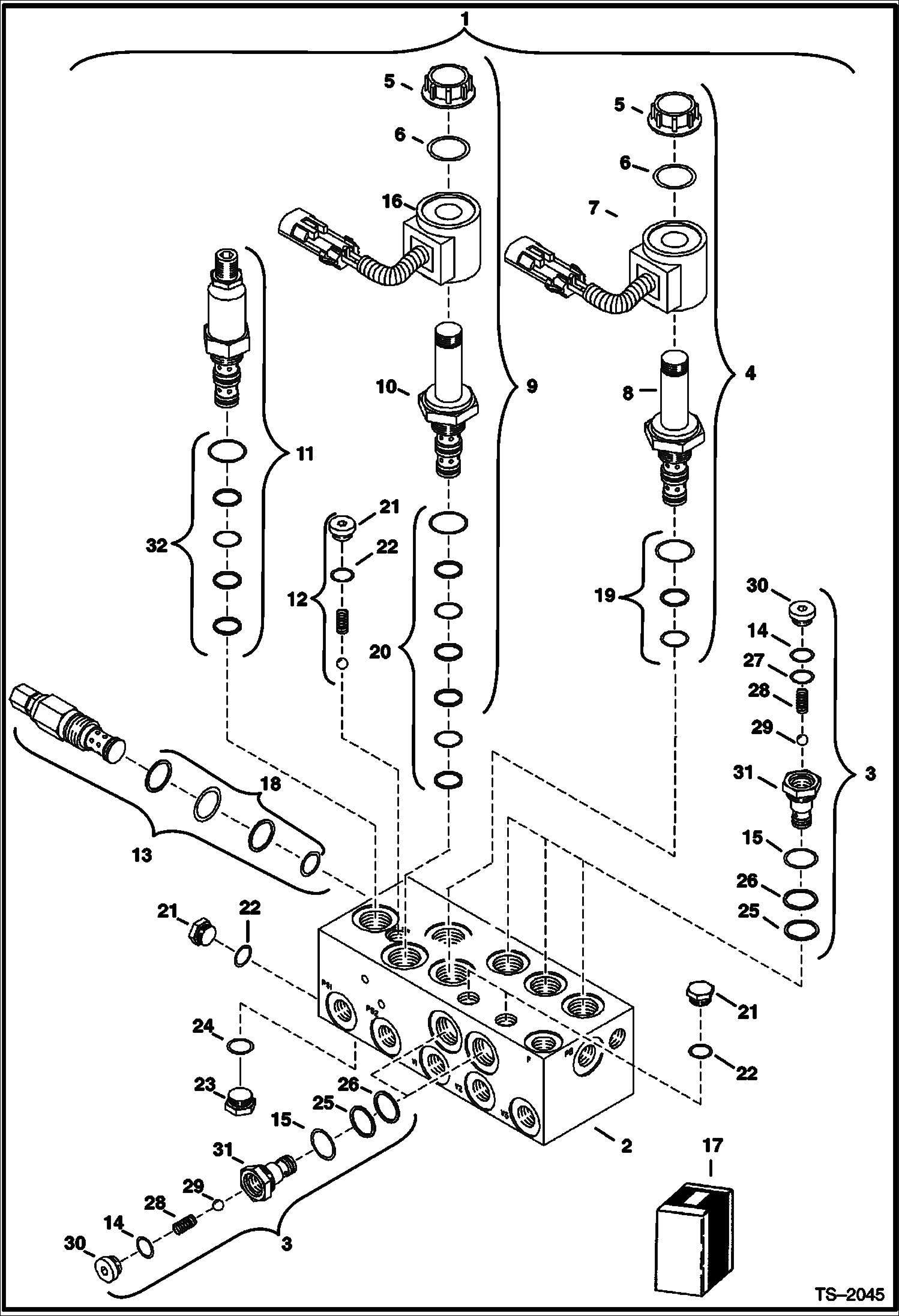

Запчасти Bobcat 320 MANIFOLD ASSY (S/N 223811991 & Below, 223513430 & Below) HYDRAULIC SYSTEM

1

See Illustration MANIFOLD ASSY/ MS1400 - NLA - Ref. 2-15 - Order 6678059 manifold - Was 6675518 - A

2

BLOCK See Illustration MANIFOLD ASSY/ MS1400 - NLA - Order 6678059 manifold - Was 6675988 - A

3

6675983

VALVE check

4

6675993

VALVE assy (two speed/system by-pass) - W/Ref. 5-8 & 19

5

6675359

NUT W/O-ring, Ref. 6

6

O-RING NSS - Order Ref. 5

7

6675351

COIL

8

6675984

SOLENOID

9

6675994

VALVE assy (joystick lock-out) - W/Ref. 5, 6, 10, 16 & 20

10

6675352

SOLENOID

11

6675350

VALVE pressure reducing

12

6675348

VALVE check

13

6675659

VALVE relief

14

O-RING NSS - Order Ref. 17

15

O-RING NSS - Order Ref. 17

16

6675351

COIL

17

6675985

SEAL KIT Includes Ref. 14, 15, 25, 26

18

6659574

SEAL KIT

19

6675986

SEAL KIT

20

6675353

SEAL KIT Was 6675987 - A

21

PLUG NSS - W/Ref. 22 - Order Ref. 12- Was 90KV00003B - B

22

95K4

O-RING

23

90KV5

PLUG

24

95K6

O'RING

25

BACK-UP RING NSS - Order Ref. 17

26

O-RING NSS - Order Ref. 17

27

BACK-UP WASHER NSS - Order Ref. 3

28

SPRING NSS - Order Ref. 3

29

BALL NSS - Order Ref. 3

30

PLUG NSS - Order Ref. 3

31

BODY NSS - Order Ref. 3

32

6675354

O-RING
