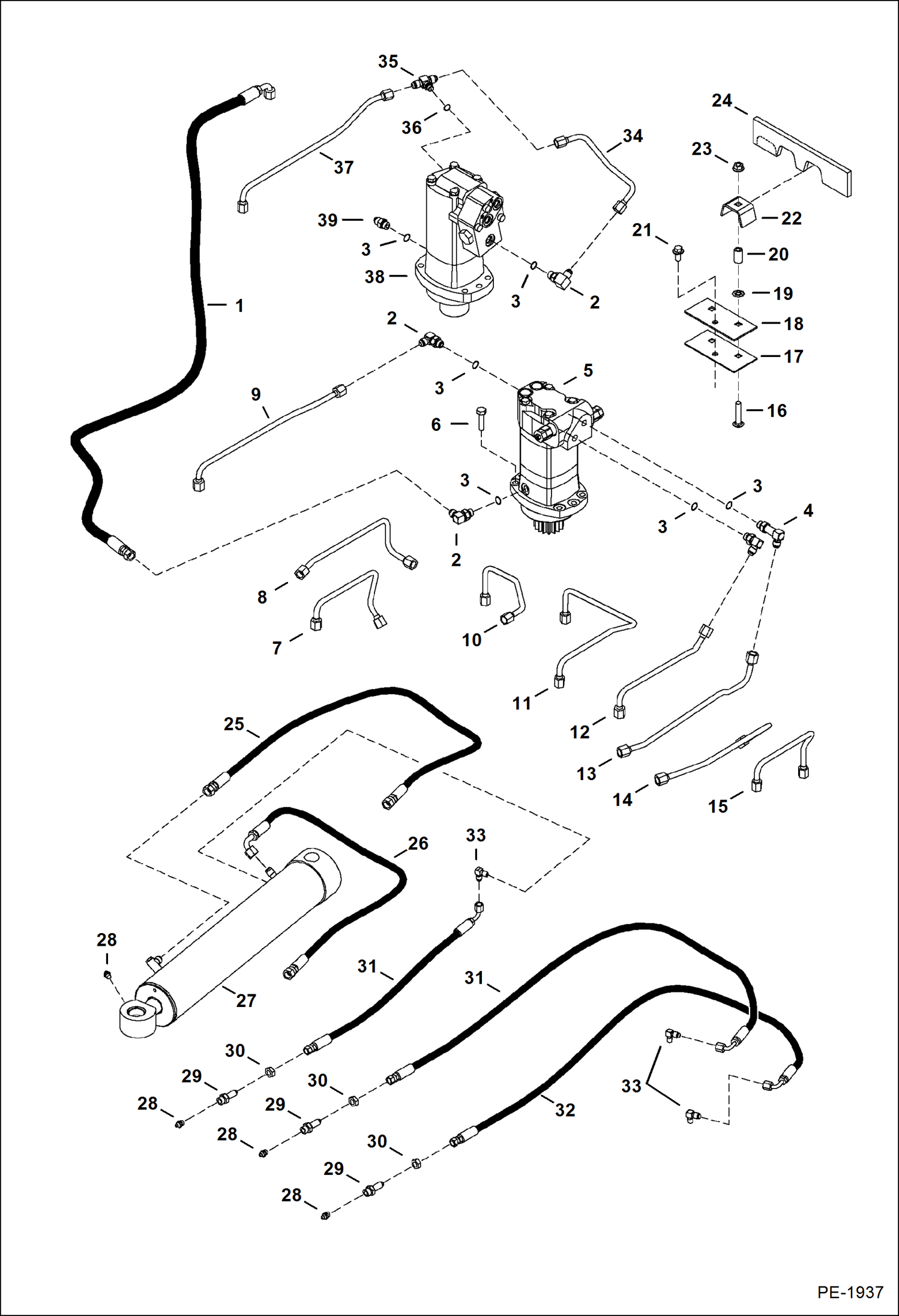

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (S/N 223812347 & Above, 223514377 & Above, 223911001 & Above, 224011001 & Above) HYDRAULIC SYSTEM

1

6807939

HOSE

2

17KB0606

FITTING Was 17KV00005B - A

2

17KB0606

FITTING Was 17KV00005B - A

3

79K6

O RING 10 flat boss face

4

6812815

FITTING W/Ref. 3 - tapered boss face - Was 6715188 - A

5

6682175

SWING MOTOR

6

53CM1040

SCREW Was 3GM01025B - B

7

6812957

TUBE RH travel - Was 6810055 - A

8

6812953

TUBE RH travel

9

6815041

TUBE

10

6810049

TUBE blade

11

6812956

TUBE blade - Was 6810048 - A

12

6815043

TUBE slew

13

6815042

TUBE slew

14

6812954

TUBE LH travel - Was 6810054 - A

15

6806805

TUBE LH travel

15

6812958

TUBE LH travel - Was 6810051 - A

16

28CM1050

BOLT

17

6807628

PLATE

18

6813924

INSULATION

19

6674264

RETAINER NUT

20

6805602

SPACER

21

29CM1020

BOLT

22

6597380

CLAMP

23

43DM10

NUT

24

7104967

INSULATION Was 6807412 - A

25

6806783

HOSE

26

6806782

HOSE

27

6810486

CYLINDER swing - Was 6807166 - A

28

10H25

FITTING, GREASE 5

29

6807184

FITTING

30

86F3

LOCKNUT

31

7106608

HOSE grease - Was 6807946 - A

32

7106609

HOSE grease - Was 6807947 - A

33

83F3

ELBOW 5 Was 83FN00003B - A

34

6806803

TUBE

35

6801405

TEE W/Ref. 3 - restricted flow - .063'' orifice

36

79K4

O RING 10

37

6810058

TUBE

38

6676397

MOTOR, SLEW

39

15KB0606

FITTING, HYD CONNECTOR
