Запчасти Bobcat 320 CONTROLS (S/N 223515748 & Above, 223812865 & Above, 2239 & Above, 2240 & Above) CONTROLS

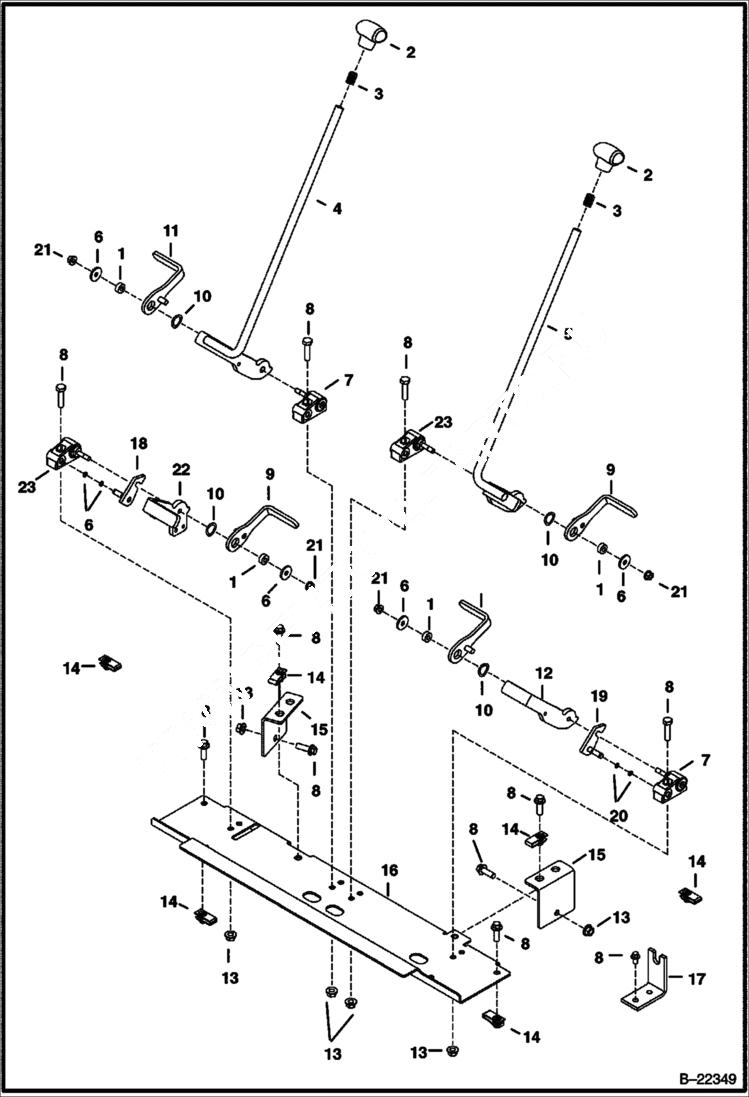

Схема запчастей Bobcat 320 - CONTROLS (S/N 223515748 & Above, 223812865 & Above, 2239 & Above, 2240 & Above) CONTROLS

Артикул

Название

Примечание

Количество

1

6810303

SPACER Was 6536801 - D

2

6804068

HANDLE Was 6802972 - A

3

6672494

RING

4

6810524

LEVER R.H. - Was 6807101 - D

5

6810523

LEVER L.H. - Was 6807103 - D

6

6701174

WASHER

7

6677904

BEARING RH

8

29CM1030

BOLT

9

6810508

PEDAL R.H. - Was 6808975 - D

10

6536803

WASHER Was 6808157 - D

11

6810511

PEDAL L.H. - Was 6808974 - D

12

6816110

PEDAL L.H. - Was 6809098 - D

13

51DM10

NUT

14

6675722

NUT

15

6807329

BRACKET

16

7104149

PLATE Was 6809099 - A

17

6807285

BRACKET

17

6813004

BRACKET Was 6810065 - A

18

6809194

LOCK R.H. - Was 6807227 - A

19

6808930

LOCK L.H. - Was 6807226 - A

20

54K20008

O-RING

21

47DM8

NUT

22

6816109

PEDAL Was 6808036 - D

23

6677908

BEARING LH

Выбрано товаров: 24
