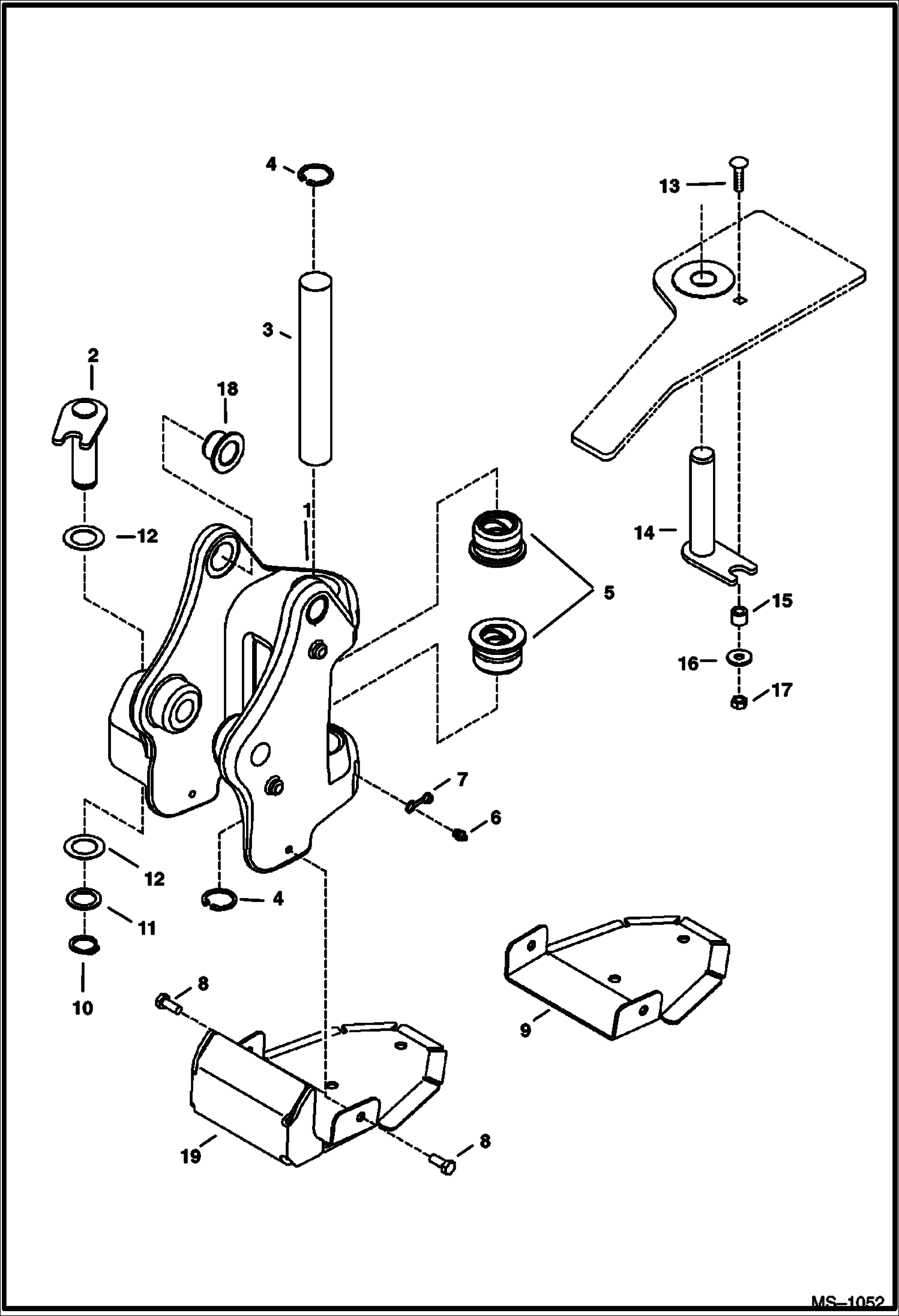

Запчасти Bobcat 320 SWING FRAME WORK EQUIPMENT

1

SWING FRAME NLA - Order 6810606 swing frame (1) & Ref. 18 (2) - Was 6805792 - A

1

6810606

SWING FRAME

2

6805807

PIN

3

6805809

PIN

4

8JM40

SNAP RING

5

6805808

BUSHING

6

10H25

FITTING, GREASE 5

7

6652943

COVER grease fitting

8

7140538

SCREW Was 53CM1025 - B

9

6807139

BRACKET

10

22J19

SNAP RING

11

6589699

WASHER

12

6533856

SHIM

13

28CM1040

BOLT

14

6806903

PIN

15

6806901

SPACER

16

17EM100

WASHER

17

53DM10

NUT

18

6677918

BUSHING

19

6810541

BRACKET
