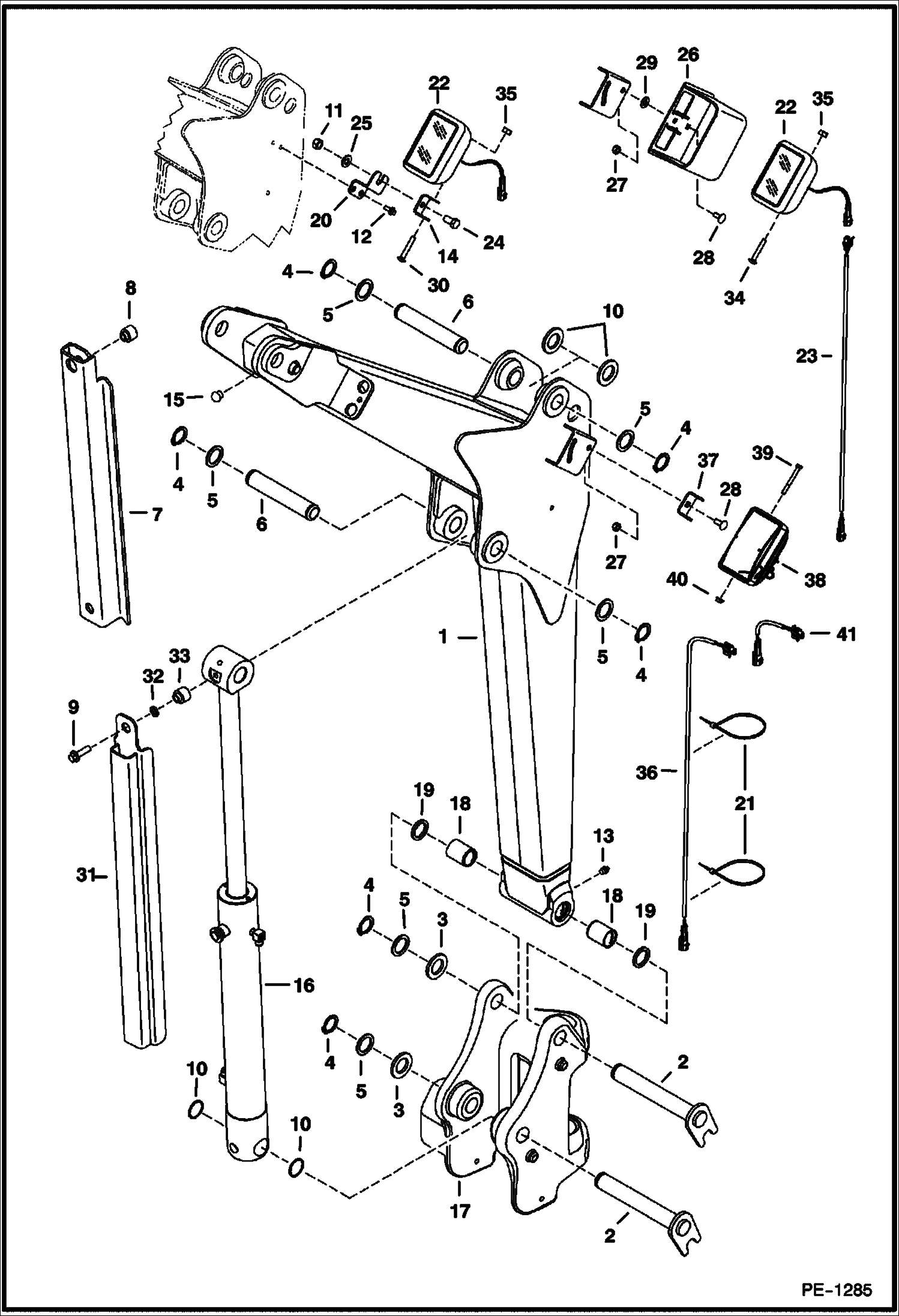

Запчасти Bobcat 320 BOOM WORK EQUIPMENT

1

BOOM NLA - W/Ref. 18 - W/O weld on light bracket - Order 7177739 Boom - Was 6802224 - A

1

BOOM NLA - W/Ref. 18 - W/ weld on light bracket - Order 7177739 Boom & (2) 7100276 Bushing - Was 6809760 - A

1

7177739

BOOM, ARM DIPPER also order (2) of Ref. 18 - Was 7102660 - A

2

6589092

PIN

3

1EM270

WASHER

4

6512132

SNAP RING

5

6589699

WASHER

6

6589067

PIN

7

SHIELD NLA - Order 7130862 shield - also order Ref. 32 & 33 - Was 6589356 - A

8

6587472

SPACER for Use W/Ref.7 (NLA/6596493 shield)

9

59CM1035

BOLT

10

6533856

SHIM

11

61D8

NUT 5

12

29CM820

SCREW

13

10H25

FITTING, GREASE 5

14

BRACKET NSS - Order Ref. 37 - 41

15

6597572

BUMPER

16

CYLINDER See Illustration BOOM CYLINDER/ PE2529 - boom

17

SWING FRAME See Illustration SWING FRAME/ MS1052

18

7100276

BUSHING Was 6802217 - A

19

6653534

SEAL

20

6589194

ANGLE

21

6610510

TIE Was 1715312 - A

22

6675938

LIGHT W/pigtail - Use W/Ref. 14 or 26

22

6676724

BEZEL Was 6676203 - A

22

6667934

BULB

22

6676204

NUT

23

HARNESS NLA - work light - 113'' (2870mm) long - Order Ref. 36 - Was 6808415 - A

24

1C816

SCREW

25

25E21

WASHER 5

26

BRACKET NLA - Order Ref. 37 - 41 - Was 6808258 - A

27

51DM8

NUT Was 4DM8 - B

28

28CM820

BOLT Was 21CM820

29

6675859

RETAINER

30

17C528

BOLT

31

7130862

SHIELD

32

7135076

SPRING WASHER for Use W/Ref. 32

33

7131110

SPACER for Use W/Ref. 32

34

17C532

BOLT 5

35

61D5

NUT

36

7135895

HARNESS work light - 116'' (2946mm) long

37

6691410

LIGHT W/O pigtail - Use W/Ref. 38

37

6692400

BULB

38

7135899

BRACKET 1.82'' (46,2mm) wide - for light W/O pigtail

39

1CM655

SCREW

40

51DM6

NUT

41

7135981

HARNESS extension - 6'' (152mm) long
