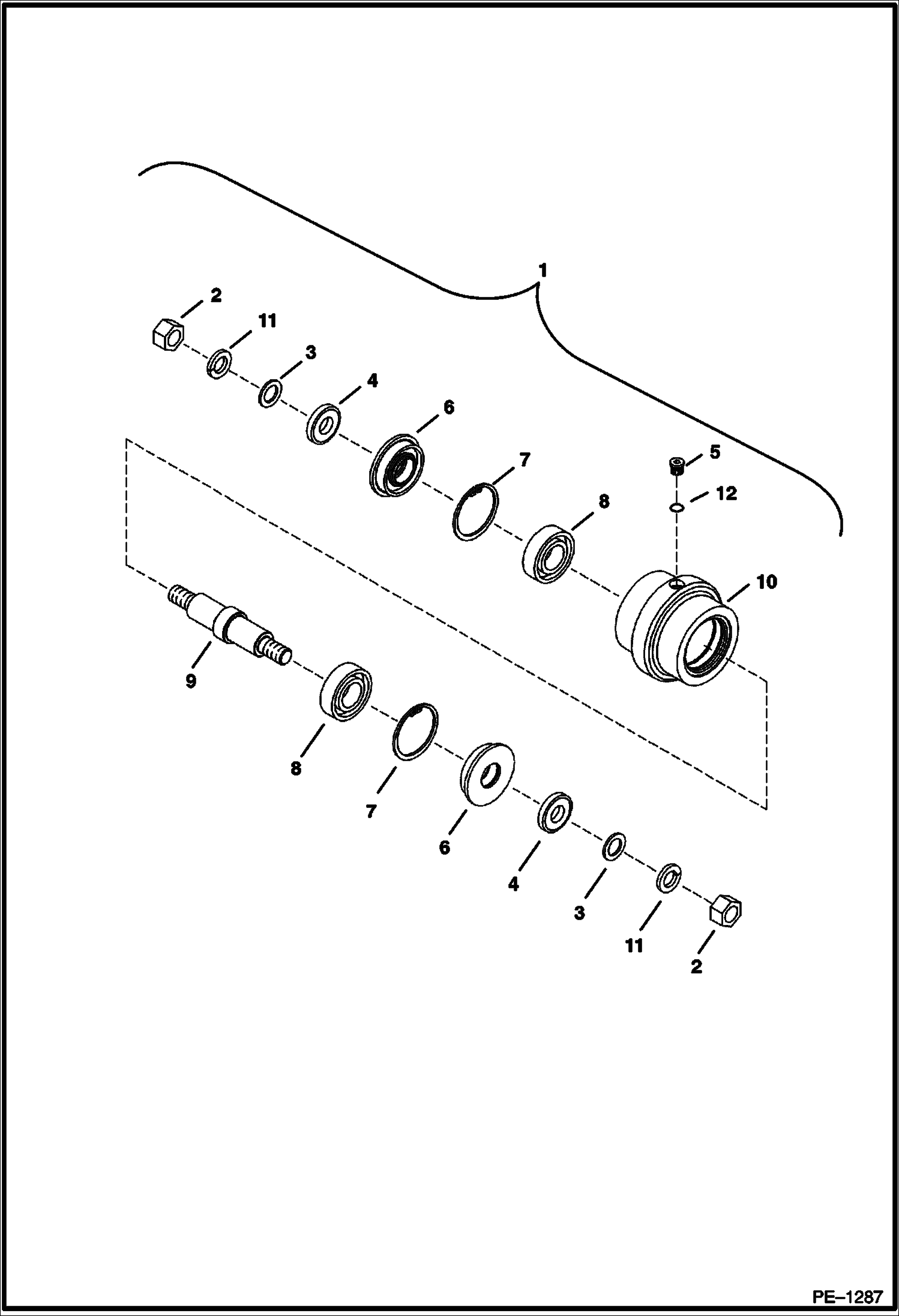

Запчасти Bobcat 320 TRACK ROLLER (S/N 223811360-223813024, 223511789-223516425) UNDERCARRIAGE

1

ROLLER See Illustration TRACK ROLLER/ B22278 - NLA - Assy. - Ref. 2-12 - rubber track - Was 6807912 - A

1

ROLLER See Illustration TRACK ROLLER/ B22278 - NLA - Assy. - Ref. 2-12 - steel track - Was 6810217 - A

2

1DM16

NUT

3

15EM160

WASHERS

4

6533873

SPACER

5

90K3

PLUG W/Ref.12 - Was 90KV3 - D

6

SEAL NLA - order 6681719 Seal - Was 6676019 - A

7

7JM52

SNAP RING

8

BEARING NLA - order 6680289 Bearing - Was 6653696 - A

9

6807914

SHAFT

10

ROLLER NLA - rubber tracks - order 6814875 Roller & seal 6681719 - Was 6807913 - A

10

ROLLER NLA - steel tracks - order 6814879 Roller & seal 6681719 - Was 6810218 - A

11

6EM160

WASHER

12

95K4

O-RING
