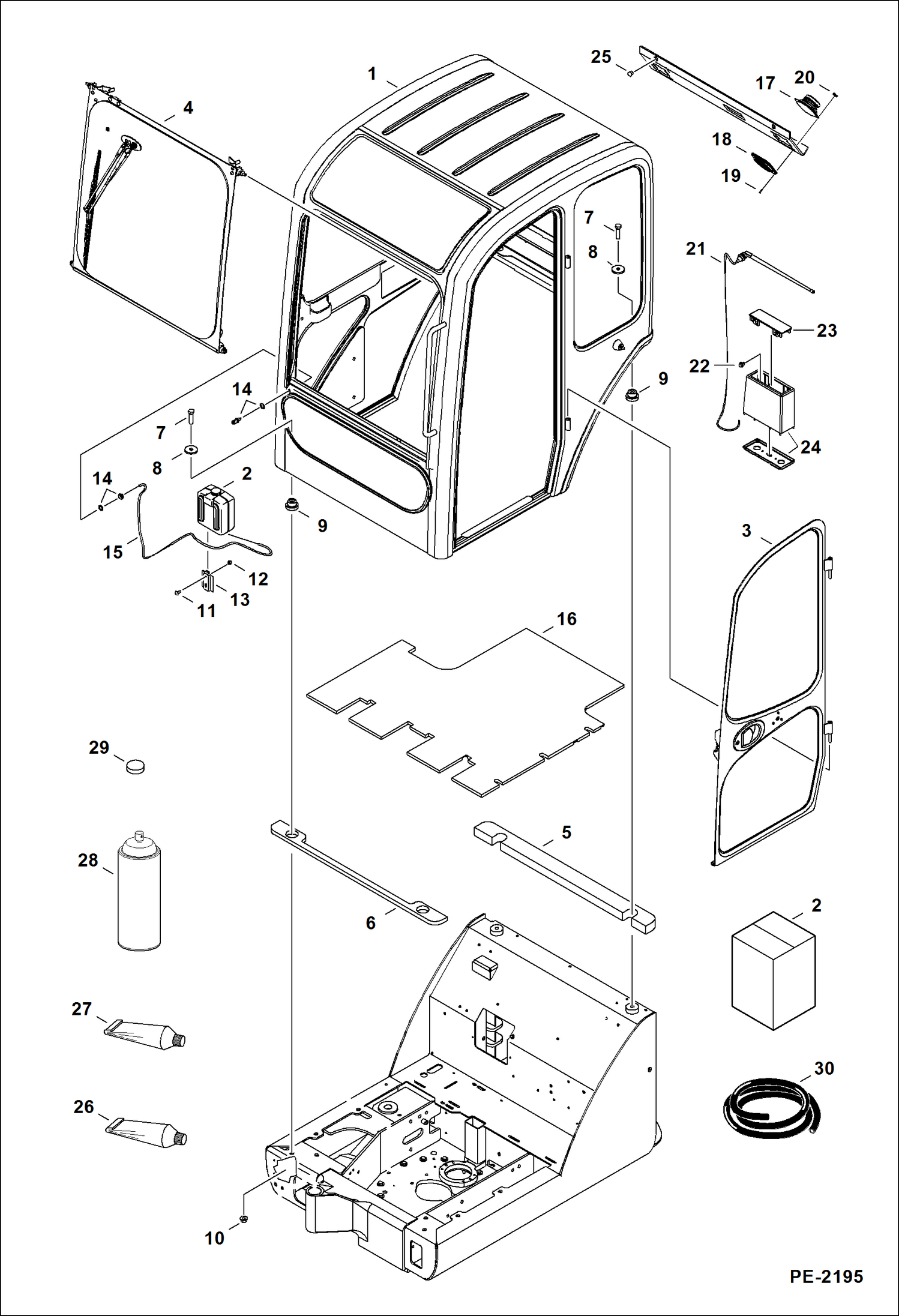

Запчасти Bobcat 320 OPERATOR CAB (Mounting, Front Window, Door) (S/N 223911001 & Above, 224011001 & Above) MAIN FRAME

1

CAB NLA - Was 7109077 - A

1

7222242

KIT, CAB W/decals & instructions

1

6990466

INSTRUCTIONS

2

WASHER NLA - kit - Order 6666767 nozzle, 6691499 tank assy, 6664557 bracket, & 5 feet of 6708310 bulk hose - Was 6664438 - A

2

6691499

TANK ASSY includes 6664554 pump

2

6664554

PUMP, WIPER WASHER

3

DOOR See Illustration OPERATOR CAB/ PE1905 - NLA - assy - Was 6810944 - A

4

6816165

WINDOW See Illustration OPERATOR CAB/ PE2139 - front assy

5

6816177

SEAL

6

6816176

SEAL

7

10CM1455

BOLT

8

6805244

WASHER

9

7001052

MOUNT, ENG Was 6804026 - A

10

43DM14

NUT

11

6667196

BOLT

12

61D4

NUT 5

13

6664557

BRACKET tank

14

6666767

NOZZLE Was 6664555 - A

15

HOSE NLA - 5' (1524 mm) long - Order Ref. 30 - Was 6664556 - A

16

7104968

FLOORMAT Was 6807328 - A

17

6903211

SPEAKER, 4 INCH Was 6685606 - A

18

6685607

GRILL grill - Was 6903212 - A

19

7163690

SCREW Was 6685743 - B

20

6685744

CLIP

21

6676114

ANTENNA, RADIO

22

26GM10016

SCREW

23

6685745

COVER

24

6685799

BRACKET

25

6597572

BUMPER

26

6808882

ADHESIVE, URETHANE 10.5 fluid oz. - Was 7101510 - B

27

7102268

PRIMER 4.2 fluid oz.

28

7110861

CLEANER

29

7101512

BUMPER

30

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot
