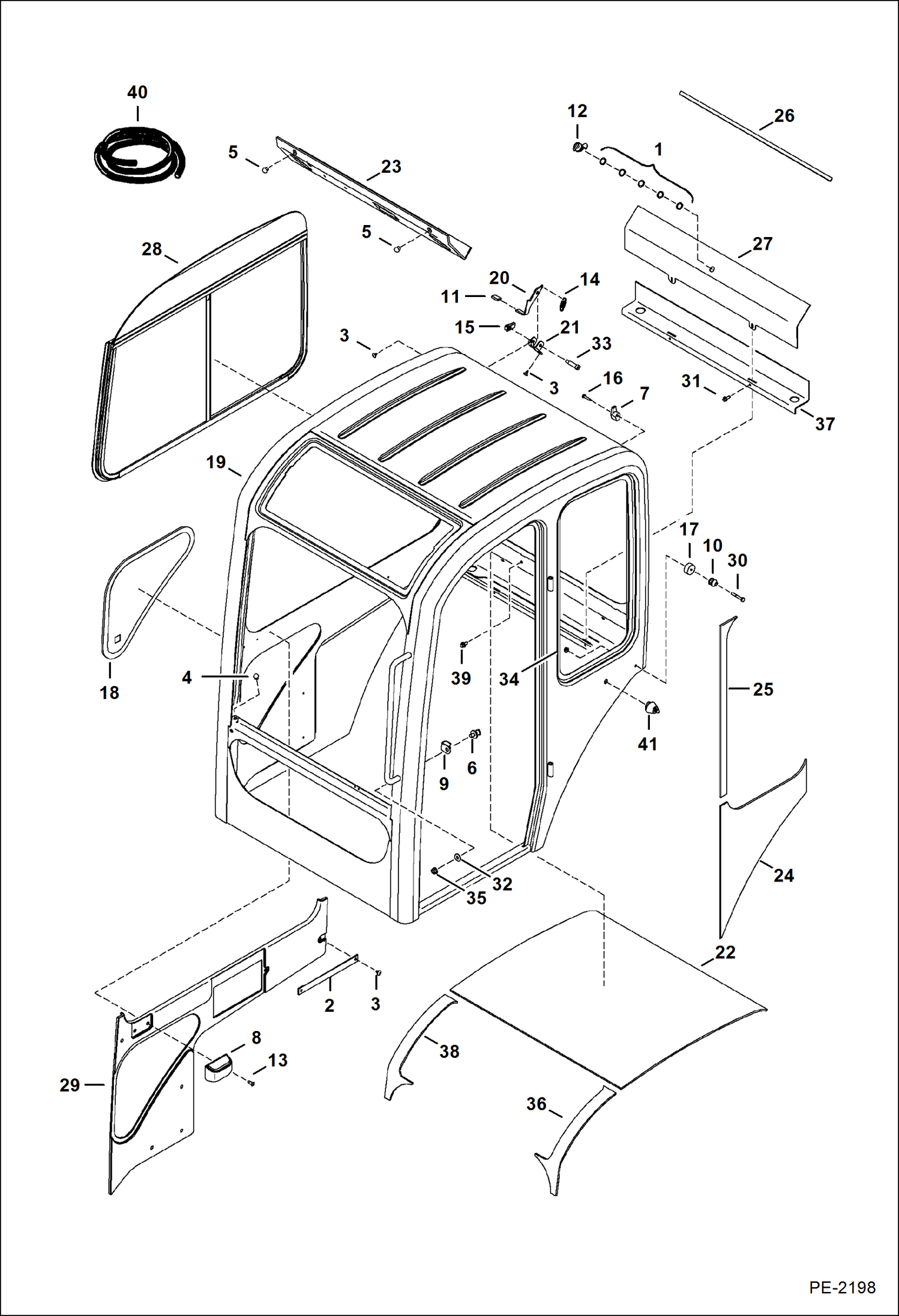

Запчасти Bobcat 320 OPERATOR CAB (S/N 223911001 & Above, 224011001 & Above) MAIN FRAME

1

6536802

WASHER

2

6589347

STRAP elastic

3

6589675

SCREW

4

6597572

BUMPER

5

6630207

RIVET 5

6

6654170

STRIKER BOLT

6

6689007

STRIKER BOLT

7

6658289

HOOK coat

8

6664075

ASH TRAY

9

6664083

COVER

9

6688999

STRIKER GUARD cover

10

6675385

PLUG

11

6677500

HANDLE

12

6681922

LATCH

13

6706517

SCREW

14

6714210

SPRING

15

1306637

CLIP Was 59D000005B - B

16

6808424

SCREW

17

6808446

SPACER

18

6811792

WINDOW RH - Use 6808882 adhesive, 7102268 primer, & 7110861 cleaner

19

CAB Was 7109077 - A

19

7222242

KIT, CAB W/decals & instructions - Was 7103483 - A

19

6990466

INSTRUCTIONS

20

6814721

HANDLE latch

21

6814724

LATCH

22

6816185

INSULATION roof

23

7108627

INSULATION rear - Was 7102641 - A

24

7117115

INSULATION SIDE side - Was 6816187 - A

25

6816189

INSULATION

26

SEAL NLA - Order 34'' (864mm) of Ref. 40

27

6816342

COVER rear

28

7100571

WINDOW

29

7101010

INSULATION right

30

1C428

BOLT

31

26GM6020

SCREW

32

27E6

WASHER 5

33

1303190

PIN, CLEVIS Was 38C000620B - B

34

55D4

NUT

35

55D7

NUT

36

6818362

INSULATION RH - front

37

6817521

PAD

38

6818275

INSULATION RH - front

39

26GM10016

SCREW

40

6648416

SEAL BULK /FT Bulk - Sold per foot

41

6689001

STRIKER
