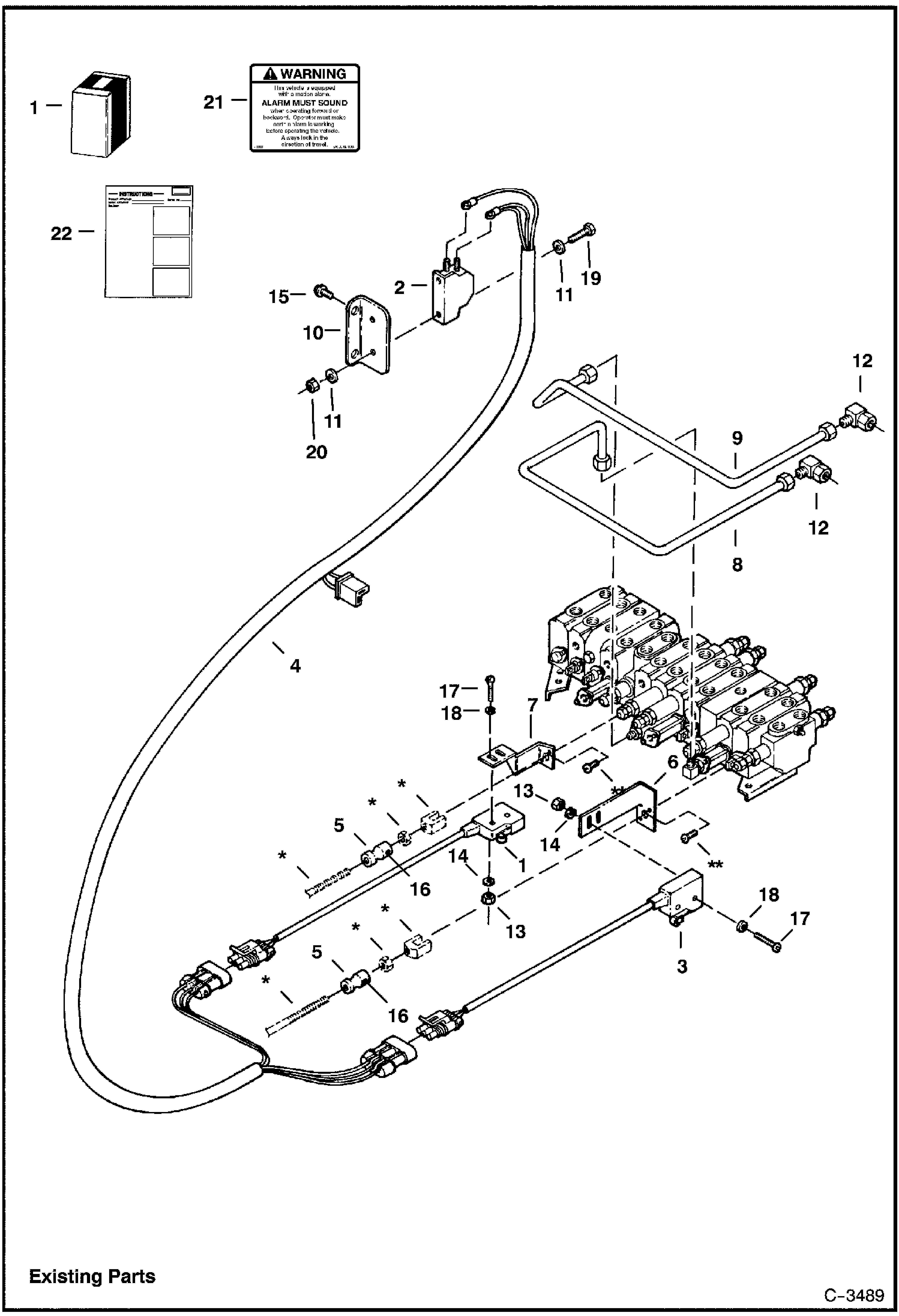

Запчасти Bobcat 320 MOTION ALARM KIT ACCESSORIES & OPTIONS

1

6803327

KIT motion alarm

2

6651512

ALARM, BACK-UP Also Order Ref. 21 - Was 6599931 - A

3

6661150

SWITCH, ROLLER MICRO assembly

4

6803070

HARNESS

5

6803131

ACTUATOR

6

6803159

BRACKET left

7

6803172

BRACKET right

8

6803897

TUBELINE

9

6803898

TUBELINE

10

6803902

BRACKET

11

6EM60

WASHER, SPRING

12

11K3

ELBOW Was 11KN00003B - A

13

12D6

NUT 10

14

12E6

WASHER

15

26GM10020

BOLT

16

33G404

SET SCRW5

17

85G620

SCREW

18

25E6

WSHR

19

1CM625

BOLT

20

1DM6

NUT

21

6810004

DECAL, WARNING

22

6900403

INSTRUCTIONS
