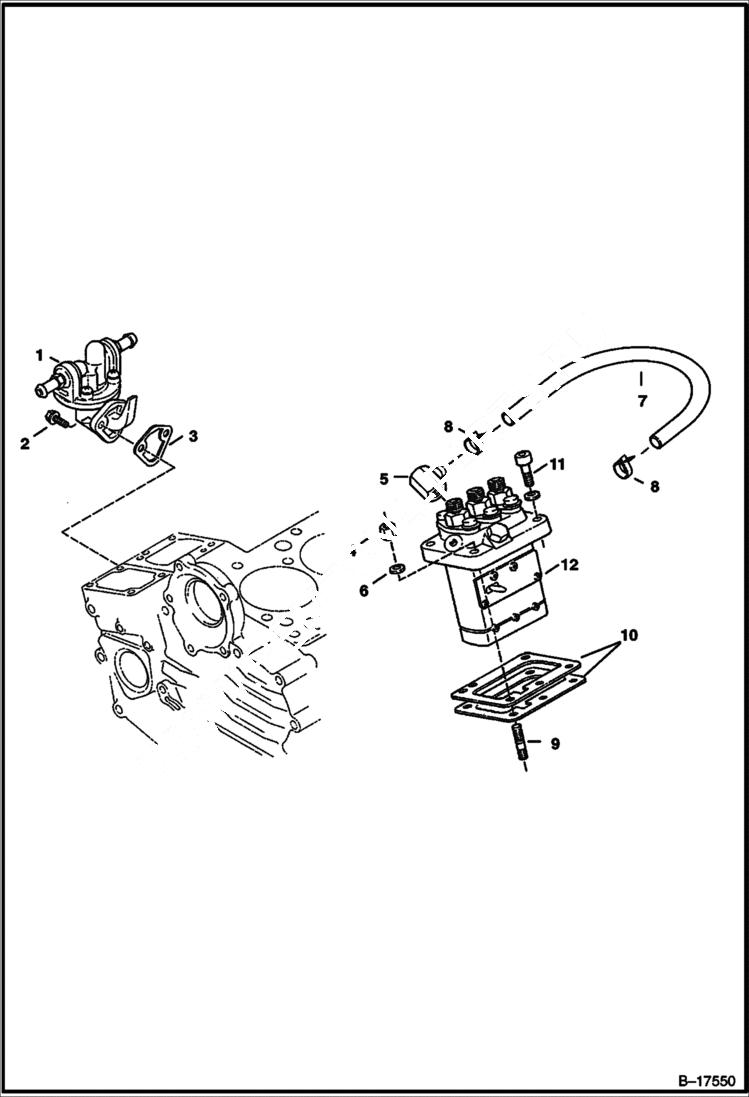

Запчасти Bobcat 320 FUEL & INJECTION PUMP POWER UNIT

1

6670498

FUEL PUMP

2

1CM616

SCREW Was 4CM616 - A

3

6670782

GASKET See Illustration LOWER GASKET KIT/ B25295 - Included W/Lower Gasket Kit

4

6657461

NUT

5

6670436

FITTING

6

6667419

WASHER

7

6598694

HOSE W/Ref. 8

8

6657557

CLAMP

9

6657458

STUD

10

6670433

SHIM 0,20 mm

10

6672391

SHIM 0,25mm - Was 6670434 - A

10

6670777

SHIM 0,30 mm

11

6670435

BOLT

12

PUMP, FUEL INJ See Illustration INJECTION PUMP/ B14866 Was 6670432 - B
