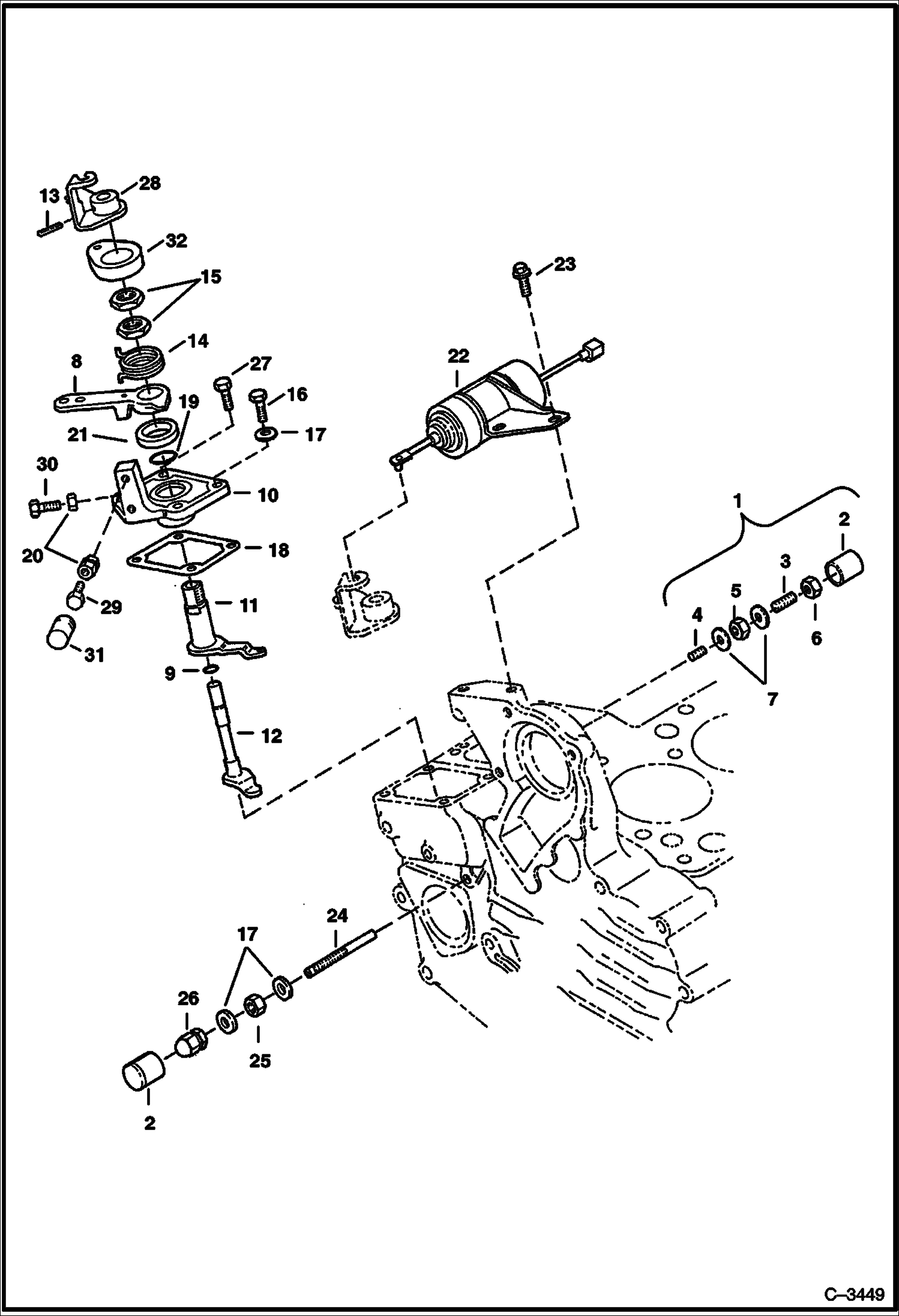

Запчасти Bobcat 320 SPEED CONTROL & STOP LEVER POWER UNIT

1

6670424

IDLE ASSY Ref. 2-7

2

6653905

CAP

3

BOLT NSS

4

SPRING NSS

5

NUT NSS

6

NUT NSS

7

GASKET NSS

8

6670460

LEVER

9

3974280

O RING See Illustration LOWER GASKET KIT/ B25295 - Included W/Lower Gasket Kit

10

6670456

COVER

11

6670455

LEVER ASSY See Illustration GOVERNOR GROUP/ B14865 - Ref. 1

12

6670429

LEVER

13

6670431

PIN

14

6670780

SPRING

15

6670428

NUT

16

4CM618

BOLT

17

3974972

GASKET

18

6670457

GASKET See Illustration LOWER GASKET KIT/ B25295 - Included W/Lower Gasket Kit

19

6670459

O-RING See Illustration LOWER GASKET KIT/ B25295 - Included W/Lower Gasket Kit

20

1DM6

NUT

21

6670458

WASHER

22

6670776

SOLENOID, SHUTOFF FUEL See Illustration ELECTRICAL SYSTEM/ E2358 - Ref. 39

23

29CM612

BOLT, FLANGED Was 6652762 - A

24

6670461

BOLT

25

6657469

NUT

26

6670462

NUT

27

6652580

BOLT

28

6670430

LEVER, SPEED CONTROL

28

6698155

LEVER, ENGINE STOP

29

6652712

STOPPER

30

6655228

STOPPER

31

CAP NSS

32

6670781

CAP
