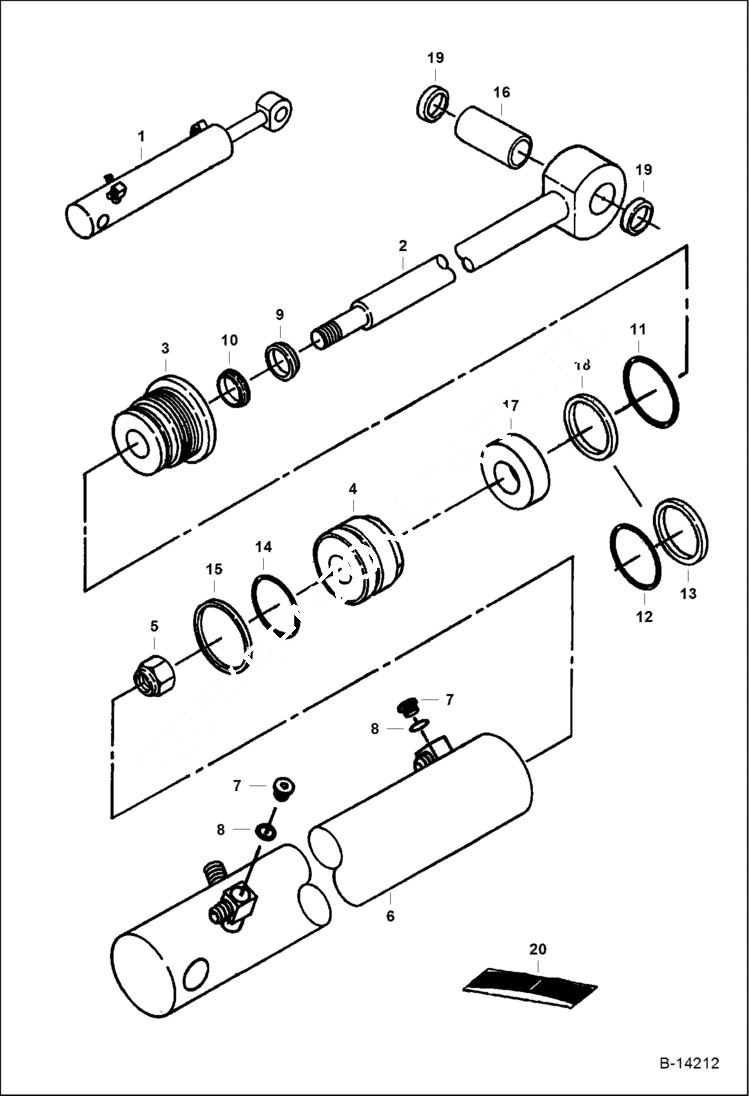

Запчасти Bobcat 320 ARM CYLINDER HYDRAULIC SYSTEM

1

6810414

CYLINDER Ref. 2-15 & 17, also order (1) Ref. 16 & (2) Ref. 19

2

6810415

ROD Also Order Ref. 16 & Ref. 19 (2) - Was 6806990 - A

3

6589463

HEAD

4

6589464

PISTON

5

6810539

NUT Was 6804592 - A

6

6589469

HOUSING

7

PLUG NLA - W/Ref. 8 - flat boss face

7

90KV2

PLUG W/Ref. 8 - tapered boss face

8

79K3

O RING 10 for flat boss face

8

95K3

O'RING for tapered boss face

9

6690707

WIPER, ROD CYL Was 6665086 - A

10

6667326

SEAL Was 6538141 - A

11

82K229

ORING Was 58K229 - B

12

73K227

RING Back-up

13

25K40204

O-RING Was 54K040204B - B

14

25K30130

O RING 10 Was 54K30130 - B

15

6536642

RING

16

6803814

BUSHING

17

6804594

SPACER Was 6595133 - A

18

6653534

SEAL dust

19

7207224

SEAL, QUAD

20

7135538

KIT, SEAL Ref. 5 & 9 - 11, 14, 15, & 19 - Was 6816534 - A
