Запчасти Bobcat 320 VALVE SECTION (Boom) HYDRAULIC SYSTEM

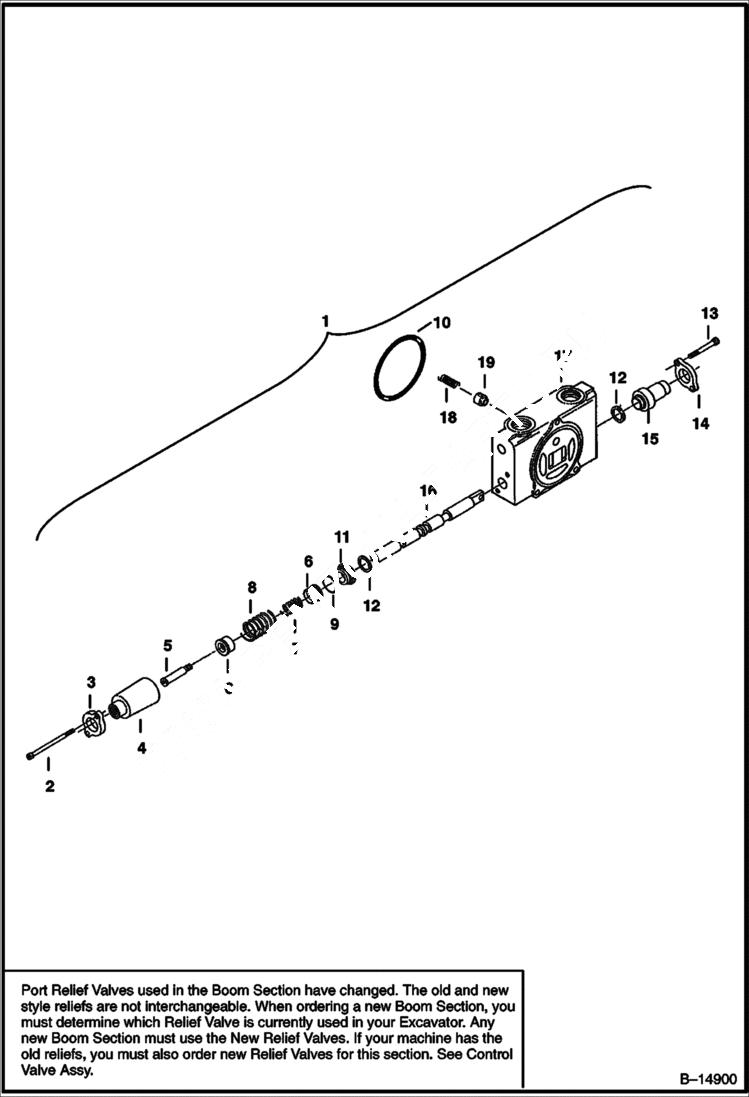

Схема запчастей Bobcat 320 - VALVE SECTION (Boom) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6670571

VALVE Section - Boom-W/Refs. 2-19 - See Note

2

6665439

SCREW

3

6665442

PLATE

4

6668964

END COVER

5

6668967

BOLT

6

6668970

SEAT Spring

7

6668968

SPRING Inner

8

6668969

SPRING Outer

9

6665435

O-RING

10

58K228

O RING 10 Was 6646691 - A

11

6665443

RETAINER

12

25K20026

O RING 10 Was 6665432 - A

13

73G424

SCREW

14

6665442

PLATE

15

6668965

END COVER

16

SPOOL NSS - Order Ref. 1

17

HOUSING NSS - Order Ref. 1

18

6630966

SPRING

19

6630965

POPPET

Выбрано товаров: 19
