Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Pump to Valve to Cooler to Filter) (S/N 562313001 - 562314899) HYDRAULIC SYSTEM

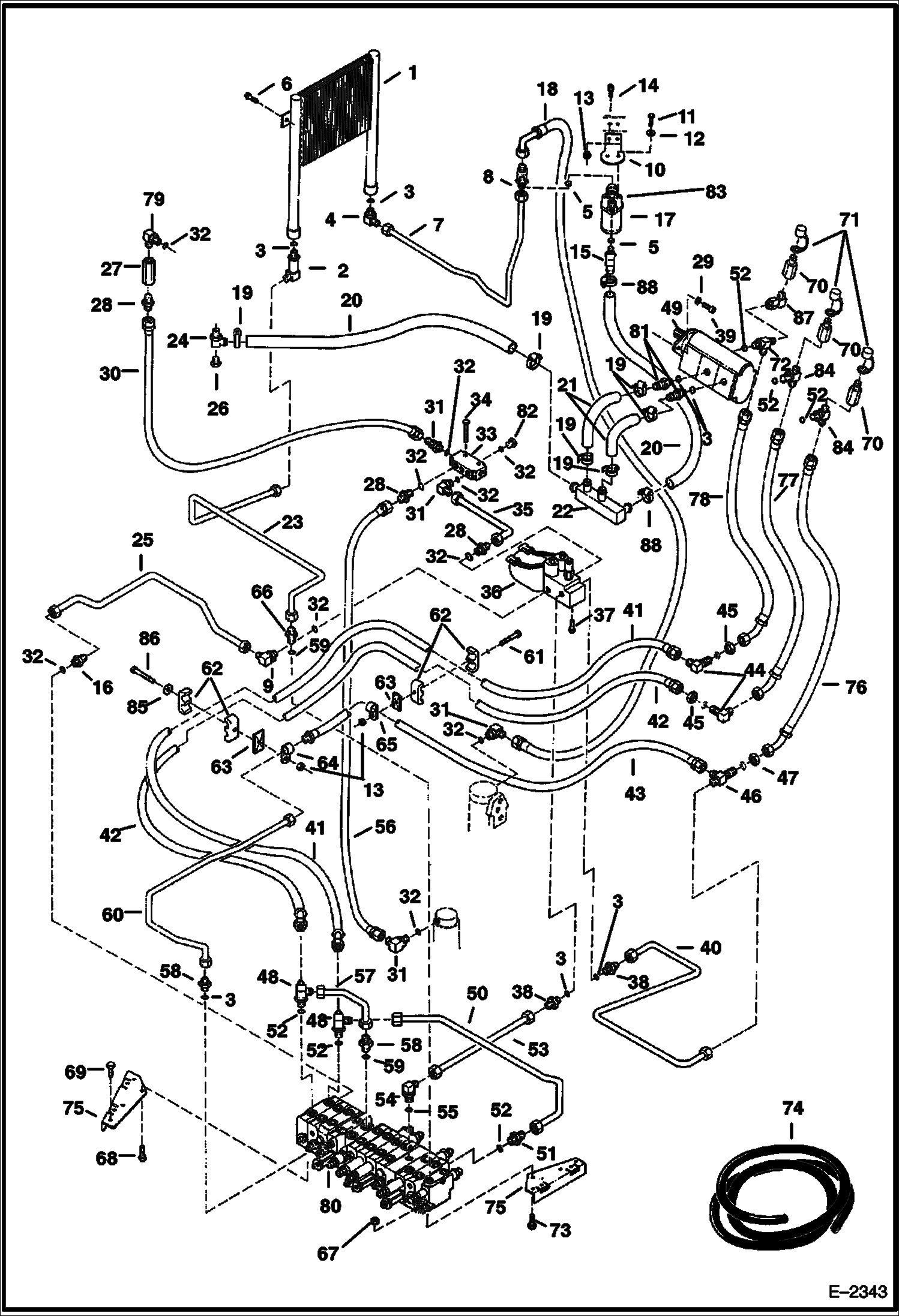

Схема запчастей Bobcat 320 - HYDRAULIC CIRCUITRY (Pump to Valve to Cooler to Filter) (S/N 562313001 - 562314899) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6670250

OIL COOLER

2

6519187

ELBOW W/Ref. 3

3

79K12

O RING 10 flat boss face

3

99K12

O RING tapered boss face

4

17K8

FITTING W/Ref. 3 - flat boss face

4

FITTING, HYD ELBOW NLA - W/Ref. 3 - tapered boss face - Was 17KN00008B - A

4

97K12

O'RING flared end

4

17KB1212

FITTING, HYD ELBOW W/Ref. 3 - flat boss face

5

79K16

O RING 10

6

29CM816

SCREW

7

6801378

TUBELINE

8

6801404

TEE W/Ref. 5

9

1316049

ELBOW W/Ref. 32 - flat boss face

9

FITTING, HYD ELBOW NLA - W/Ref. 32 - tapered boss face - Was 6715652 - A

9

97K4

O'RING flared end

9

17KB0406

FITTING, HYD ELBOW W/Ref. 32 - flat boss face

10

6801155

BRACKET

11

1C610

BOLT

12

25E17

WASHER 5

13

43DM8

NUT Was 42DM00008B - B

14

28CM820

BOLT

15

1316119

ELBOW W/Ref. 5

16

15K3

CONNECTOR W/Ref. 32 - flat boss face

16

FTG HYD S Connector NLA - W/Ref. 32 - tapered boss face - Was 15KN00003B - A

16

97K4

O'RING flared end

16

15KB0404

FTG HYD S Connector W/Ref. 32 - flat boss face

17

6654897

FILTER ASSY W/Ref. 83

18

6801369

HOSE

19

5HM35

HOSECLAMP Was 42H000012B - B

20

HOSE NLA - 26'' (650 mm) long - Order Ref. 74

21

6801374

HOSE

22

6801406

MANIFOLD

23

6801379

TUBE

24

6802124

ELBOW W/Ref. 3

25

6801372

TUBE W/Ref. 3

26

24K5

PLUG W/Ref. 30 - flat boss face

26

PLUG NLA - W/Ref. 32 - tapered boss face - Was 24KN00005B - A

27

6667552

FILTER

28

15K5

FITTING W/Ref. 32 - flat boss face

28

ADAPTOR NLA - W/Ref. 32 - tapered boss face - Was 15KN00005B - A

28

97K6

O RING flared end

28

15KB0606

FITTING, HYD CONNECTOR W/Ref. 32 - flat boss face

29

15EM100

WASHER

30

6801384

HOSE

31

17K5

ELBOW W/Ref. 32 - flat boss face

31

ELBOW NLA - W/Ref. 32 - tapered boss face - Order 17KB606 - Was 17KN5

31

97K6

O RING for flared end on 17KN5

31

17KB0606

FITTING W/Ref. 32 - flat boss face

32

79K6

O RING 10 flat boss face

32

99K6

O RING tapered boss face

33

6675142

BLOCK Drain - Was 6667830 - A

34

1CM850

BOLT

35

6596738

TUBE

36

VALVE See Illustration ACCUMULATOR VALVE/ C3418 NLA - Order 6675141 - Was 6667819 - A

36

6675141

VALVE See Illustration ACCUMULATOR VALVE/ B17155 Accumulator

37

29CM830

CAPSCREW

38

6669676

CHECK VALVE W/Ref. 32

39

3GM1025

BOLT

40

6801370

TUBELINE

41

6801531

HOSE

42

6801532

HOSE

43

6801533

HOSE

44

88F5

ELBOW

45

86F5

NUT

46

6801618

TEE

47

86F6

NUT

48

6801702

TEE W/Ref. 52

49

PUMP See Illustration GEAR PUMP/ B14045

50

6801704

TUBE Was 6901704 - A

51

15K6

ADAPTER W/Ref. 52 - flat boss face

51

ADAPTOR NLA - W/Ref. 52 - tapered boss end - Was 15KN00006B - A

51

97K8

O-RING flare end

51

15KB0808

FITTING, HYD CONNECTOR W/Ref. 52 - flat boss face

52

79K6

O RING 10 flat boss face

52

99K6

O RING tapered boss face

53

6801371

TUBELINE

54

17KB0604

ELBOW UNION W/Ref. 59 - Was 6579647

55

79K4

O RING 10

56

6801366

HOSE

57

6801703

TUBE

58

731794

CONNECTR W/Ref. 59

59

79K10

O RING 10

60

6801662

TUBE

61

1CM870

BOLT

62

6592506

CLAMP

63

6592507

PLATE

64

30H31

CLAMP 10

65

30H42

CLAMP

66

730963

CONNECTR W/Ref. 59

67

4DM10

NUT Was 1DM -10 - B

68

29CM812

BOLT

69

29CM1035

SCREW

70

6646635

COUPLER Diagnostic

71

6630367

CAP

72

6801397

TEE W/Ref. 52 - flat boss face

72

6805166

TEE W/Ref. 52 - tapered boss face

72

97K8

O-RING 37# flared end

73

1CM1030

BOLT

74

6673824

HOSE BULK/FOOT Bulk - Sold Per Foot - Was1310810 - A

75

6801407

MOUNT

76

6801707

HOSE

77

6801706

HOSE

78

6801361

HOSE

79

6800456

ELBOW W/Ref. 52 - flat boss face

79

6715190

ELBOW W/Ref. 52 - tapered boss face

80

6669612

VALVE See Illustration CONTROL VALVE ASSY./ B17546

81

1309919

CONECTOR Barbed - W/Ref. 3 - flat boss face

81

6715715

FITTING Barbed - W/Ref. 3 - tapered boss face

82

24K6

FITTING

83

6653336

ELEMENT Incl. W/Ref. 17

84

19K6

FITTING W/Ref. 52 - flat boss face

84

6805164

TEE W/Ref. 52 - tapered boss face

84

97K8

O-RING 37# flared end

85

27E6

WASHER 5

86

1CM875

BOLT

87

11K6

UNION

88

6672637

CLAMP

Выбрано товаров: 117
