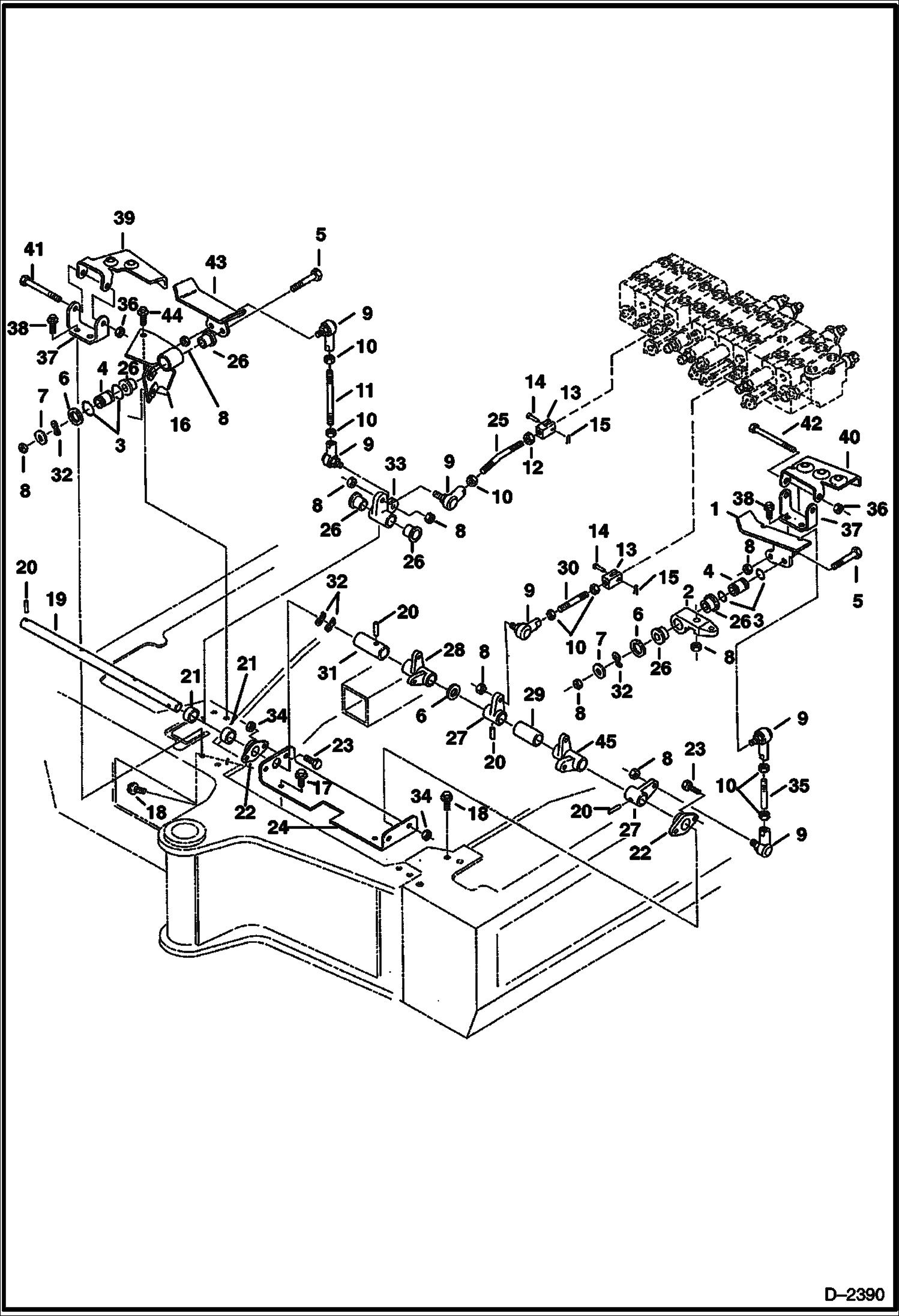

Запчасти Bobcat 320 BOOM SWING & AUXILIARY PEDAL CONTROLS

1

6589985

PEDAL LH

2

6537481

MOUNT Pivot

3

58K015

O-RING 10

4

6536545

SLEEVE

5

1CM1055

BOLT

6

6536802

WASHER

7

27E6

WASHER 5

8

53DM10

NUT Was 49DM00010B - B

9

6536531

BALL JOINT

10

4DM10

NUT Was 1DM00010B - B

11

6586636

ROD

12

6587431

NUT LH thread

13

6587430

CLEVIS LH thread

14

6536543

PIN

15

1F212

PIN

16

6587171

MOUNT

17

29CM1020

BOLT

18

29CM1025

BOLT

19

6801466

ROD

20

14J2124

ROLLPIN

21

6589986

SPACER

22

6536818

BEARING

23

1CM816

BOLT

24

6586658

PLATE Mounting

25

6587429

ROD

26

6536801

BUSHING

27

6586633

LEVER

28

6536831

LEVER

29

6801463

SPACER

30

6801465

ROD L.H.

31

6801464

SPACER

32

6536803

WASHER Wave Spring

33

6587183

LEVER

34

4DM8

NUT Was 1DM00008B - B

35

6586635

ROD

36

53DM8

NUT Was 49DM00008B - B

37

6586653

MOUNT Pedal Lock/Foot Rest

38

26GM8016

SCREW

39

6586654

PLATE

40

6537640

PLATE

41

1CM885

BOLT

42

1CM8100

SCREW

43

6589584

PEDAL RH

44

26GM10020

BOLT

45

6801462

LEVER
