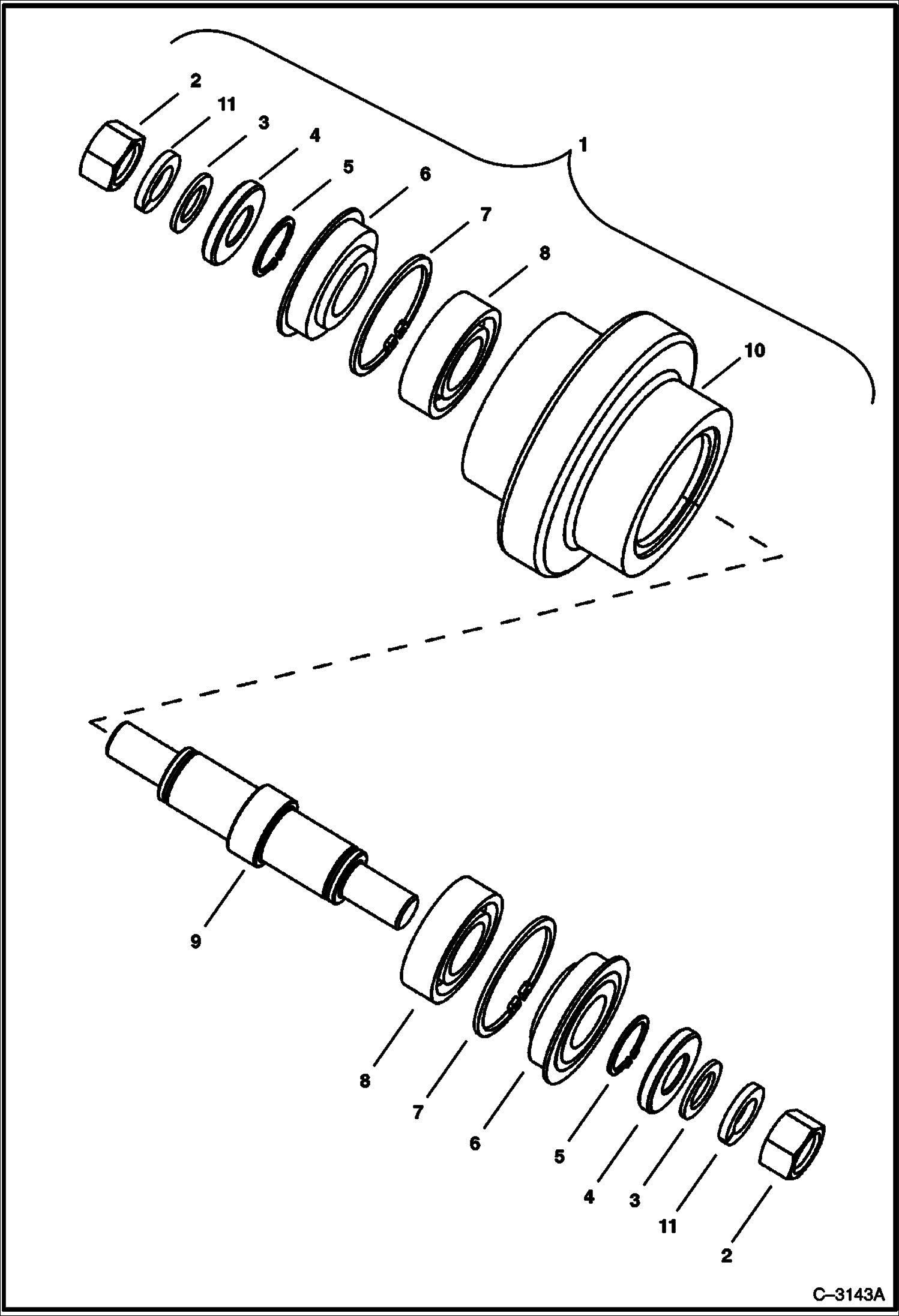

Запчасти Bobcat 320 TRACK ROLLER (S/N 562320001 & Above, 517811001 & Above) UNDERCARRIAGE

1

ROLLER NLA - Assy. - Ref. 2-11 - Order 6807912 - Was 6805219 - A

2

1DM16

NUT

3

15EM160

WASHERS

4

6533873

SPACER

5

5JM25

CIR-CLIP

6

6676019

SEAL Was 6652378 - A

7

7JM52

SNAP RING

8

6653696

BALL BEARING

9

SHAFT NLA - Order 6807912 - Was 6533872 - A

10

ROLLER NLA - Order 6807912 - Was 6533871 - A

11

6EM160

WASHER
