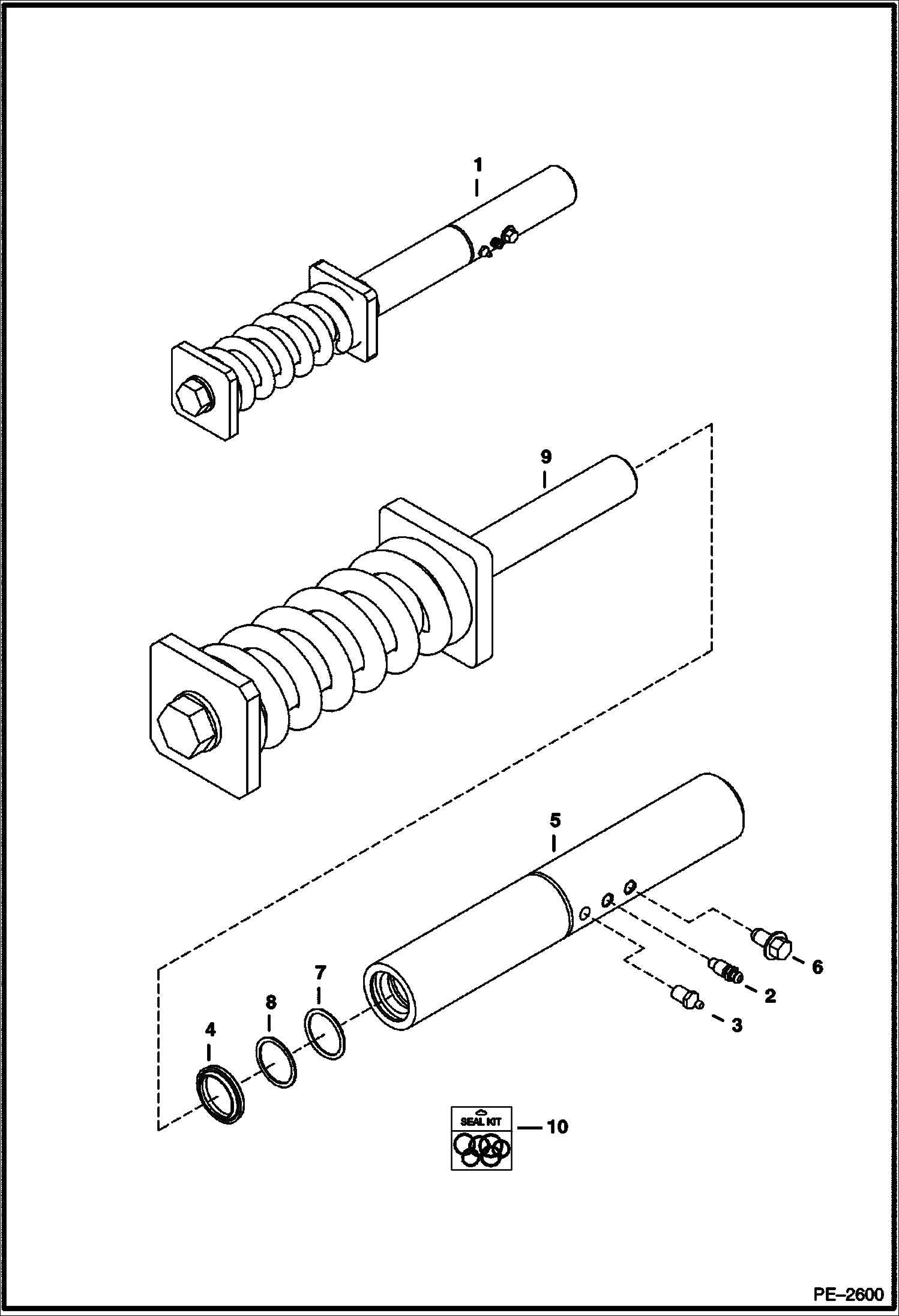

Запчасти Bobcat 320 RECOIL SPRING (S/N 562320001 & Above, 517811001 & Above) UNDERCARRIAGE

1

SPRING ASSY. NLA - Ref. 2 - 9 - Order 7121351 - Was 6816237 - A

1

7121351

CYLINDER Ref. 2-9

2

6645812

SCREW, BLEED

3

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

4

6665208

SEAL

5

CYLINDER NLA - Order 7121352 & 6689071- Use W/ Ref. 8 73K218 - Was 6816238 - A

5

7121352

TUBE W/A Use W/ Ref 8. 6689071

6

26GM10020

BOLT

7

6680605

O-RING Was 58K218 - B

8

73K218

RING BKUP 1.5'' (38mm) OD

8

6689071

RING BACKUP 1.46'' (37mm) OD

9

SPRING NSS - Order Ref 1

10

7121410

SEAL KIT Includes Ref 4, 7, & 8 (6689071)
