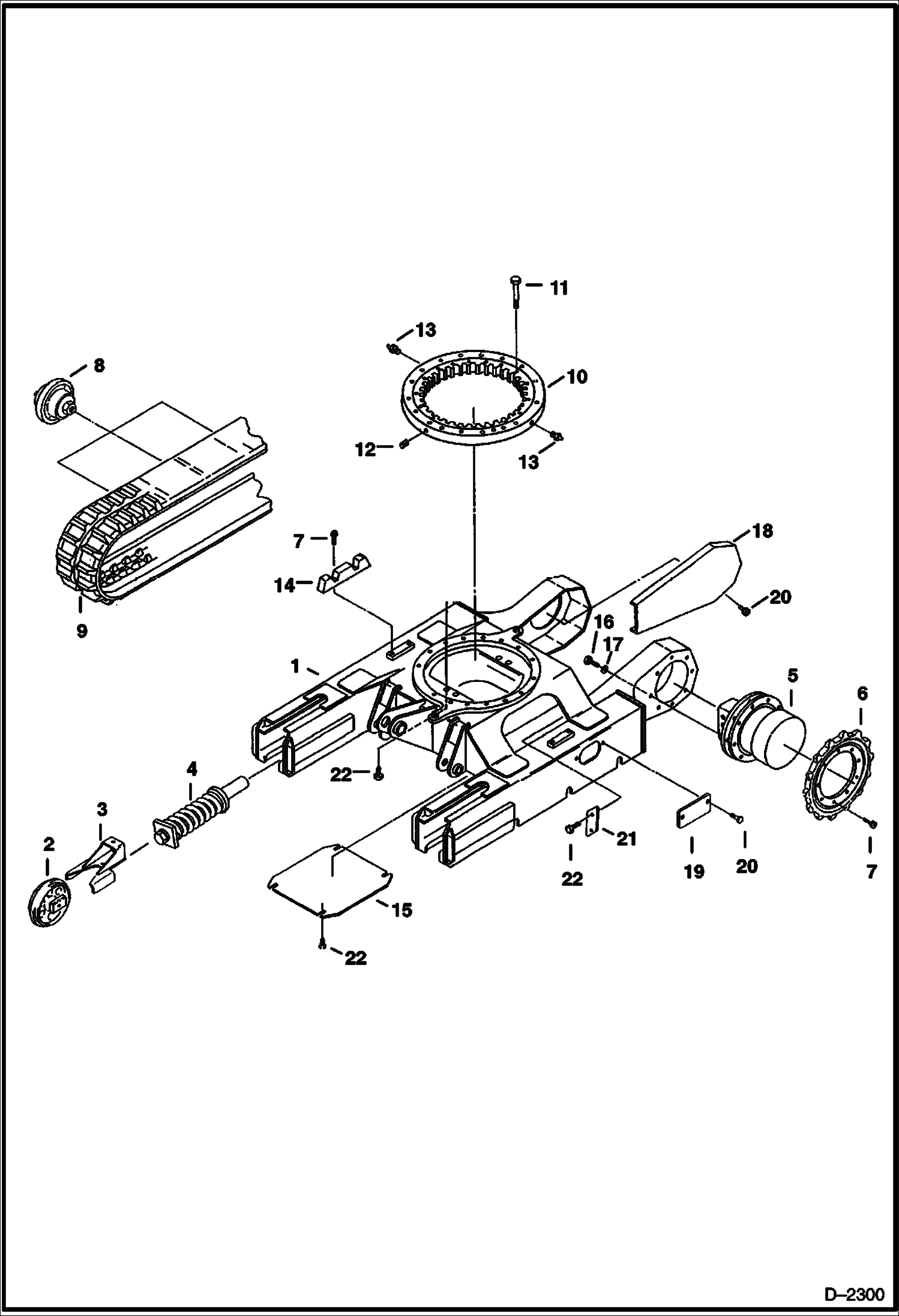

Запчасти Bobcat 320 UNDERCARRIAGE (S/N 562313001-562319999) UNDERCARRIAGE

1

6596099

FRAME

1

6596099

FRAME

1

6596099

FRAME

1

FRAME NLA - Order 6804995 , 6804993 ,

1

1

2

6589009

IDLER See Illustration FRONT IDLER/ B17985

3

6589538

YOKE

4

6589499

SPRING ASSY. See Illustration RECOIL SPRING/ B14351 - Recoil

5

6667336

MOTOR - Drive

6

6539720

SPROCKET

7

3GM1025

BOLT

8

6800510

ROLLER, TRACK See Illustration TRACK ROLLER/ C3143 - rack

9

TRACK, RUBBER See Illustration TRACKS/ NA6210

9

TRACK, STEEL See Illustration TRACKS/ B17538

10

6652015

SWING BEARING 110 Teeth on swing gear - W/Refs. 12 & 13

10

6652015

SWING BEARING

10

6652015

SWING BEARING

10

6674671

RING, SLEW

10

6674671

RING, SLEW

10

6674671

RING, SLEW

11

10CM1045

BOLT

11

10CM1045

BOLT

11

10CM1045

BOLT

11

7CM1245

BOLT

11

7CM1245

BOLT

11

7CM1245

BOLT

12

6652962

SET SCREW

13

6652970

GREASE FITTING Was 6533968 - A

14

6589639

PLATE Slide

15

6533655

COVER

16

1CM1030

BOLT

17

6EM100

WASHER

18

6589305

COVER

19

6533656

COVER

20

26GM10020

BOLT

21

6596203

COVER

22

26GM8016

SCREW Self tapping
