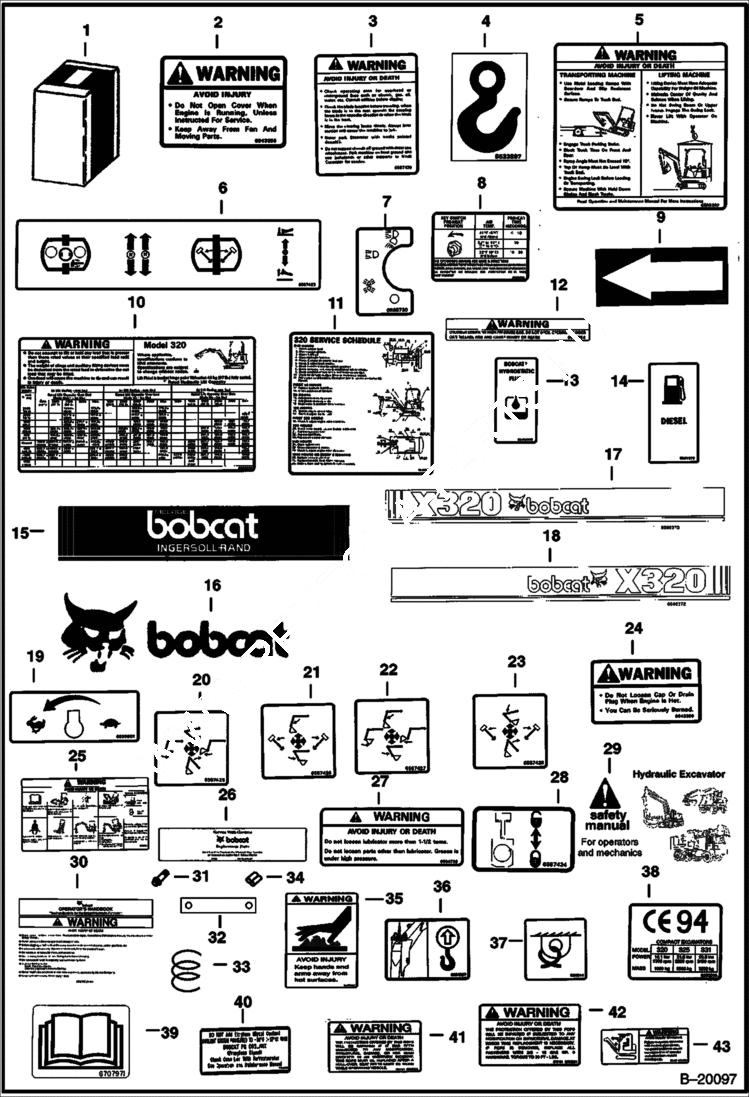

Запчасти Bobcat 320 DECALS ACCESSORIES & OPTIONS

1

6588854

KIT Decal - W/Refs. 2-25, 27, 28, 35 & 37

1

6595224

KIT Decal - W/Refs. 2, 3, 5-25, 27, 28, 35-37 & 39

1

DECAL KIT NLA - Order components - Decal - Spanish - W/Refs. 2, 3, 5, 8, 10 - 14, 24 - 27, 35 & 40 - Was 6801247 - A

2

6643355

DECAL Warning Engine Moving Parts

2

6720969

DECAL Warning Engine Moving Parts - Spanish

3

6587139

DECAL Warning

3

6801512

DECAL Warning - Spanish

4

6533897

DECAL Hook

5

6804231

DECAL Warning Was 6588382 - A

5

6801513

DECAL Warning - Spanish

6

6587423

DECAL Controls

7

6588730

DECAL Lights

8

6589058

DECAL Pre-Heat

8

DECAL KIT NLA - Order components - Pre-Heat - Was 6801247 - A

9

6533899

DECAL Arrow

10

6588379

DECAL Lift Chart

10

6589743

DECAL Lift Chart

10

6595600

DECAL Lift Chart - Spanish

11

6588381

DECAL Service Schedule - W/O Inline Filter

11

6628904

DECAL Service Schedule - With Inline Filter

11

DECAL KIT NLA - Order components - Service Schedule - With Inline Filter - Spanish - Not used on 320-20000 Excavators - Was 6801247 - A

12

6577754

DECAL, WARNING 5 gas spring

12

6712216

DECAL Warning Gas Spring - Spanish

13

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

13

6712209

DECAL Hydraulic Fluid - Spanish

14

6589739

DECAL Diesel - Was 6561379 - B

14

DECAL Diesel - Spanish NLA - Diesel - spanish - Was 6595576 - A

15

DECAL NLA - Bobcat Rear Logo - Was 6628508 - A

16

6560987

DECAL Bobcat

17

6588373

DECAL Model

18

6588372

DECAL Model

19

6539688

DECAL Speed

20

6587425

DECAL RH ISO controls

21

6587426

DECAL LH ISO controls

22

6587427

DECAL RH standard

23

6587428

DECAL LH standard

24

6804233

DECAL Warning Radiator - Was 6643356 - A

24

6720971

DECAL Warning Radiator - Spanish

25

6807776

DECAL Warning - Was 6588380 - A

25

6801514

DECAL Warning - Spanish

26

6565200

DECAL, FILTER

26

6712262

DECAL Filter - Spanish

27

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

27

6801504

DECAL Track Adjustment - Spanish

28

6809713

DECAL Warning Swing Lock - Was 6587424 - A

29

6570354

MANUAL Safety

30

6900465

HANDBOOK Operators - English - Was 6596919 - A

31

29CM812

BOLT For Attaching The Strap To The Cab

32

6589347

STRAP Elastic - For Holding The Operator Handbook

33

6558309

WIRE ROPE 46'' (1170mm) Long - Bulk Sold Per Foot - Also Order (2) of 6558310 sleeve

34

6558310

SLEEVE

35

6804232

DECAL Warning - Was 6589697 - A

35

6595588

DECAL Warning - Spanish

36

6594897

DECAL Boom Lifting

37

6727595

DECAL Was 6595014 - B

38

6596424

DECAL CE94 - not used on models sold in the U.S. - Was 6595015 - A

39

DECAL NLA - Operators Manual - Was 6707971 - A

40

6708929

DECAL, COOLANT propylene glycol

40

6712215

DECAL PG Coolant - Spanish

41

6596361

DECAL Warning - ROPS

42

6596261

DECAL Warning - FOPS

43

6596163

DECAL Warning - FOGS
