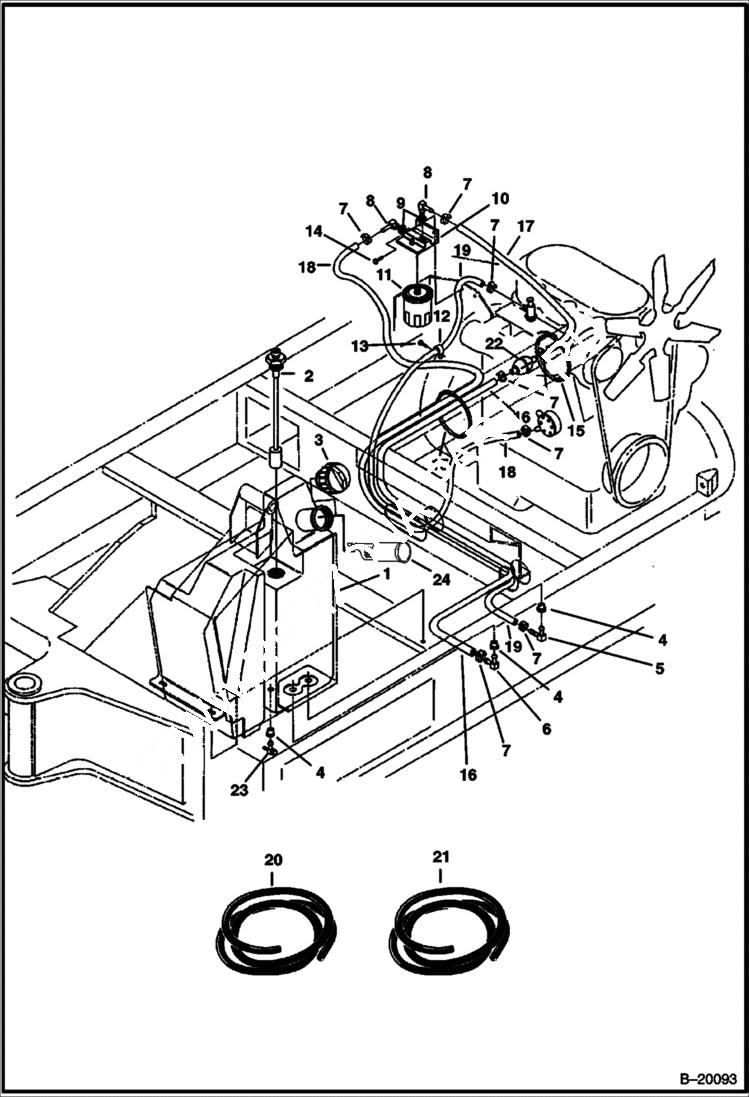

Запчасти Bobcat 320 FUEL SYSTEM POWER UNIT

1

6589122

TANK Fuel - Was 6588069 - A

2

6661670

SENSOR Fuel - Includes O-Ring

2

79K14

O RING 10 Was 25K040102B - B

3

6665423

CAP Was 6661114 - A

4

6553411

BUSHING 0.38'' ID

5

6630041

ELBOW

6

6553412

ELBOW

7

42HS04

CLAMP, HOSE Was 6515575 - A

8

ELBOW NLA - W/Ref. 9 - flat boss face - Was 6657083 - A

8

6715183

ELBOW W/Ref. 9 - Check boss face to determine correct replacement o-ring

9

79K5

O RING 10 flat boss face

9

99K5

O-RING tapered boss face

10

6667353

FILTER ASSY W/Ref. 11 - Was 6657020 - A

10

6658180

PLUG, BLEED

11

6667352

FILTER, FUEL W/SEPARATOR 12 Was 6647773 - A

12

30H31

CLAMP 10 Was 30H000030B - B

13

1CM1060

BOLT

14

26GM8016

SCREW Was 1CM00820B - B

15

6624289

STRAP, TIE

16

HOSE NLA - Order Ref. 20 - 44'' (1110 mm) long

17

HOSE NLA - Order Ref. 20 - 10'' (250 mm) long

18

HOSE NLA - Order Ref. 20 - 39'' (990 mm) long

19

HOSE NLA - Order Ref. 21 - 48'' (1200mm) long

20

6577822

HOSE bulk - sold per foot

21

6578169

HOSE bulk - sold per foot - 0.19'' ID

22

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

23

6663951

VALVE Shut-Off

24

6595036

SCREEN Fuel - Not Supplied W/Excavator - Available Thru Chicago Parts Only
