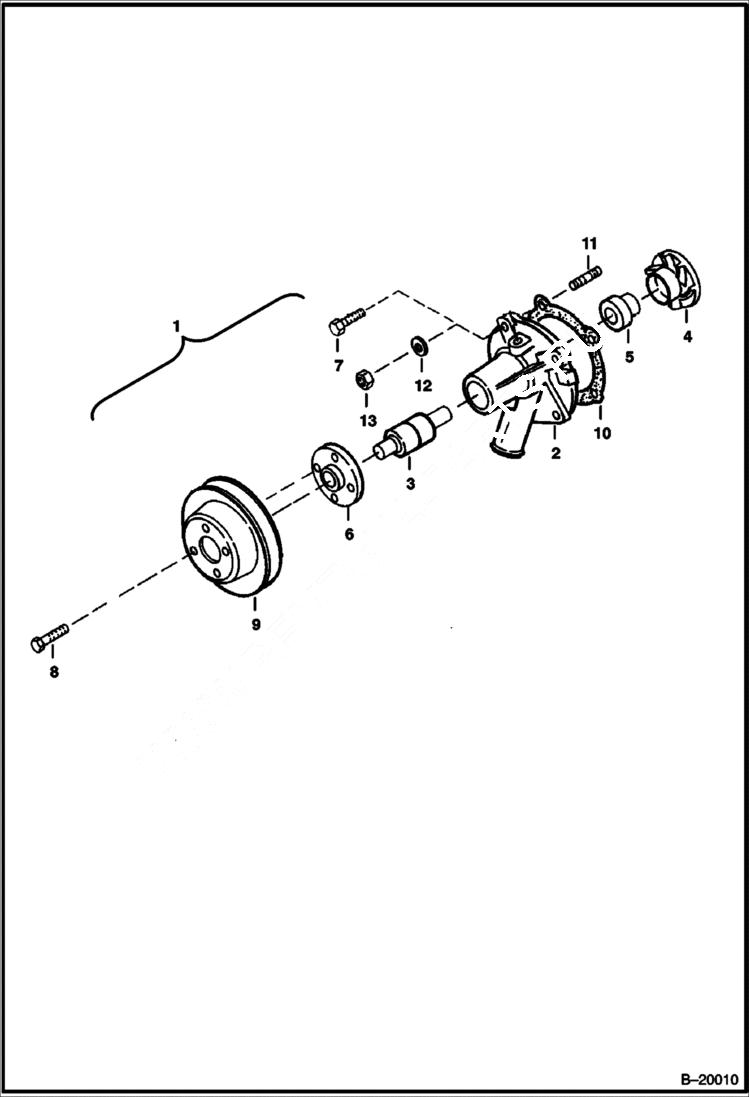

Запчасти Bobcat 320 WATER PUMP POWER UNIT

1

6652753

PUMP ASSY. Ref. 2-6

2

BODY NSS

3

6652756

BEARING

4

6652758

IMPELLER

5

6652757

SEAL

6

6652755

FLANGE

7

1CM625

BOLT Was 4CM625 - A

8

29CM612

BOLT, FLANGED Was 6652762 - A

9

6599063

PULLEY

10

6666797

GASKET See Illustration LOWER GASKET KIT/ C3244 Included W/lower gasket kit - Was 6599120 - A

11

6599750

STUD

12

6EM60

WASHER, SPRING Spring

13

1DM6

NUT
