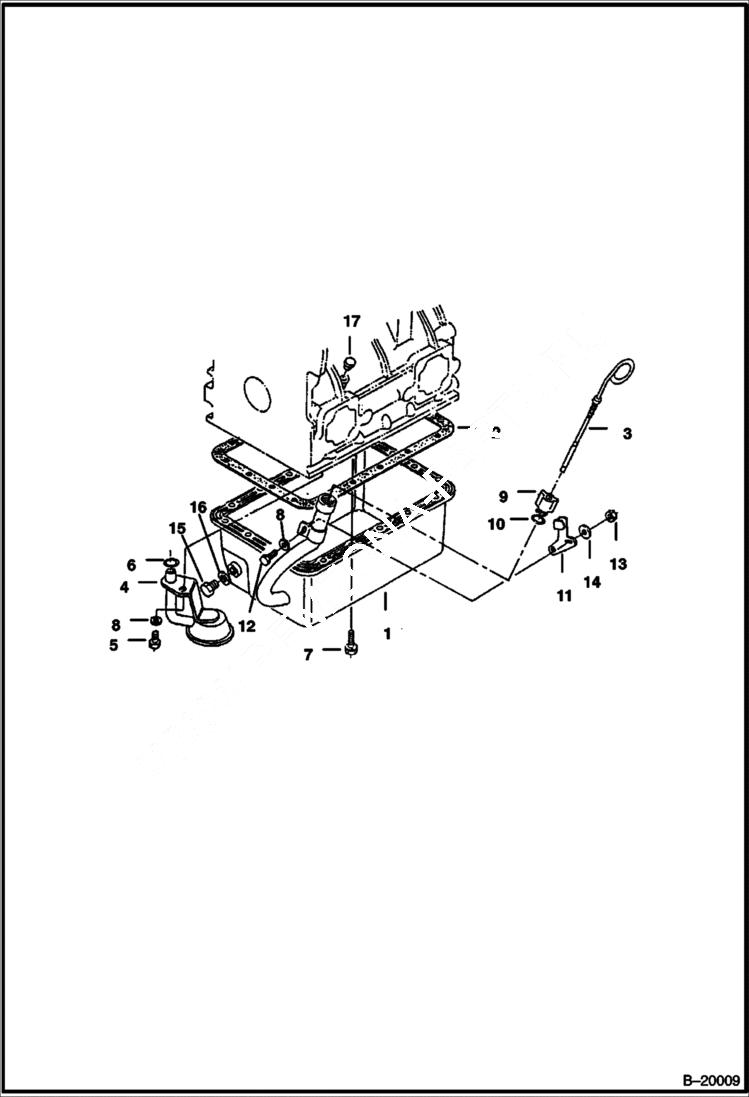

Запчасти Bobcat 320 OIL PAN POWER UNIT

1

6641350

PAN W/Adapter

2

6666798

GASKET See Illustration LOWER GASKET KIT/ C3244 Included W/lower gasket kit - Was 6599111 - A

3

6599145

DIPSTICK

4

6652650

SCREEN Oil Pickup

5

1CM816

BOLT Was 4CM816 - A

6

6599983

O-RING See Illustration LOWER GASKET KIT/ C3244 Included Wlower gasket kit

7

6652582

BOLT

8

6EM80

WASHER, SPRING

9

6599144

PLUG

10

6652791

O-RING See Illustration LOWER GASKET KIT/ C3244 Included W/lower gasket kit

11

BRACKET NLA - Was 6599146 - A

12

1CM818

BOLT Was 4CM818 - A

13

6652792

NUT

14

1EM80

WASHER

15

3390195

PLUG

16

6631046

SEAL sealing

17

6657048

PLUG
