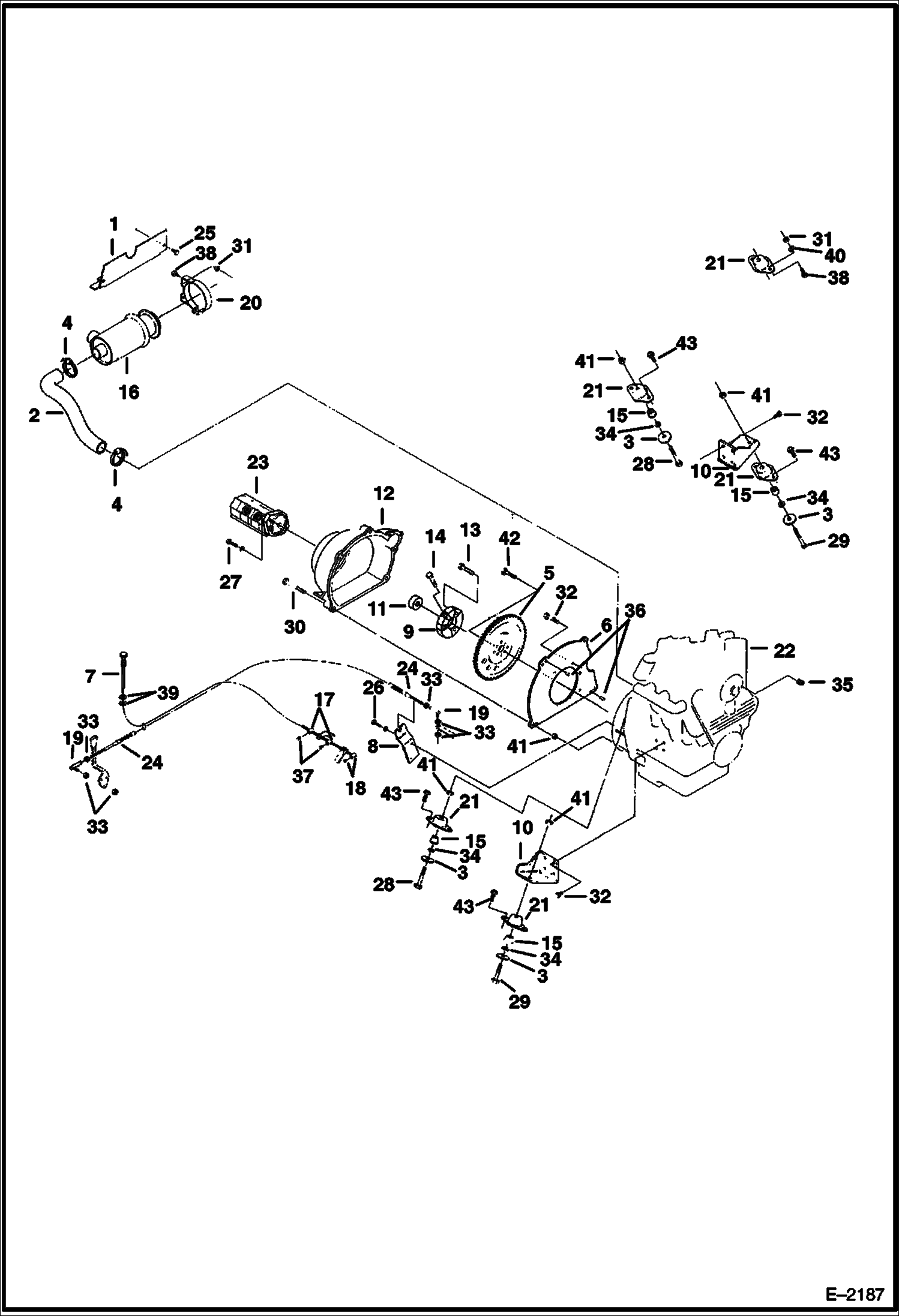

Запчасти Bobcat 320 ENGINE, AIR CLEANER AND FLYWHEEL MOUNTING POWER UNIT

1

6588153

BAFFLE Use On Early Machines Only

2

6588280

HOSE

3

872229

WASHER

4

42H24

CLAMP-5 Was 6513595 - A

5

6534772

FLYWHEEL

5

6562279

RING GEAR Starter Ring

6

6534773

PLATE

7

6661772

CABLE Fuel Shut Off

8

6534790

BRACKET

9

6535210

COUPLER Rubber Coupler

10

6588927

MOUNT

11

6588888

COUPLING Pump - Was 6536546 - A

11

6588644

COUPLING Pump

12

HOUSING NLA - Flywheel - Order 6588889 and 6588888 (1) - Was 6536892 - A

12

6588889

HOUSING Flywheel

13

6537020

BOLT

14

6537021

BOLT

15

6804522

SPACER Was 6537468 - A

16

AIR CLEANER See Illustration ENGINE AIR CLEANER/ B17728

17

6586303

RETAINER Cable

18

STOP NLA - Was 6599481 - A

19

6630661

BALL JOINT

20

6633630

CLAMP Air Cleaner

21

6653764

MOUNT Also order Spacer 6804522 - 1 per mount

22

ENGINE See Illustration ENGINE/ B20008

23

PUMP See Illustration GEAR PUMP/ B20155 See BTIE-025

24

6658855

CABLE Speed Control

25

1CM812

BOLT

26

1CM825

BOLT

27

3GM1025

BOLT hex torque

27

29CM1025

BOLT flange head

28

1CM1060

BOLT Was 1CM01055B - A

29

BOLT NLA - Was 7CM0065B - A

30

1CM1075

BOLT

31

1DM8

NUT Use On Early Models Only

32

5CM1020

SCREW

33

14D10

NUT

34

15EM100

WASHER

35

16F2

PLUG

36

21JM814

PIN dowel

37

33G404

SET SCRW5

38

1CM816

BOLT Use On Early Models Only

39

25E17

WASHER 5

40

7EM80

WASHER Use On Early Models Only

41

49DM10

NUT

42

6661636

BOLT

43

26GM8016

SCREW Self Tapping
