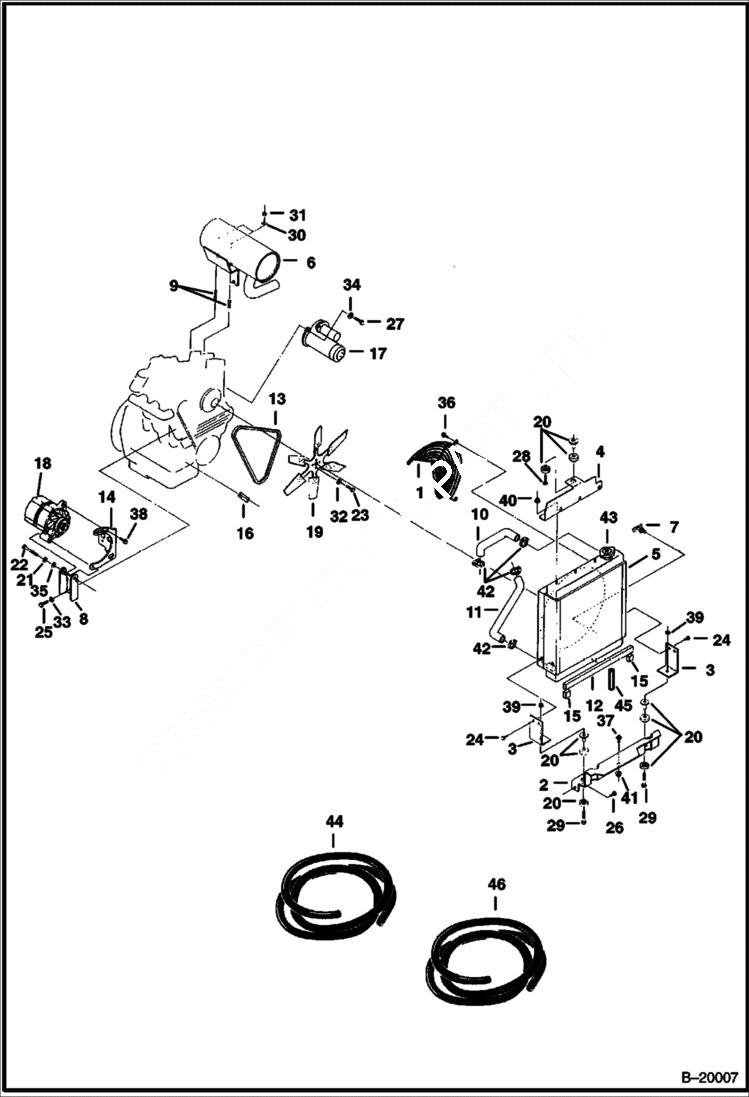

Запчасти Bobcat 320 RADIATOR, AIR CLEANER & MUFFLER MOUNTING POWER UNIT

1

6587632

GUARD Fan

2

6588157

MOUNT Lower Radiator

3

6588158

BRACKET

4

6588159

BRACKET Top Radiator

5

6664487

RADIATOR W/Ref. 43 - Was 6662984 - A

6

MUFFLER NLA - Spark Arrester - Was 6662985 - A

6

6664247

MUFFLER Exhaust Purifier

7

6513679

VALVE Drain

8

6587524

MOUNT

9

6533138

STUD

10

6534727

HOSE

11

6534728

HOSE

12

INSULATION NLA - Order Ref. 44 - 17'' (432mm) long

13

6534779

V-BELT

14

6587270

BRACKET

15

INSULATION NLA - Order Ref. 44 - 8'' (203mm) long

16

6535470

CLAMP

17

STARTER See Illustration STARTER/ B1192 See Illustration STARTER (SEALED)/ B20006

18

ALTERNATOR See Illustration ALTERNATOR/ B25158 See BTIE-022 - NLA

19

6653762

FAN 6-blade

20

6653763

MOUNT

21

4E6

WASHER

22

17C656

BOLT

23

1CM616

SCREW

24

1CM816

BOLT

25

1CM820

BOLT

26

1CM1020

BOLT

27

1CM1025

BOLT

28

1CM1065

BOLT

29

1CM1045

BOLT

30

1EM100

WASHER

31

2DM10

NUT

32

6EM60

WASHER, SPRING

33

7EM80

WASHER

34

7EM100

LOCKWSHR

35

25E17

WASHER 5

36

29CM816

SCREW

37

29CM1025

BOLT

38

35C516

BOLT 10

39

49DM10

NUT

40

42DM8

NUT

41

42DM10

NUT

42

42H16

CLAMP, HOSE 5

43

6646545

CAP Radiator

44

6554274

INSULATION Bulk - Sold Per Foot

45

HOSE NLA - Order Ref. 46 - 9'' (229mm) long

46

6577822

HOSE bulk - sold per foot
