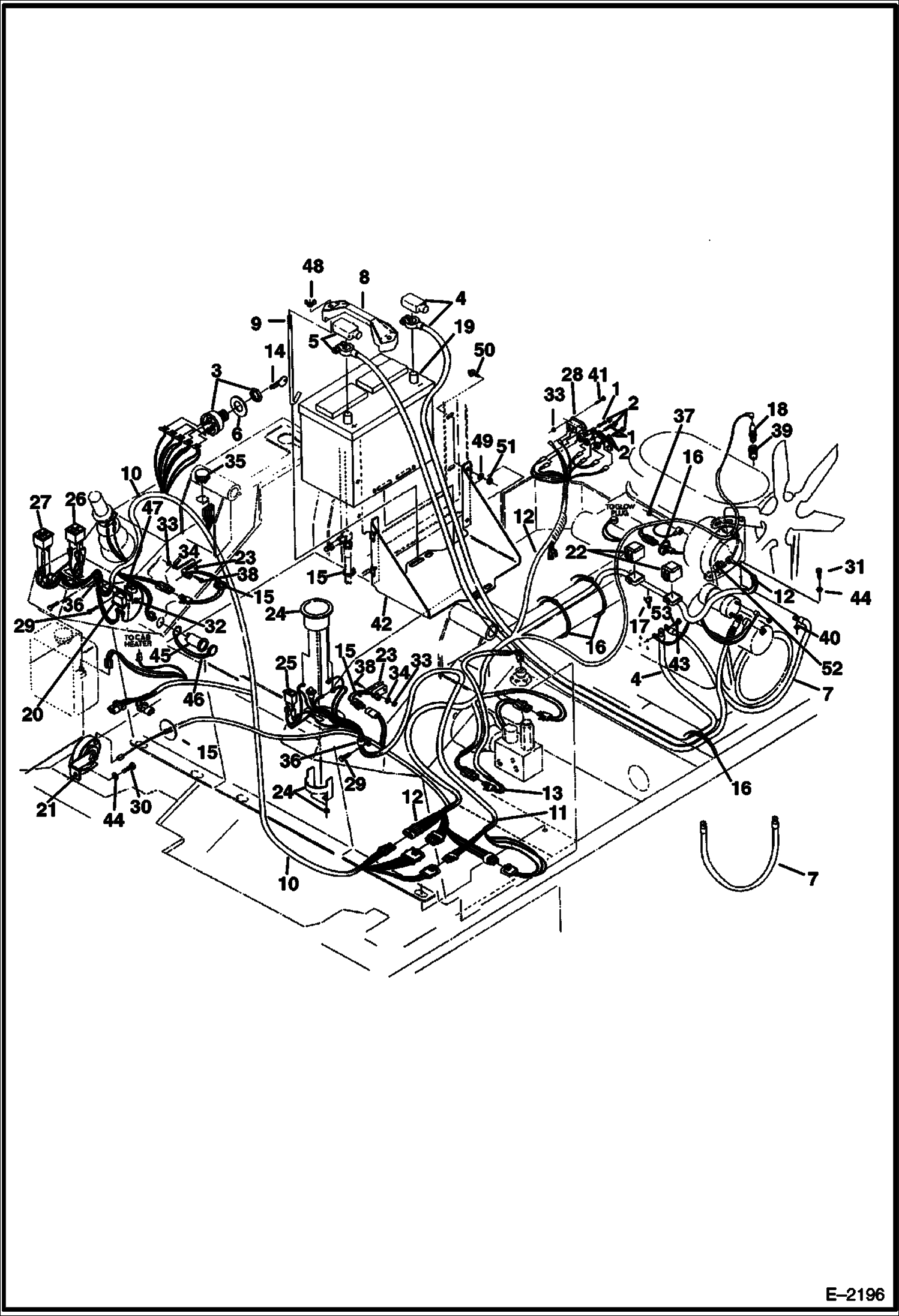

Запчасти Bobcat 320 ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

1319451

FUSE 5 25 amp

2

6513469

HOLDER

3

SWITCH See BTIE-041 NLA - Ignition

3

6666548

SWITCH See BTIE-041 Ignition

4

6588390

CABLE Negative

4

6599652

BOOT Incl. W/Ref. 4

5

6534847

CABLE Positive - 68'' (1727 mm) long

5

6564991

CABLE Positive - 48'' (1219 mm) long

5

2356058

BOOT Incl. W/Ref. 5

6

6537439

PLATE Ignition - Used With Ignition Switch 6661613

6

6596217

PLATE Ignition - Used With Ignition Switch 6666548

7

6565170

CABLE neg

8

6569203

CLAMP

9

6588310

BOLT Batter Clamp

10

6588493

HARNESS R.H. Console

10

3675725

DIODE

11

6586964

HARNESS L.H. console

12

6588494

HARNESS Engine

13

6587177

HARNESS Fuel Sender

14

6587458

KEY

15

6610510

TIE Was 1715312B - A

16

6624289

STRAP, TIE

17

6630586

CLIP

18

6630821

SWITCH Water Temperature

19

6670251

BATTERY, DRY 530 AMP Was 6665093 - A

20

6644960

BUZZER

21

6665105

ALARM Was 6662635 - A

22

6651975

SWITCH Magnetic

23

6661150

SWITCH, ROLLER MICRO Micro

24

6661406

GAUGE Fuel

25

6661597

LAMP Indicator - low fuel

26

6661598

LAMP Battery & Glow Plug

27

6661599

LAMP Indicator - Water Temp. & Oil Pressure

28

6664886

HOURMETER Was 6631657 - A

29

29CM616

BOLT Was 1CM00616B - A

30

26GM8016

SCREW Was 1CM00812B - A

31

1CM1020

BOLT

32

1DM6

NUT

33

12D6

NUT 10

34

12E6

WASHER

35

6512808

SWITCH Light

36

30H46

CLIP

37

62D4

NUT

38

85G616

SCREW 10

39

97F5

BUSHING

40

1DM10

NUT

41

87G610

SCREW

42

6588309

BRACKET

43

5CM1020

SCREW

44

WASHER NLA - Was 20EM0080B - A

45

6664223

OUTLET Elec. Accessory

46

6664224

CAP

47

30H42

CLAMP

48

35DM80

NUT

49

6EM80

WASHER, SPRING

50

29CM816

SCREW

51

1DM8

NUT

52

6969775

SWITCH, OIL PRESSURE Oil Pressure - Was 6652576 - A

53

10EM100

WASHER
