Запчасти Bobcat 320 VALVE SECTION (Blade & Boom Swing) (S/N 511721412 & Above) HYDRAULIC SYSTEM

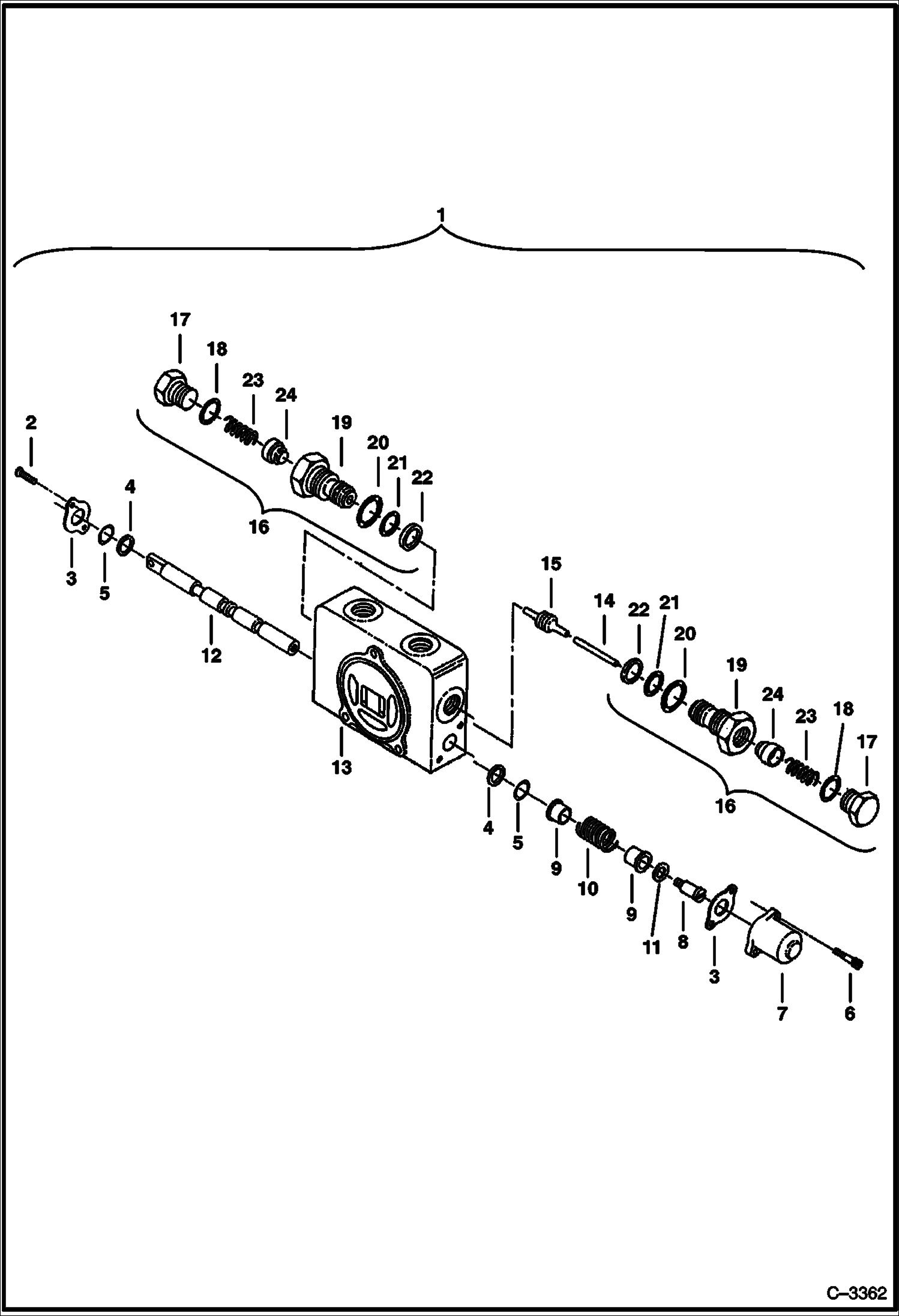

Схема запчастей Bobcat 320 - VALVE SECTION (Blade & Boom Swing) (S/N 511721412 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6665468

VALVE Section-Blade & Boom Swing- W/Refs. 2-24

2

93G406

SCREW

3

948016

PLATE

4

25K30018

O RING 10

5

948021

SEAL wiper

6

73G412

SCREW

7

948192

CAP

8

948191

CAPSCREW

9

948017

SEAT Spring

10

948018

SPRING Was 6665433 - A

11

6665465

STOP

12

SPOOL NSS - Order Ref. 1

13

HOUSING NSS - Order Ref. 1

14

6665464

PIN

15

6665462

SPOOL

16

6665463

VALVE ASSY. Lock out - W/Refs. 17-24

17

6665470

PLUG

18

79K6

O RING 10 Was 6665471 - A

19

HOUSING NSS - Valve - Order Ref. 16

20

79K10

O RING 10

21

58K016

O-RING 10 Was 6665473 - A

22

6665474

BACK-UP RING

23

6665472

SPRING

24

6670696

POPPET Order Ref. 16

Выбрано товаров: 24
