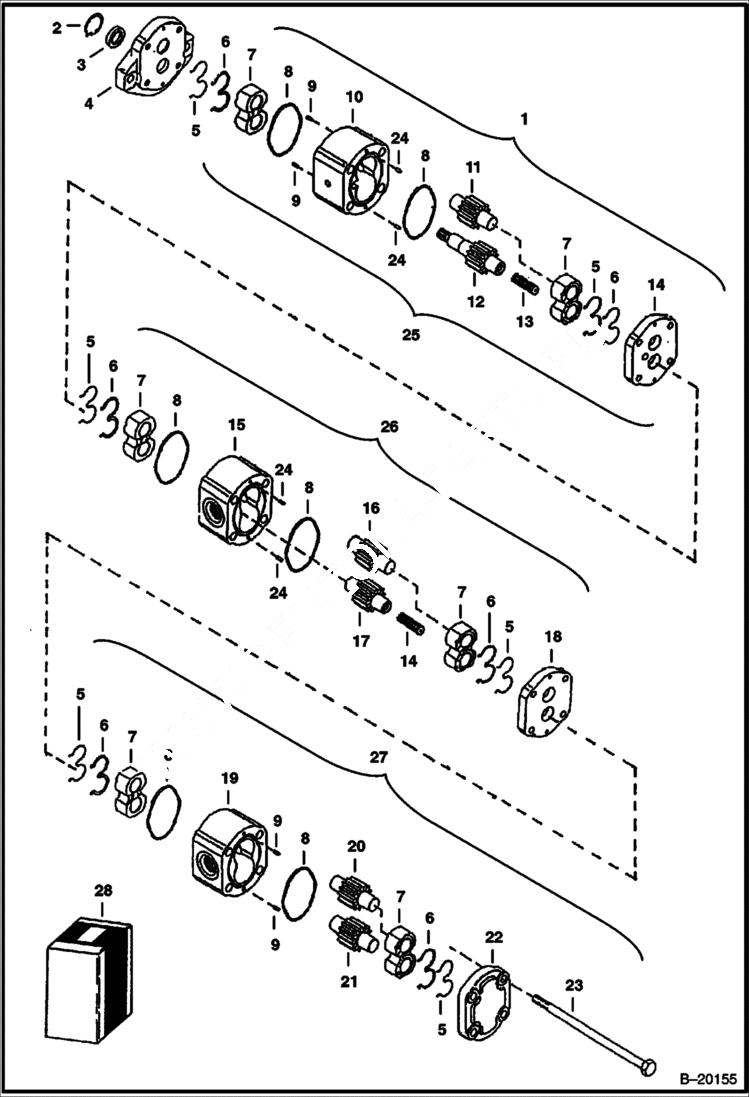

Запчасти Bobcat 320 GEAR PUMP (Barnes) HYDRAULIC SYSTEM

1

PUMP See BTIE-025 - NLA - W/Ref. 2-24 - Was 6664309 - A

2

6662925

SNAP RING

3

6662926

SEAL Incl. W/Ref. 28

4

6663978

COVER Front

5

BACK-UP RING NSS - Incl. W/Ref. 28

6

SEAL NSS - Incl. W/Ref. 28

7

6663979

BEARING

8

O-RING NSS - Incl. W/Ref. 28

9

6662929

DOWEL PIN .403'' (10,25mm) long

10

HOUSING NSS - Incl. W/Ref. 25

11

GEAR NSS - Idler - Incl. W/Ref. 25

12

GEAR NSS - Drive - Incl. W/Ref. 25

13

6663984

SHAFT Drive

14

6663989

PLATE

15

HOUSING NSS - Incl. W/Ref. 26

16

GEAR NSS - Idler - Incl. W/Ref. 26

17

GEAR NSS - Drive - Incl. W/Ref. 26

18

6664583

PLATE

19

HOUSING NSS - Incl. W/Ref. 27

20

GEAR NSS - Idler - Incl. W/Ref. 27

21

GEAR NSS - Drive - Incl. W/Ref. 27

22

6662932

COVER End

23

6667553

BOLT

24

6665621

DOWEL PIN .716'' (18,2mm) long

25

6664580

SECTION KIT Incl. Refs. 5 (2), 6 (2), 7 (2), 8 (2), 9 (2), 10 (1), 11 (1), 12 (1),13 (1) & 24 (2)

26

6664581

SECTION KIT Incl. Refs. 5 (2), 6 (2), 7 (2), 8 (2), 9 (1), 15 (1), 16 (1), 17 (1) & 24 (2)

27

SECTION KIT NLA - incl. Refs. 5 (2), 6 (2), 7 (2), 8 (2),9 (2), 19 (1), 20 (1), 21 (1),22 (1) & 23 (4) - Was 6664582 - A

28

6663990

SEAL KIT Incl. Refs. 3 (1), 5 (6), 6 (6) & 8 (6)
