Запчасти Bobcat 319 WATER PUMP POWER UNIT

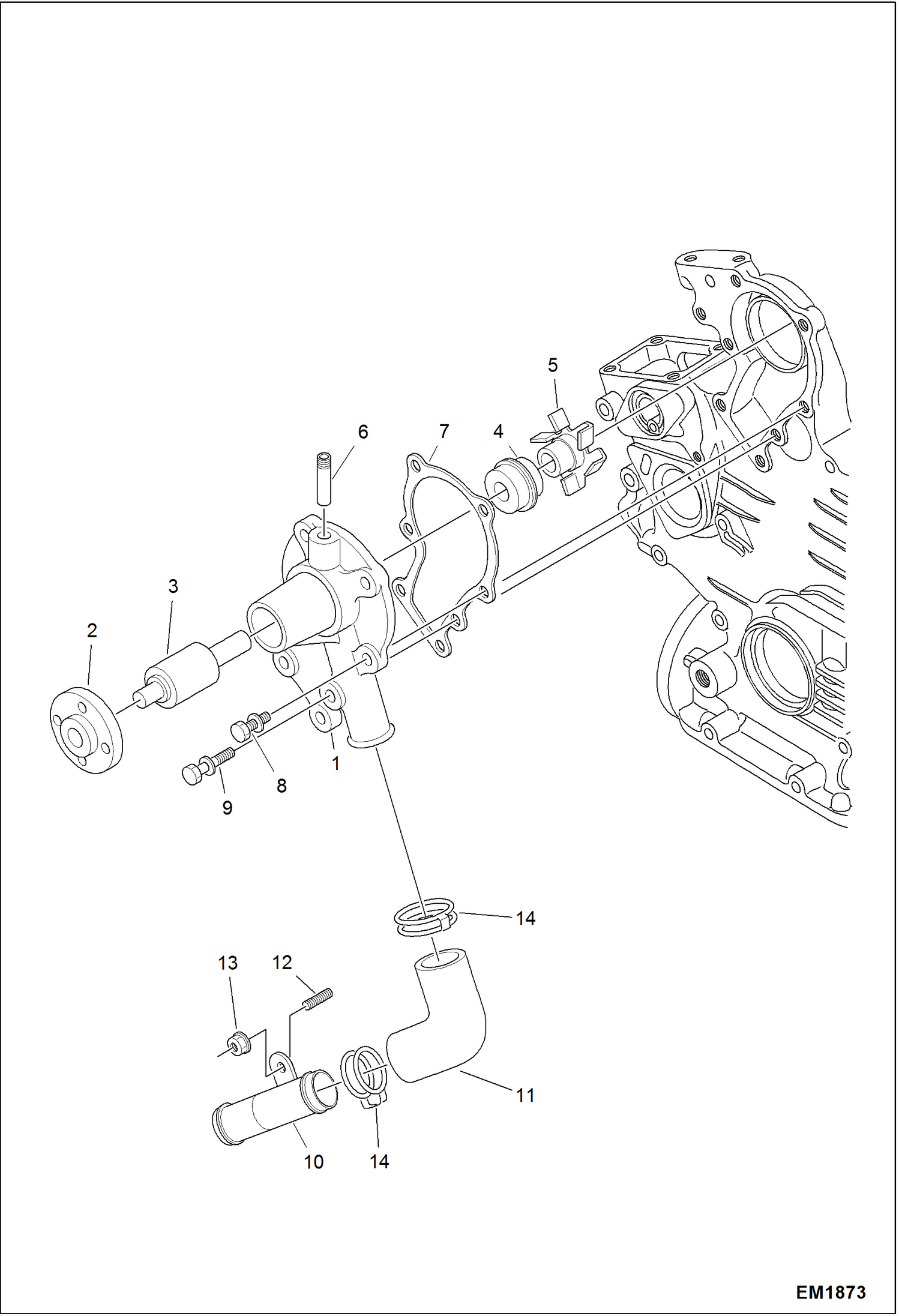

Схема запчастей Bobcat 319 - WATER PUMP POWER UNIT

Артикул

Название

Примечание

Количество

1

7017981

ASSY, WATER PUMP W/Ref. 2-10 - Was 6688088 - A

2

6599062

FLANGE Was 6653565 - A

3

6670507

BEARING

4

6657432

SEAL Was 6653566 - A

5

6687680

IMPELLER

6

6652745

PIPE Was 6653567 - A

7

7000377

GASKET, PUMP WATER Was 7000394 - B,D

8

6653584

BOLT

9

6670510

BOLT

10

HOUSING NLA - Order Ref. 1

11

6688087

HOSE

12

6683087

STUD

13

6670533

NUT Was 6653561 - A

14

6687666

CLAMP

15

6688086

PIPE

Выбрано товаров: 15
