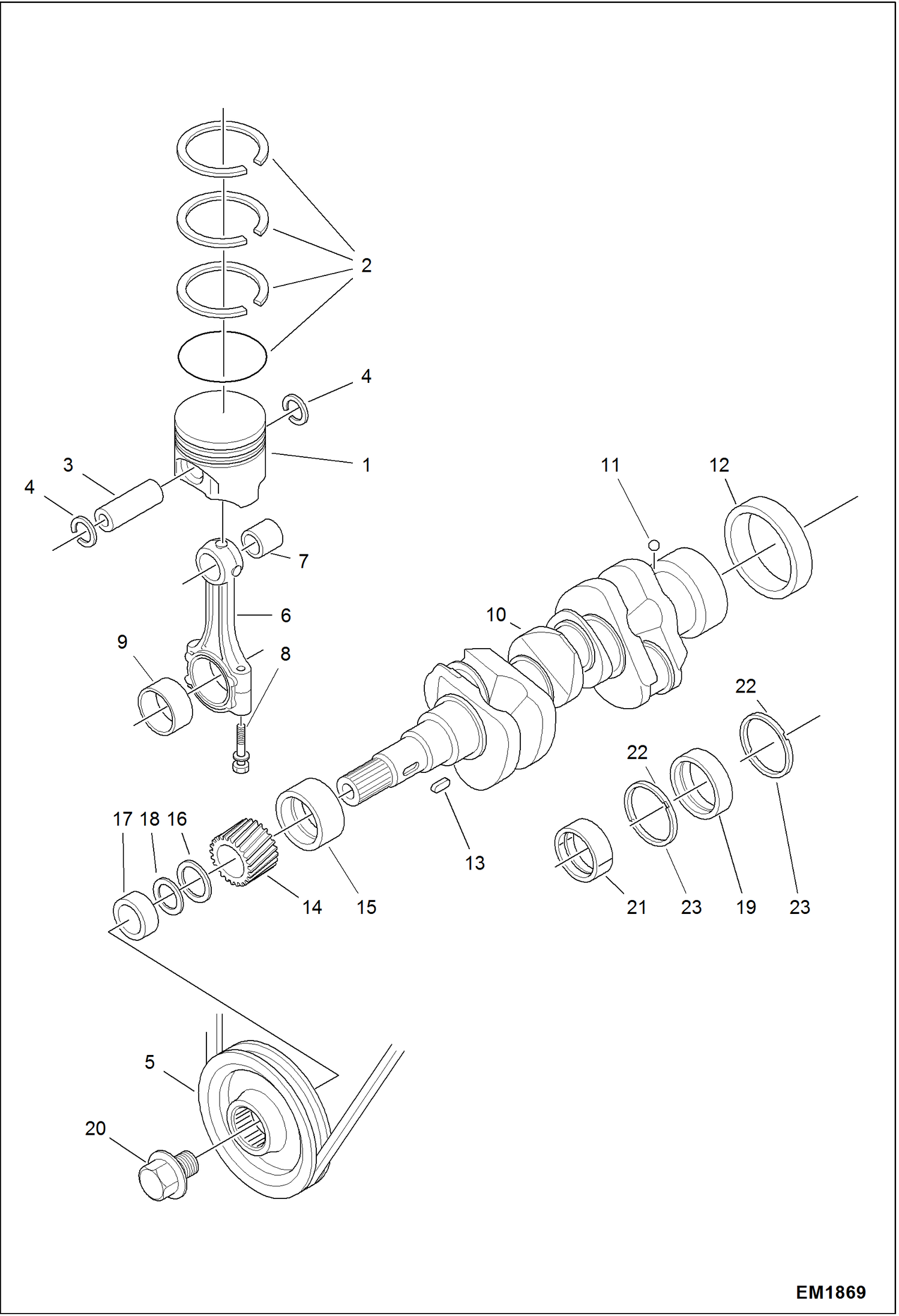

Запчасти Bobcat 319 PISTON AND CRANKSHAFT POWER UNIT

1

6670393

PISTON Standard

1

6670394

PISTON 0.01'' (0,25 mm) oversize

2

6670395

RING ASSY for Standard

2

6670396

RING ASSY for 0.01'' (0,25 mm) oversize

3

6670397

PIN

4

3974216

RING

5

6690166

ROD, CONNECTING W/Ref. 6-8 Was 6670398

6

ROD NLA

7

6670399

BUSHING

8

6670400

BOLT

9

6670401

BEARING Standard

9

6670402

BEARING 0.79'' (0,2 mm)

9

6670403

BEARING 0.157'' (0,4 mm)

10

6670404

CRANKSHAFT W/Ref. 11-12

11

6683013

BALL

12

3986830

SLEEVE

13

6670405

GEAR

14

3974226

KEY

15

6670408

BEARING Standard

15

6670407

BEARING 0.79'' (0,2 mm)

15

6670406

BEARING 0.157'' (0,4 mm)

16

6670414

OIL SLINGER

17

6670413

COLLAR

18

6683014

SEAL

19

7023260

BEARING, ENG CRANKSHAFT std - rear - (1) bearing - Was 6670412 - A

19

6660336

BEARING 0.79'' (0,2 mm)

19

6660337

BEARING 0.157'' (0,4 mm)

20

6670784

BOLT

21

BEARING, MAIN Standard

21

6670410

BEARING 0.79'' (0,2 mm)

21

6670411

BEARING 0.157'' (0,4 mm)

22

6652636

WASHER Standard

22

6513613

WASHER 0.79'' (0,2 mm)

22

6513615

WASHER 0.157'' (0,4 mm)

23

6652637

WASHER Standard

23

6513614

WASHER 0.79'' (0,2 mm)

23

6513616

WASHER 0.157'' (0,4 mm)

24

6670783

PULLEY
