Запчасти Bobcat 319 GEARCASE POWER UNIT

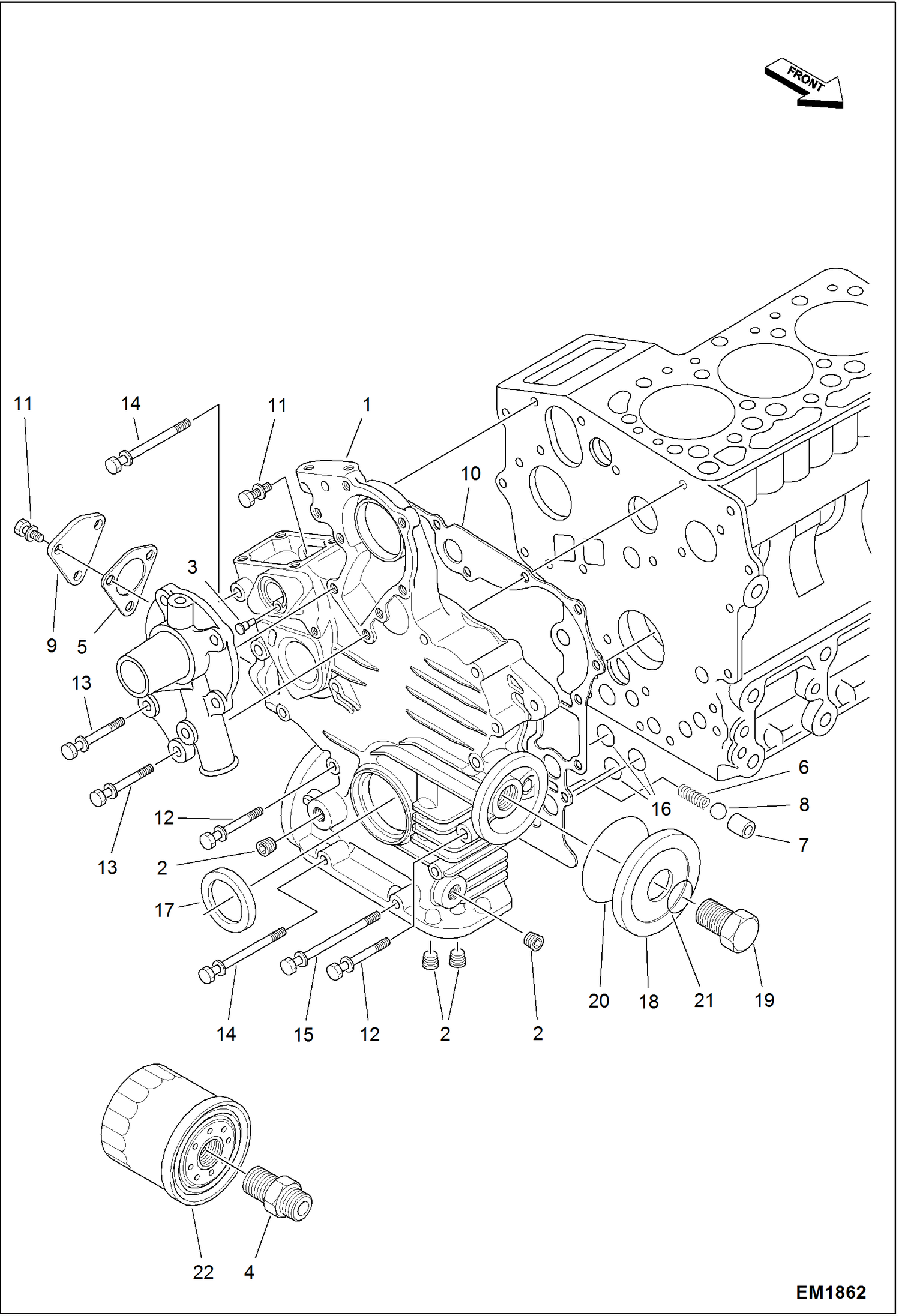

Схема запчастей Bobcat 319 - GEARCASE POWER UNIT

Артикул

Название

Примечание

Количество

1

6688074

COVER

2

6598170

PLUG

3

6670355

PIN

4

6652597

ADAPTER Was 6680633 - A

5

6688076

GASKET

6

6670359

SPRING

7

6670360

SEAT

8

6670361

BALL

9

7000378

COVER, PLATE Was 6670773 - A

10

6688057

GASKET

11

6652580

BOLT

12

6670770

BOLT

13

6670357

BOLT

14

6657414

BOLT

15

6687661

BOLT

16

6677915

SEAL

17

6670358

SEAL

18

6677913

COVER

19

6688075

BOLT

20

6657422

O-RING

21

6670769

O-RING

22

6671057

FILTER, OIL ENG 12

Выбрано товаров: 22
