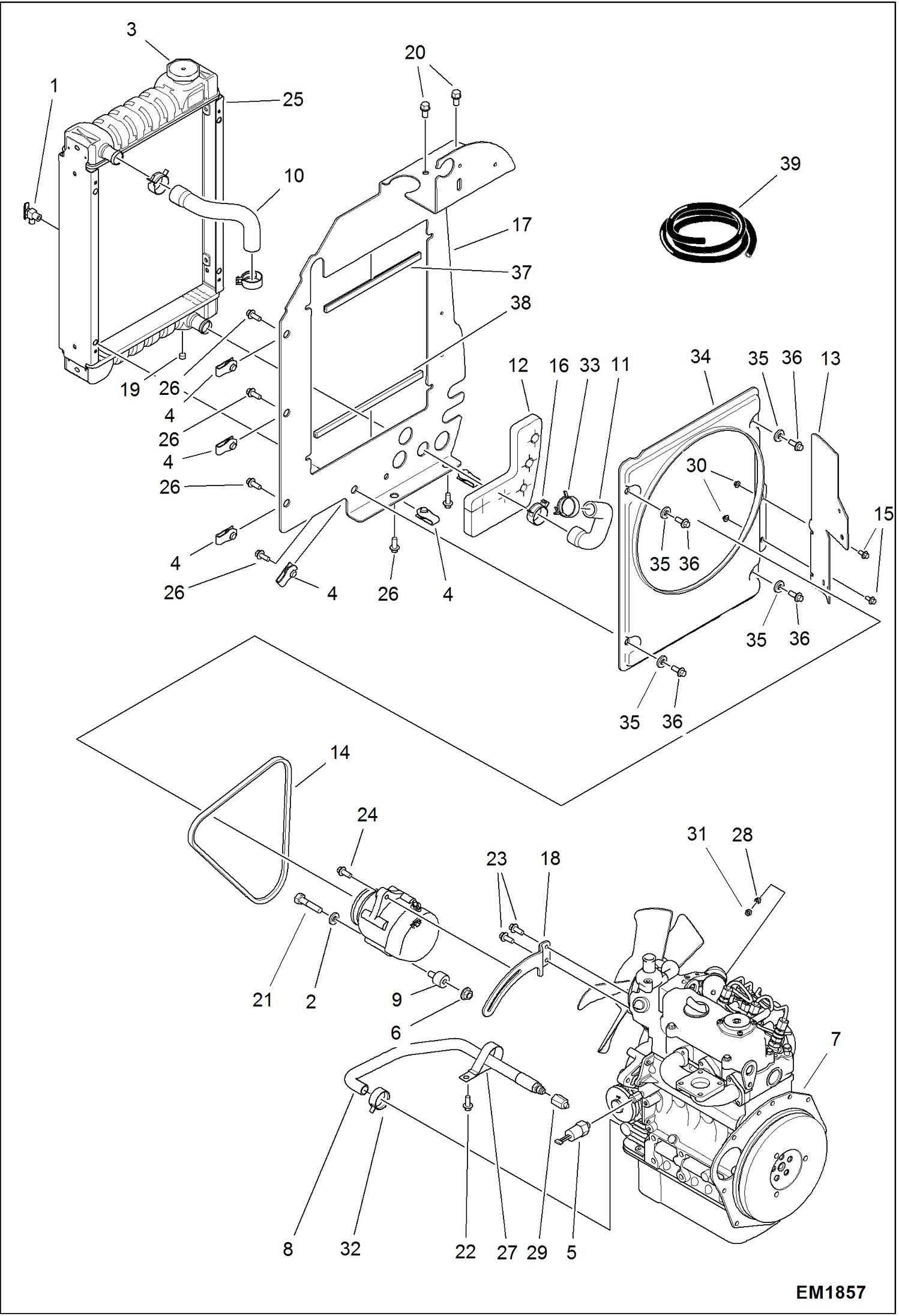

Запчасти Bobcat 319 ENGINE & ATTACHING PARTS (Radiator Water Exchanger) POWER UNIT

1

6513679

VALVE

2

6557831

WASHER

3

ALTERNATOR, 40 AMP See Illustration ALTERNATOR/ EM1855

4

6675722

NUT

5

6676053

SWITCH

6

51DM8

NUT Was 6676169 - A

7

6686978

ENG, D722 13.9 HP EPA T2 / EU STG II

8

6713504

HOSE

9

6713749

SPACER

10

6806885

HOSE

11

6807007

HOSE

12

6807443

INSULATION

13

6807614

GUARD

14

6808629

BELT

15

6810157

BOLT

16

5HM35

HOSECLAMP

17

7116323

PLATE RADIATOR

18

7116324

BRACKET, ALT

19

16F6

PLUG for canopy only Was 16F000006B - D

20

29CM816

SCREW

21

1CM875

BOLT

22

26GM8025

BOLT Was 26GM08020 - D

23

29CM616

BOLT

24

29CM820

SCREW

25

6677382

RADIATOR W/Ref. 40

26

29CM1025

BOLT

27

30HJ624

CLAMP

28

32DM60

NUT Was 32DM00060B - D

29

36K6

CAP

30

43DM6

NUT

31

53DM6

NUT

32

5HM20

CLAMP

33

5HM30

CLAMP Was 5HM00030B - D

34

7165613

SHROUD, FAN Was 7143257 - A

35

WASHER W/ old fan shield 7143257 only Was 17EM80 - A

36

29CM820

SCREW W/ new fan shroud 7165613 only Was 29CM850 - A

36

BOLT W/ old fan shield 7143257 only Was 29CM850 - A

37

SEAL, UPPER W/ old fan shield 7143257 only - NLA - 10.47'' (266 mm) long - Order Ref. 39

38

SEAL, BOTTOM W/ old fan shield 7143257 only - NLA - 11.81'' (300 mm) long - Order Ref. 39

39

6648416

SEAL BULK /FT W/ old fan shield 7143257 only - bulk - sold per foot

40

6673313

CAP
