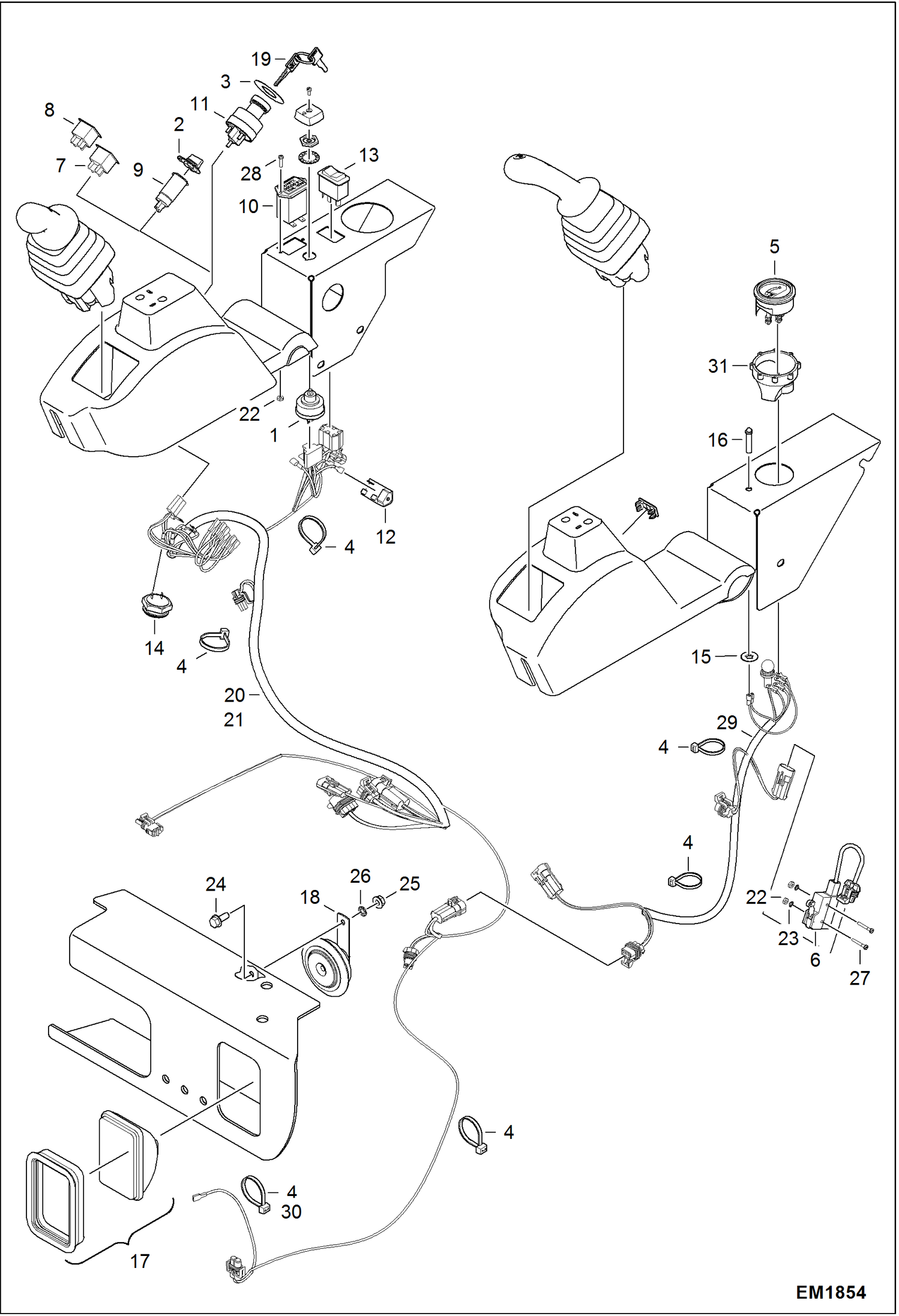

Запчасти Bobcat 319 ELECTRICAL CONSOLE ELECTRICAL SYSTEM

1

6512808

SWITCH

2

6664224

CAP

3

6596218

PLATE

4

6624289

STRAP, TIE

4

6624289

STRAP, TIE

5

6634273

GAUGE, FUEL

5

7017075

GAUGE, FUEL

6

6661150

SWITCH, ROLLER MICRO

7

6661598

LAMP

8

6661599

LAMP

9

6664223

OUTLET

10

6664886

HOURMETER

11

6691594

SWITCH IGNITION ASSY Was 6665606 - A

12

6673122

TIMER

13

6674025

SWITCH

14

6675705

ALARM

15

6675859

RETAINER

16

7227564

LIGHT, LED GREEN Was 6675908 - A

17

6676238

LIGHT

18

6665105

ALARM mounted W/bolt in vertical position Was 6688669 - A

18

6691276

ALARM, HORN mounted W/bolt in horizontal position

19

6709527

KEY, IGN 10

20

7105066

HARNESS RH CONSOLE

20

7136179

HARNESS

21

6567537

DIODE

21

6567537

DIODE

22

12D6

NUT 10

23

12E6

WASHER

24

29CM820

SCREW

25

43DM8

NUT

26

10EM80

WASHER

26

6E6

WASHER

27

85G616

SCREW 10

28

87G610

SCREW

29

7105067

HARNESS LH CONSOLE

30

6665314

PLUG

31

TIE, CABLE Was 6682345 - A
