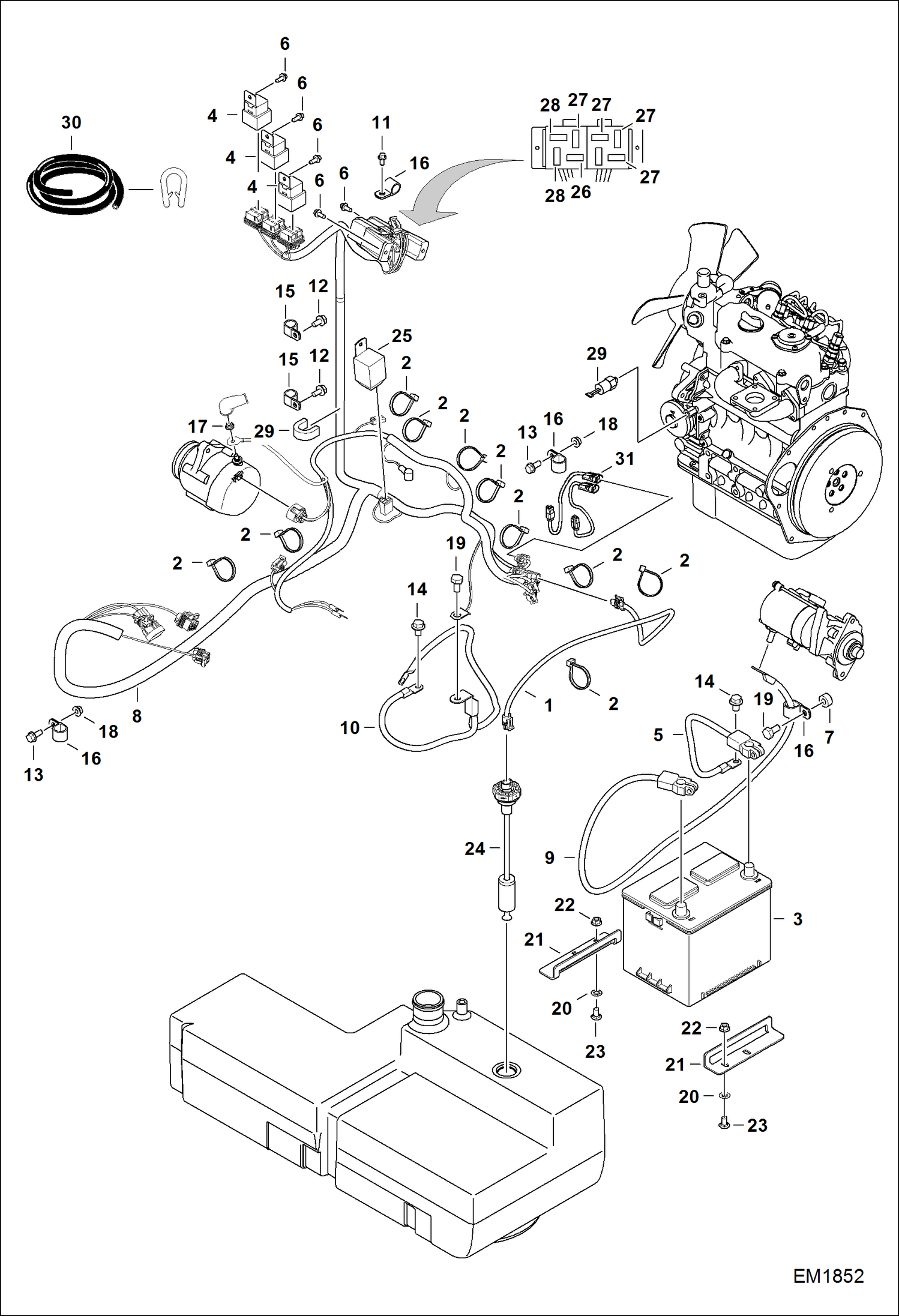

Запчасти Bobcat 319 ELECTRICAL INSTALLATION ELECTRICAL SYSTEM

1

6587177

HARNESS

2

6624289

STRAP, TIE

3

6670251

BATTERY, DRY 530 AMP 530 AMP

4

6670312

SWITCH, MAGNETIC relay

5

6807431

CABLE

6

6810157

BOLT

7

6810385

BUSHING

8

7105065

HARNESS ENGINE

8

6567537

DIODE

9

7105068

CABLE, POSITIVE

10

7105176

CABLE, NEGATIVE

11

26GM6016

SCREW

12

29CM812

BOLT

13

29CM816

SCREW

14

29CM1016

BOLT

15

30H38

CLIP

16

30H46

CLIP

17

43DM6

NUT

18

43DM8

NUT

19

5CM1020

SCREW

20

6675859

RETAINER

21

7102619

CLAMP BATTERY

22

1DM8

NUT

23

28CM816

BOLT Was 28CM00816B - D

24

7179838

SENSOR FUEL Was 6680437 - A

25

6670872

TIMER

26

6707620

FUSE, 10A MINI 5 10A

27

6707621

FUSE, 15A MINI 5 15A

28

6707622

FUSE, 20A MINI 5 20A
