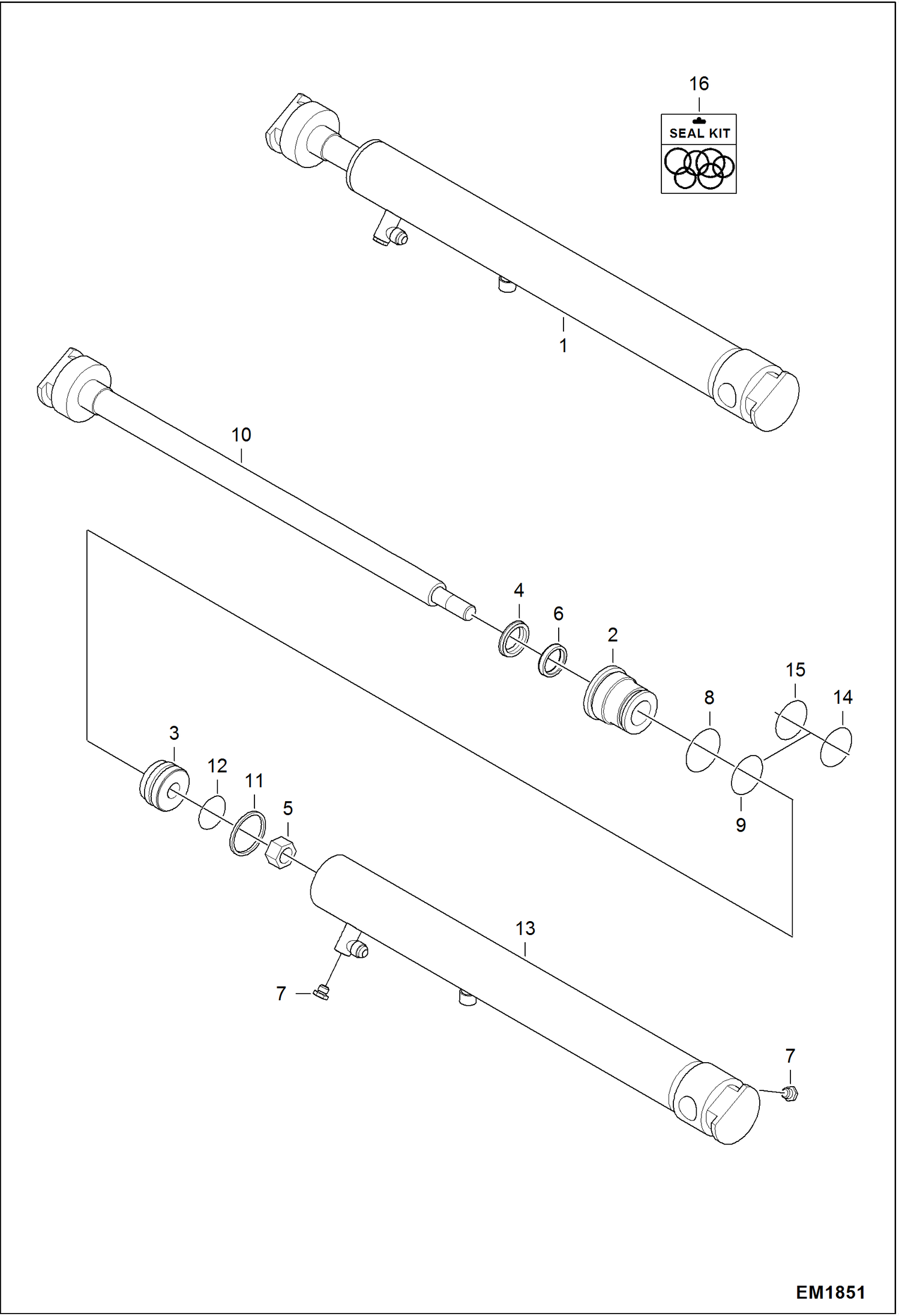

Запчасти Bobcat 319 TRACK CYLINDER HYDRAULIC SYSTEM

1

7114692

CYLINDERASSY 319K UC W/Ref. 2-16

2

6586542

HEAD

3

6586543

PISTON

4

7114696

TUBE ASSY SERVICE W/Ref. 5-8

5

TUBE NLA - Order Ref. 4

6

6812170

PLUG W/ O-ring - W/Ref. 7

7

75K3

O-RING

8

82K132

O-RING HYDRAULIC Was 58K132 - A

9

92D10

NUT

10

7114693

SHAFT W/A

11

6532453

RING

12

54K30110

O-RING Was 25K30110 - B

13

54K40116

O-RING Was 54K040116B - D

14

6667323

SEAL

15

73K222

RING Was 73K000222B - D

16

6666542

SEAL, WIPER ROD

17

7138014

SEAL KIT W/Ref. 8-9, 11-16 Was 6803473 - A
