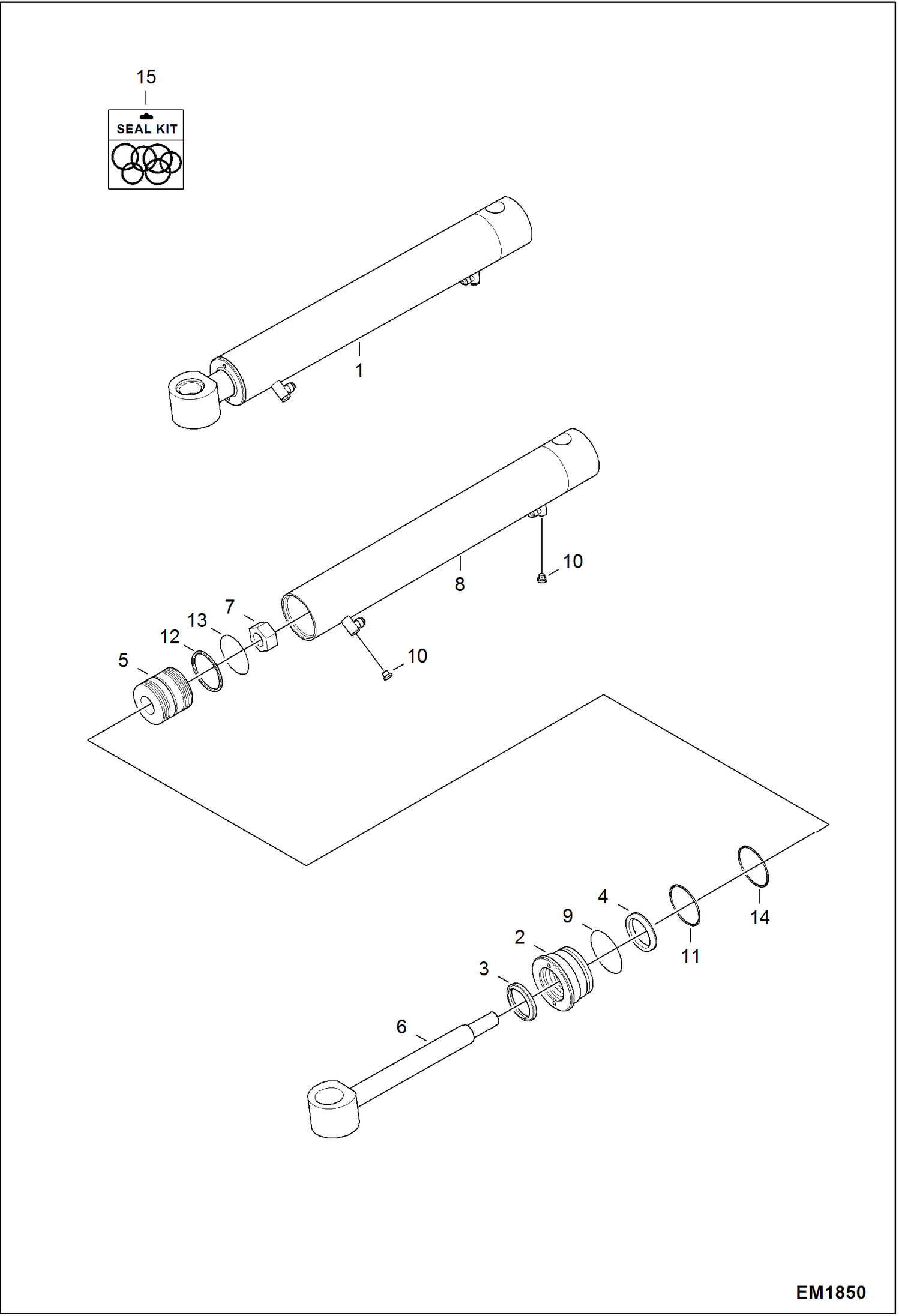

Запчасти Bobcat 319 SWING CYLINDER HYDRAULIC SYSTEM

1

7102920

CYL ASSY 319 SWING W/Ref. 2-16

2

6586342

HEAD

3

6665208

SEAL

4

6667324

SEAL

5

7102923

PISTON

6

7108631

SHAFT W/A W/A

7

7102924

TUBE ASSY SERVICE W/Ref. 8-11

8

TUBE NLA - Order Ref. 7

9

54K40224

O-RING Was 25K40224 - B

10

6812170

PLUG W/ O-ring - W/Ref. 11

11

75K3

O-RING

12

6516229

PISTON SEAL

13

54K30210

O-RING Was 25K30210 - B

14

92D14

NUT

15

54K60212

O-RING Was 25K60212 - B

16

73K332

RING

17

7137937

SEAL KIT W/Ref. 3-4, 9, 12-16 Was 7112161 - A
