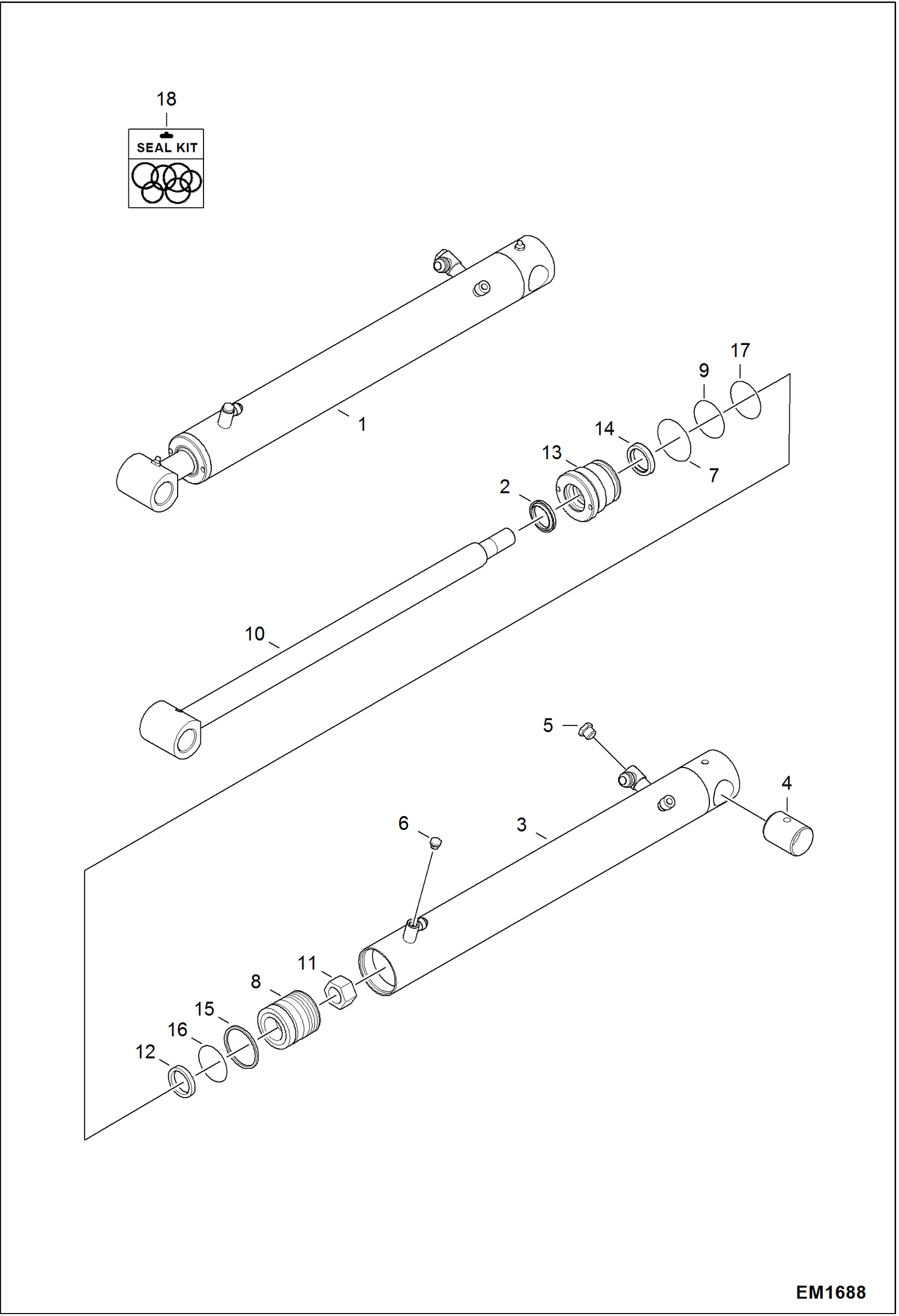

Запчасти Bobcat 319 BOOM CYLINDER HYDRAULIC SYSTEM

1

7102218

CYL ASSY 319 BOOM W/Ref. 2-19

2

6665208

SEAL

3

7102520

TUBE ASSY SERVICE W/Ref. 4-8

4

TUBE NLA - Order Ref. 3

5

6812171

PLUG W/Ref. 8

6

6812170

PLUG W/ O-ring - W/Ref. 8

7

82K140

O-RING Was 58K000140B - B

8

75K3

O-RING

9

73K328

RING

10

7102219

SHAFT W/A W/A

11

92D14

NUT

12

7102511

SPACER

13

7106798

HEAD

14

6667324

SEAL

15

25K60128

O RING 10 Was 54K60128 - A

16

6688068

PISTON ASSY. W/Ref. 17-19

17

25K30126

O RING 10 Was 25K030126B - D

18

6519328

SEAL

19

PISTON NLA - Order Ref. 16

20

7137786

KIT, SEAL W/Ref. 2, 7-9, 11, 14-15, 17-18 Was 6808805 - A

21

BUSHING, WEAR No Longer Part Of 7102218 Was 7102512 - A
