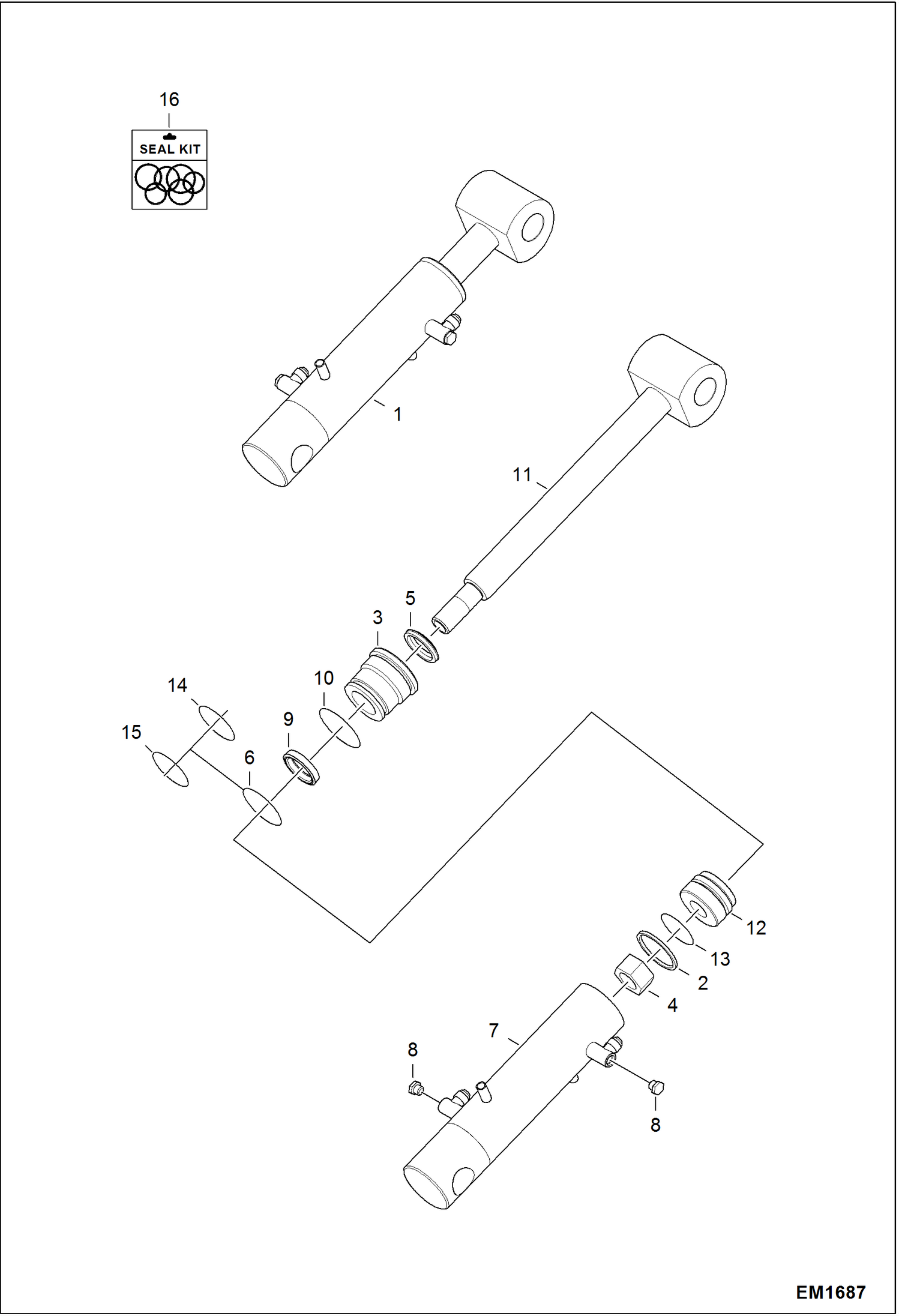

Запчасти Bobcat 319 BLADE CYLINDER HYDRAULIC SYSTEM

1

7103256

CYL ASSY 319 BLADE W/Ref. 2-16

2

6516231

SEAL

3

6539323

HEAD

4

92D14

NUT

5

6665208

SEAL

6

7103259

TUBE ASSY SERVICE W/Ref. 7-10 Was 7103257 - D

7

TUBE NLA - Order Ref. 6

8

6812170

PLUG W/ O-ring - W/Ref. 9

9

75K3

O-RING

10

82K136

O-RING Was 58K136 - B

11

7103258

SHAFT W/A W/A

12

73K224

RING

13

54K30118

O-RING

14

54K40124

O-RING

15

6667324

SEAL

16

6808338

PISTON

17

7137770

KIT, SEAL CYLINDER W/Ref. 2, 4- 5, 9-10, 13-15 Was 6804927 - A
