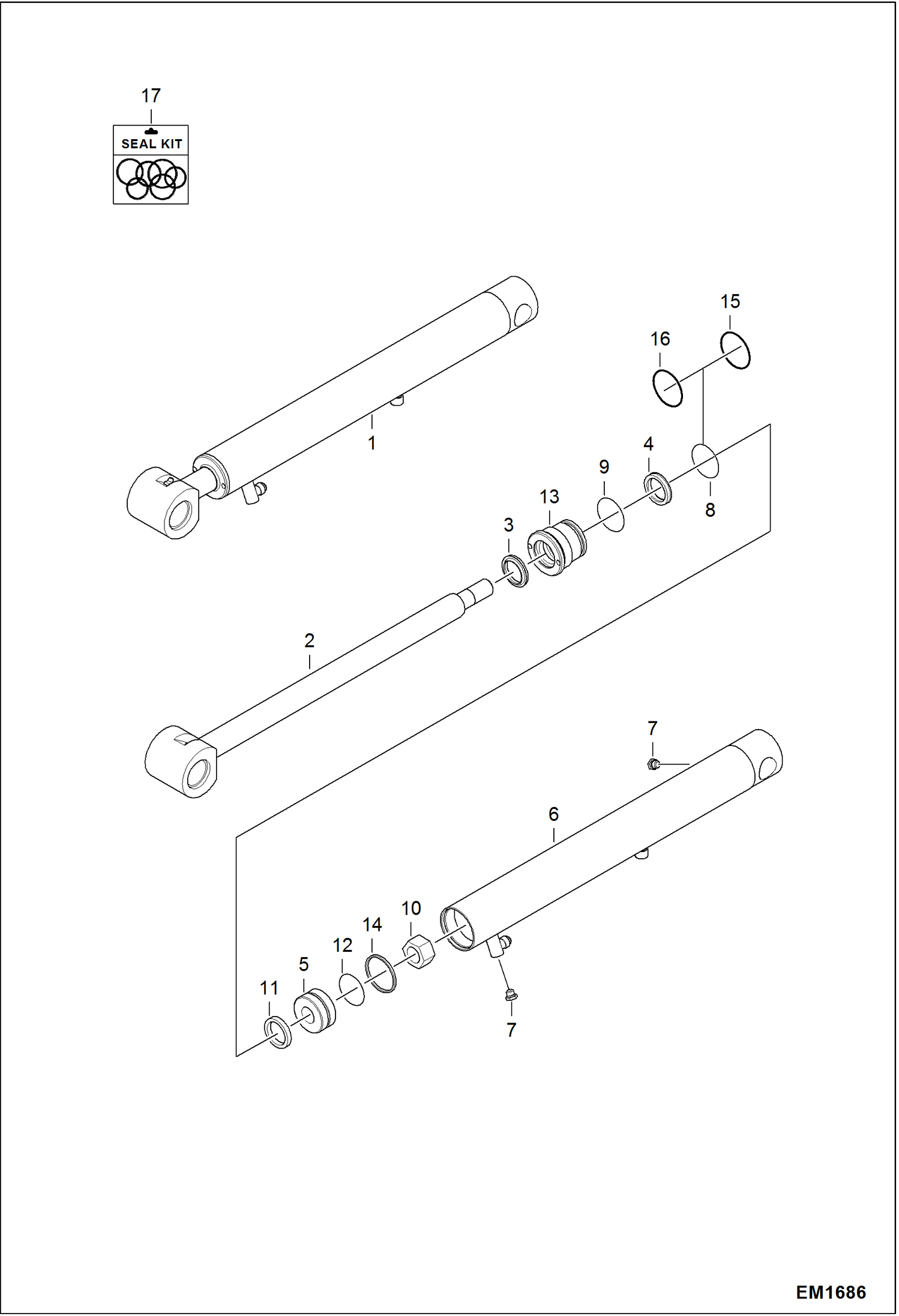

Запчасти Bobcat 319 ARM CYLINDER HYDRAULIC SYSTEM

1

7102505

CYL ASSY 319 ARM W/Ref. 2-18

2

7102506

SHAFT W/A

3

6665208

SEAL

4

6667324

SEAL

5

73K224

RING

6

7102526

TUBE ASSY SERVICE W/Ref. 7-10

7

TUBE NLA - Order Ref. 6

8

6812170

PLUG W/ O-ring - W/Ref. 9

9

75K3

O-RING

10

82K136

O-RING Was 58K136 - B

11

92D14

NUT

12

7102511

SPACER

13

54K40124

O-RING

14

6539323

HEAD

15

6677195

PISTON W/Ref. 16-18

16

6516231

SEAL

17

25K30118

O RING 10 Was 25K030118B - D

18

PISTON NLA - Order Ref. 16

19

7137770

KIT, SEAL CYLINDER W/Ref. 3-5, 9, 11, 13, 16-17 Was 6804927 - A
