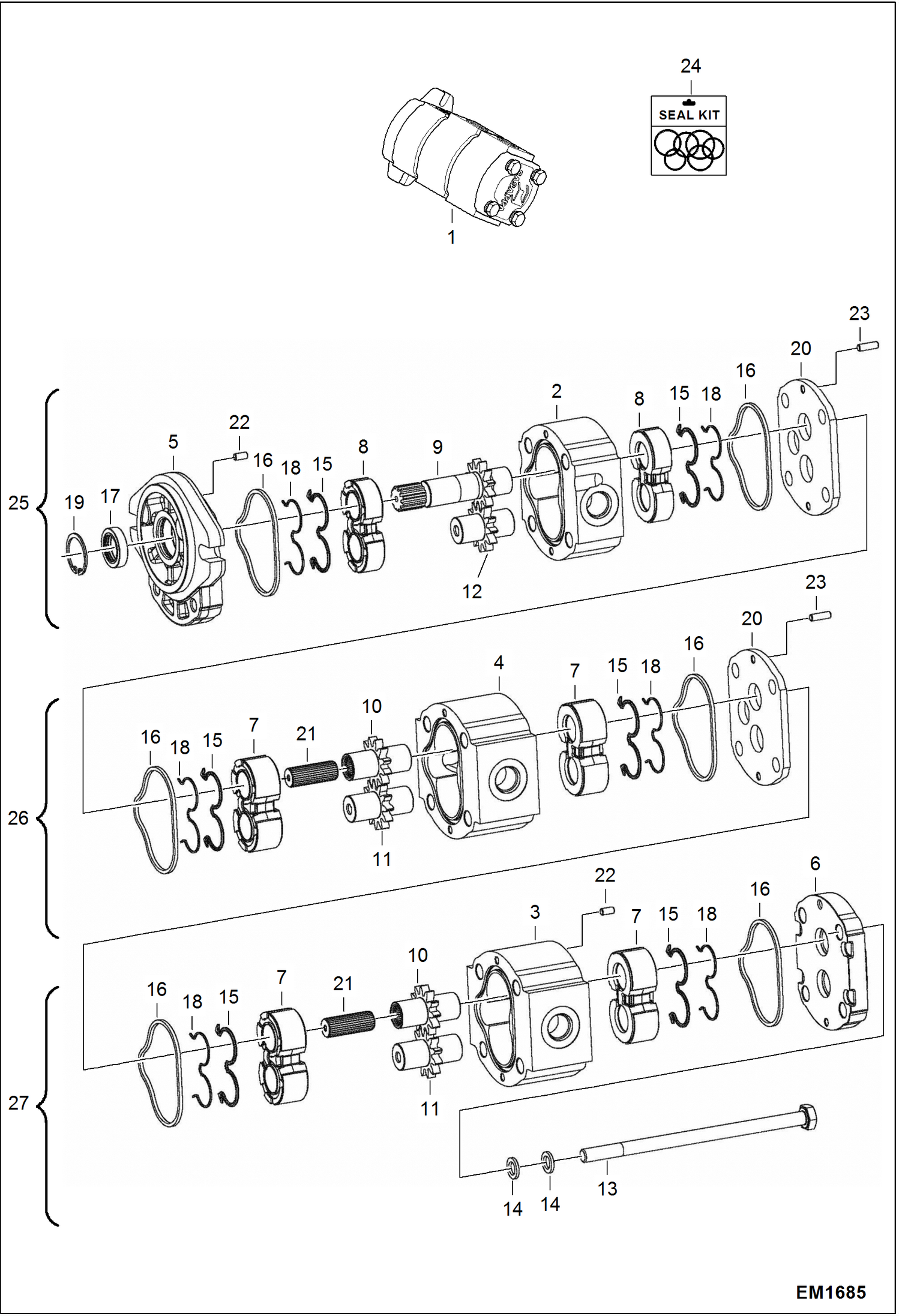

Запчасти Bobcat 319 GEAR PUMP HYDRAULIC SYSTEM

1

6685649

PUMP, GEAR W/Ref. 2-23

2

HOUSING NLA - Order Ref. 1

3

HOUSING NLA - Order Ref. 1

4

HOUSING NLA - Order Ref. 1

5

6679153

COVER

6

6679154

COVER

7

BEARING, MAIN NLA - Order Ref. 1

8

BEARING, MAIN NLA - Order Ref. 1

9

GEAR, DRIVE NLA - Order Ref. 1

10

GEAR, DRIVE NLA - Order Ref. 1

11

6979495

GEAR, DRIVEN

12

6979493

SCREW

13

6979494

BOLT

14

6682332

WASHER

15

SEAL NLA - Order Ref. 24 - Was 6679161 - A

16

SEAL NLA - Order Ref. 24 - Was 6679162 - A

17

6679163

SEAL

18

RING BACK-UP NLA - Order Ref. 24 - Was 6679165 - A

19

6679164

SNAP RING

20

6679870

FLANGE

21

6679167

SHAFT

22

6679168

DOWEL PIN

23

6679492

HANDLE ASSY

24

6979491

KIT, SEAL W/Ref. 15-18 Was 6679491 - D

25

SECTION, FRONT NLA - W/Ref.2, 5, 8-9, 12, 15-20, 22-23

26

SECTION, MIDDLE NLA - W/Ref.4, 7, 10-11, 15-16, 18, 20-21, 23

27

SECTION, REAR NLA - W/Ref.3, 6, 7, 10-11, 15-16, 18, 21-22
